SELECT A DIAGRAM

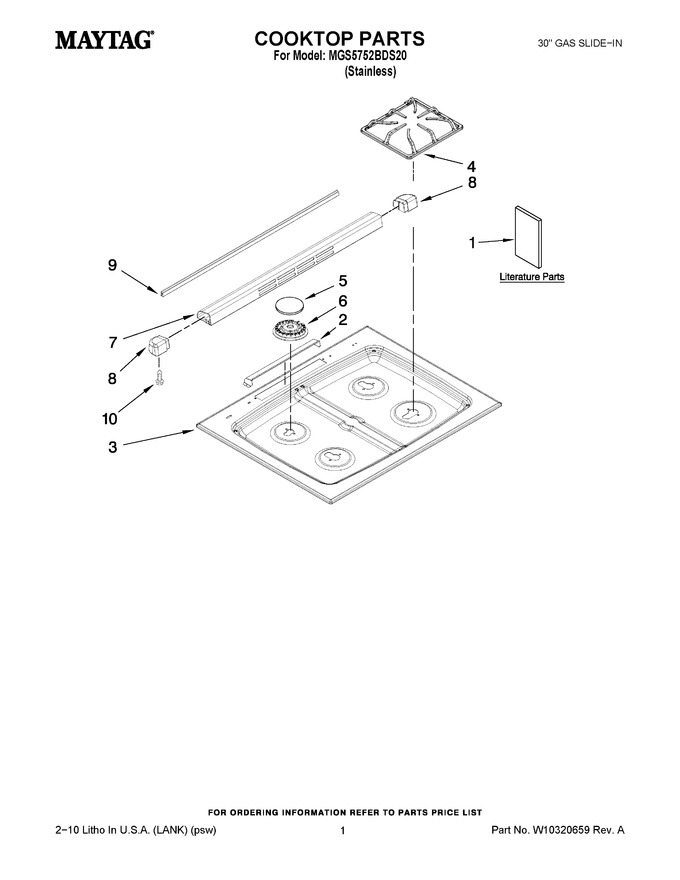

01 - Cooktop Parts


02 - Control Panel Parts


03 - Chassis Parts


04 - Manifold Parts


05 - Door Parts


06 - Drawer And Rack Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8101P667-60		Installation Instructions		Appelez-nous	-
1	8113P762-60		Owners Manual		Appelez-nous	-
1	8119P169-60		Wiring Diagram		Appelez-nous	-
1	9762761		Brochure, Tips Safer Cooking (english)		Appelez-nous	-
1	W10065852		Brochure, Tips Safer Cooking (french)		Appelez-nous	-
2	3601F221-45		Baffle, Vent Cover				$ 28.30
3	2001D315-50		Cooktop (stainless)		Appelez-nous	-
4	7518P249-60		Grate, Burner (4) (black)		Appelez-nous	-
5	WPW10169984		Cap, Burner (black 9k) (semi-rapid)   (Replaces: W10169984)				$ 71.75
5	W10173833		Cap, Burner (black 12k (rapid))		Appelez-nous	-
5	WPW10169983		Cap, Burner (black 14k (turbo))   (Replaces: W10169983)				$ 98.88
5	WPW10169985		Cap, Burner (black 6k (auxi))   (Replaces: W10169985)				$ 66.65
6	WPW10406797		Base, Burner (12k (3))   (Replaces: 8286182)				$ 92.91
6	WPW10406243		Base, Burner (6k Lr (1))   (Replaces: 8286181)			Immediately	$ 39.08
7	7724P197-60		Cover, Vent (black)				$ 99.53
8	7726P397-60		End Cap, Vent (black, Left)		Appelez-nous	-
8	7726P396-60		End Cap, Vent (black, Right)				$ 20.21
9	7201P143-60		Gasket, Door Top				$ 16.81
10	W11233072		Screw (vent End Cap)   (Replaces: 7101P634-60)			Immediately	$ 14.72

    View Diagram in Separate Window       Print Part List
