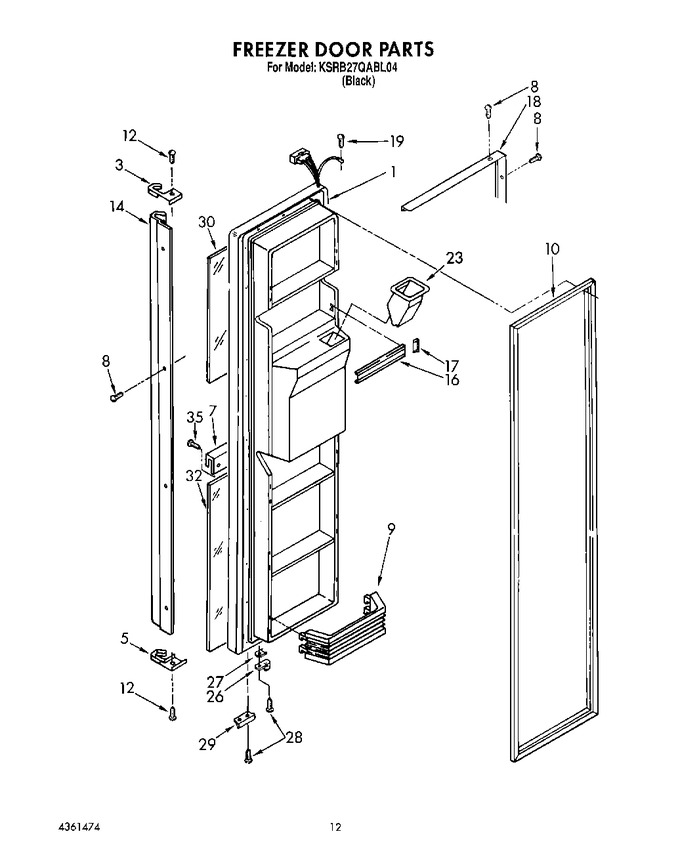

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2161578		Freezer Door		Appelez-nous	-
3	1126073		End Cap		Appelez-nous	-
5	1126074		End Cap		Appelez-nous	-
7	1125980		Trim, Dispenser		Appelez-nous	-
8	489376		Screw		Appelez-nous	-
9	2156016		Shelf Bin (4)		Appelez-nous	-
10	2159074		Door Gasket, Magnetic (service)   (Replaces: 2159078)				$ 325.70
12	489112		Screw		Appelez-nous	-
14	1126070		Handle		Appelez-nous	-
16	2157603		Trim, Door Shelf		Appelez-nous	-
17	WP2156006		End Cap   (Replaces: 2156006)			Immediately	$ 12.79
18	1126072		Trim, Door		Appelez-nous	-
19	WP488234		Screw   (Replaces: 488889)				$ 7.08
23	2156145		Chute, Ice		Appelez-nous	-
26	4318165		Door Closer, Upper Cam   (Replaces: 1115905)			Immediately	$ 29.74
27	WP1104787		Shim, Door Closer   (Replaces: 1104787)				$ 7.96
28	WP489069		Screw   (Replaces: 488938)			Immediately	$ 8.40
29	2157609		Bracket, Door Stop		Appelez-nous	-
30	1126016		Black Glass, Upper		Appelez-nous	-
32	1126017		Black Glass, Lower		Appelez-nous	-
35	489374		Screw		Appelez-nous	-
