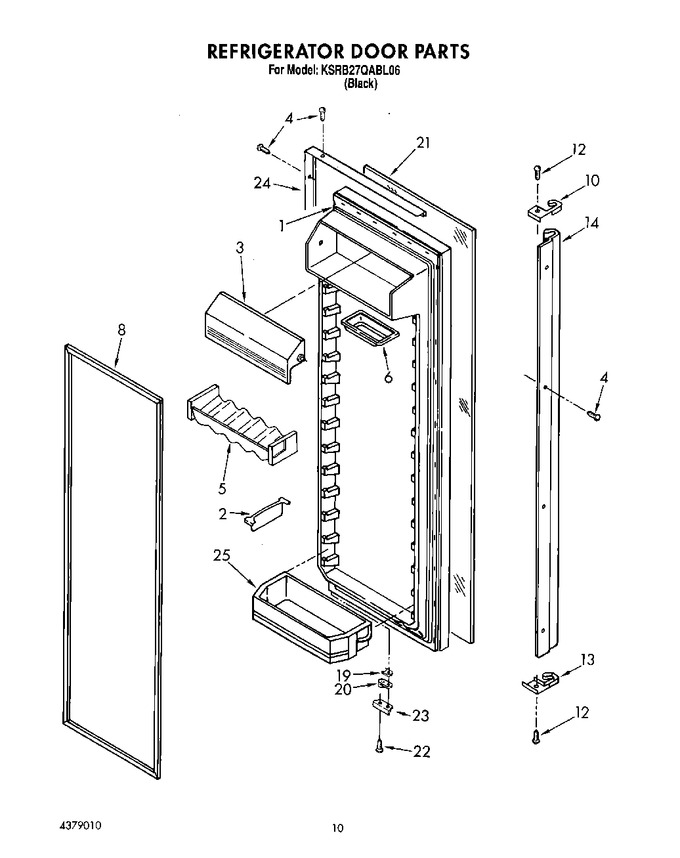

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2161955		Refrigerator Door (includes Item 8)		Appelez-nous	-
2	2161564		Load Lock		Appelez-nous	-
3	1125733		Door, Compartment		Appelez-nous	-
4	489376		Screw		Appelez-nous	-
5	1125981		Holder, Beverage		Appelez-nous	-
6	1125936		Butter, Tray		Appelez-nous	-
8	1125929		Door Gasket, Magnetic (service)		Appelez-nous	-
10	1126074		End Cap		Appelez-nous	-
12	489112		Screw		Appelez-nous	-
13	1126073		End Cap		Appelez-nous	-
14	1126070		Handle		Appelez-nous	-
19	WP1104787		Shim, Door Closer   (Replaces: 1104787)				$ 7.96
20	4318165		Door Closer, Upper Cam   (Replaces: 1115905)			Immediately	$ 29.74
21	1126015		Black Glass		Appelez-nous	-
22	WP489069		Screw   (Replaces: 488938)			Immediately	$ 8.40
23	2157609		Bracket, Door Stop		Appelez-nous	-
24	1117901		Trim, Door		Appelez-nous	-
25	4318417		Black Grille Kit		Appelez-nous	-
25	4211148		White		Appelez-nous	-
25	4211147		Almond		Appelez-nous	-
25	4210348		Black Handle Inserts		Appelez-nous	-
25	4318339		Handle Inserts (black)		Appelez-nous	-
25	4318340		Woodgrain		Appelez-nous	-
25	1126069		Shelf Bin (4)		Appelez-nous	-
25	4318526		Trim Kit Trim Kit Panels		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
