Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 2189690 Refrigerator Door (includes Item 7) Appelez-nous -
2 2171283 Load Lock Appelez-nous -
3 2171078 Door, Compartment Appelez-nous -
4 489481 Screw Appelez-nous -
5 2193409 Beverage Holder Special Order $ 48.13

6 2165792 Tray, Butter Appelez-nous -
7 2159083 Door Gasket, Magnetic (service) Special Order $ 251.49

8 1126074 End Cap Appelez-nous -
10 1126073 End Cap Appelez-nous -
11 1126070 Handle Appelez-nous -
12 1126015 Black Glass Appelez-nous -
13 WP999367 Screw   (Replaces: 489367) Special Order $ 8.56

14 2155331 Bracket, Door Stop Appelez-nous -
15 1117901 Trim, Door Appelez-nous -
16 2171062 Shelf Bin (4) Special Order $ 40.08

17 2159124 Gasket, Door Compartment Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

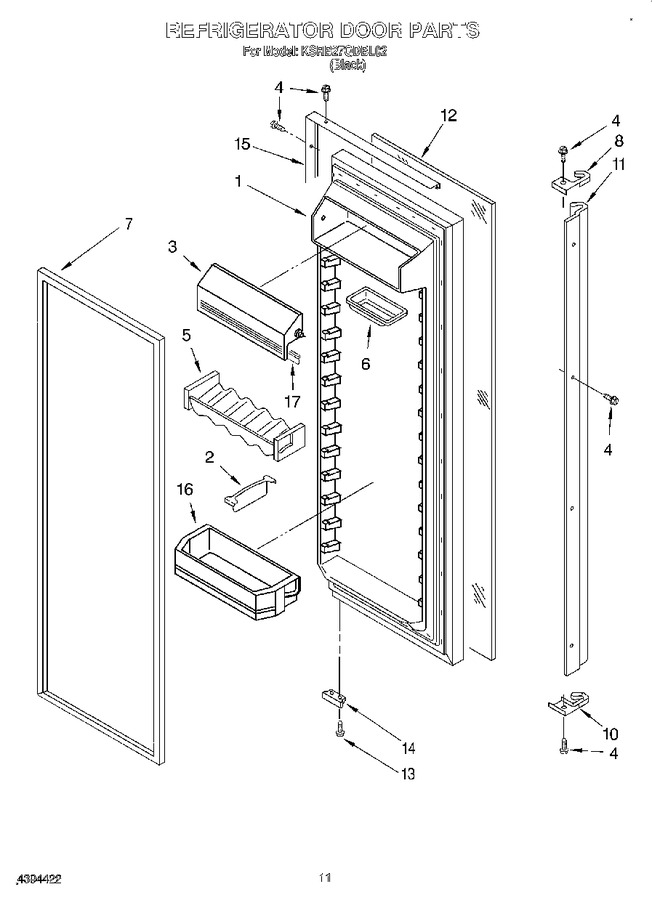

Diagram for KSRB27QDBL02
