Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 2194959 Refrigerator Door (includes Item 7) Appelez-nous -
2 2195497 Load Lock Appelez-nous -
3 2182399 Door, Compartment Appelez-nous -
4 489481 Screw Appelez-nous -
5 2193409 Beverage Holder Special Order $ 48.13

6 2165792 Tray, Butter Appelez-nous -
7 2159083 Door Gasket, Magnetic (service) Special Order $ 251.49

8 2198101 End Cap Appelez-nous -
9 4318165 Door Closer, Upper Cam   (Replaces: 2182132) In-Stock Immediately $ 29.74

10 2198099 End Cap Appelez-nous -
11 2194948 Handle Appelez-nous -
12 2194928 Panel (stainless Steel) Appelez-nous -
13 WP489483 Screw   (Replaces: 489420) Special Order $ 11.41

14 2155331 Bracket, Door Stop Appelez-nous -
15 2194951 Trim, Door Appelez-nous -
16 2171062 Shelf Bin (4) Special Order $ 40.08

17 2159124 Gasket, Door Compartment Appelez-nous -
18 WP3400012 Screw   (Replaces: 3400012) Special Order $ 8.26


    View Diagram in Separate Window     Print Icon   Print Part List

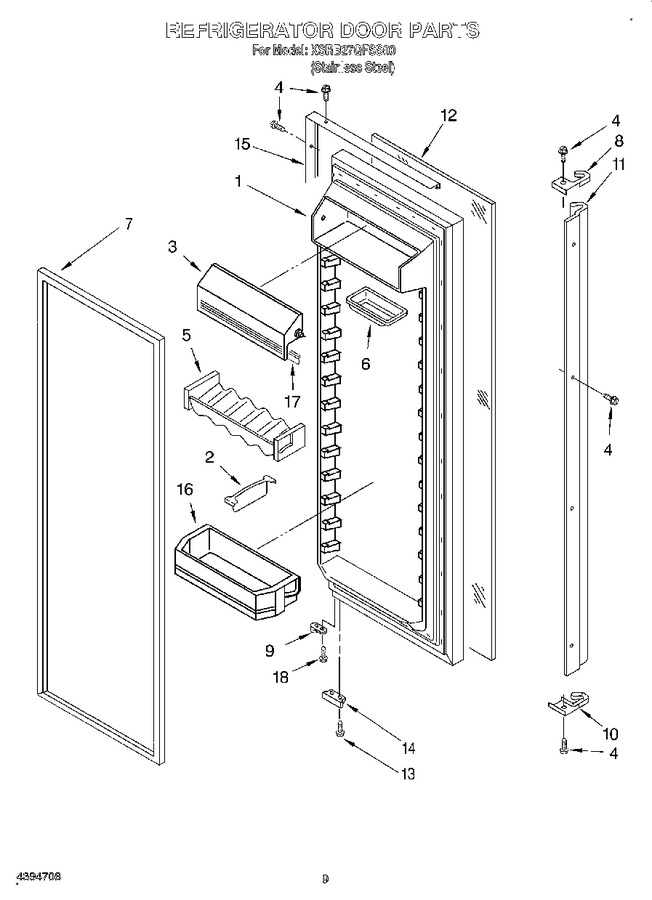

Diagram for KSRB27QFSS00
