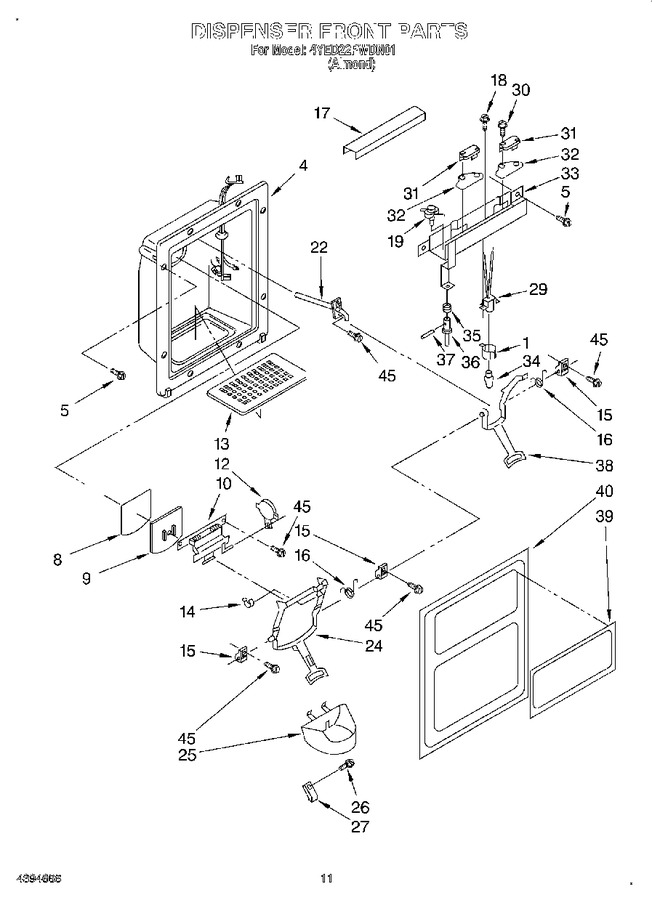

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2166858		Shroud, Bracket		Appelez-nous	-
4	N/A		Housing, Dispenser (not A Serviceable Part)		Appelez-nous	-
5	WP489069		Screw   (Replaces: 489101)			Immediately	$ 8.40
8	987121		Shield, Ice Door				$ 5.91
9	WP2180353		Door, Ice   (Replaces: 2167269)			Immediately	$ 26.83
10	2157650		Door Mechanism Assembly		Appelez-nous	-
12	WP1120581		Mechanism Delay   (Replaces: 1120581)				$ 223.72
13	1126121		Grille, Overflow		Appelez-nous	-
14	987917		Clip, Bearing (2)		Appelez-nous	-
15	983697		Bearing, Lever (3)		Appelez-nous	-
16	983696		Spring, Lever (2)				$ 21.26
17	984494		Shield, Wiring		Appelez-nous	-
18	WP489128		Screw   (Replaces: 488500)				$ 11.40
19	2198157		Switch, Light		Appelez-nous	-
22	WP4388152		Water Fitting Assembly   (Replaces: 2157744)				$ 290.25
24	2177145		Lever, Ice Dispenser		Appelez-nous	-
25	1125977		Guide, Ice		Appelez-nous	-
26	489197		Screw		Appelez-nous	-
27	1125978		Stop, Glass		Appelez-nous	-
29	987265		Socket, Lamp		Appelez-nous	-
30	00488362		Screw   (Replaces: 488362)				$ 144.58
31	WP2162361		Switch   (Replaces: 2162361)			Immediately	$ 28.71
32	984683		Insulator, Switch (2)		Appelez-nous	-
33	1129283		Bracket, Control		Appelez-nous	-
34	989331		Bulb, Light		Appelez-nous	-
35	983986		Spring, Plunger		Appelez-nous	-
36	1116563		Plunger		Appelez-nous	-
37	983987		Pin, Retainer		Appelez-nous	-
38	2177150		Lever, Water Dispenser		Appelez-nous	-
39	2175033		Plaque, Front Cover		Appelez-nous	-
40	2175030		Front Cover, Housing (includes Item 39)		Appelez-nous	-
45	WP3400906		Screw   (Replaces: 489000)				$ 9.05
