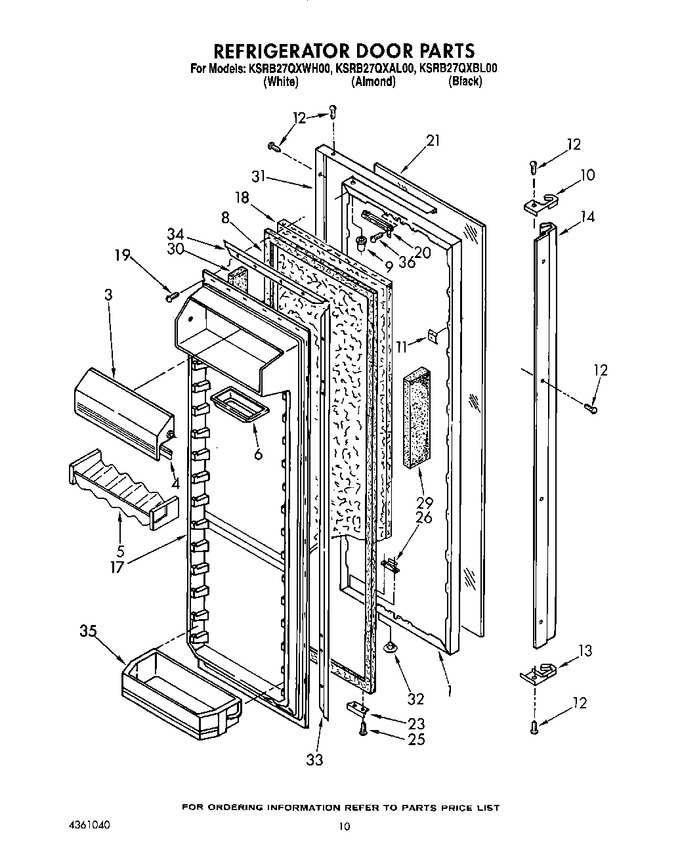

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1117886		Refrigerator Door (white)		Appelez-nous	-
1	1117890		Refrigerator Door (almond)		Appelez-nous	-
1	1117983		Refrigerator Door (black (also Order Item 18))		Appelez-nous	-
3	1125733		Door, Compartment		Appelez-nous	-
4	1125695		Gasket, Utility Door		Appelez-nous	-
5	1125981		Holder, Beverage		Appelez-nous	-
6	1125936		Butter, Tray		Appelez-nous	-
8	1125929		Door Gasket, Magnetic		Appelez-nous	-
9	509929		Cap, Hinge Sleeve		Appelez-nous	-
10	1126074		End Cap, Handle		Appelez-nous	-
11	941242		Screw Anchor (2)		Appelez-nous	-
12	489376		Screw (2)		Appelez-nous	-
13	1126073		End Cap		Appelez-nous	-
14	1126070		Handle		Appelez-nous	-
17	1117906		Panel, Interior Door		Appelez-nous	-
18	876029		Foam Insulation (required When Replacing Exterior Door Panel)		Appelez-nous	-
19	WP489069		Screw, 7 X 1/2 (30)   (Replaces: 489101)			Immediately	$ 7.86
19	WPW10141645		Screw (repair)   (Replaces: 489084)				$ 7.67
20	1117898		Door Closer, Upper Cam		Appelez-nous	-
21	1126015		Black Glass		Appelez-nous	-
23	1123929		Bracket, Door Stop		Appelez-nous	-
25	WP489069		Screw, 8 X 1/2   (Replaces: 488938)			Immediately	$ 7.86
26	1123568		Tap Plate		Appelez-nous	-
29	1126151		Dike, Door Handle Side		Appelez-nous	-
30	1126152		Dike, Door Hinge Side		Appelez-nous	-
31	1117901		Trim, Door		Appelez-nous	-
32	534927		Hole Plug (2)		Appelez-nous	-
33	1118302		Gasket Retainer, Side (2)		Appelez-nous	-
34	1118301		Gasket Retainer, Top & Bottom		Appelez-nous	-
35	1126069		Shelf Bin (4)		Appelez-nous	-
36	WP488729		Screw   (Replaces: 487909)			Immediately	$ 7.79
