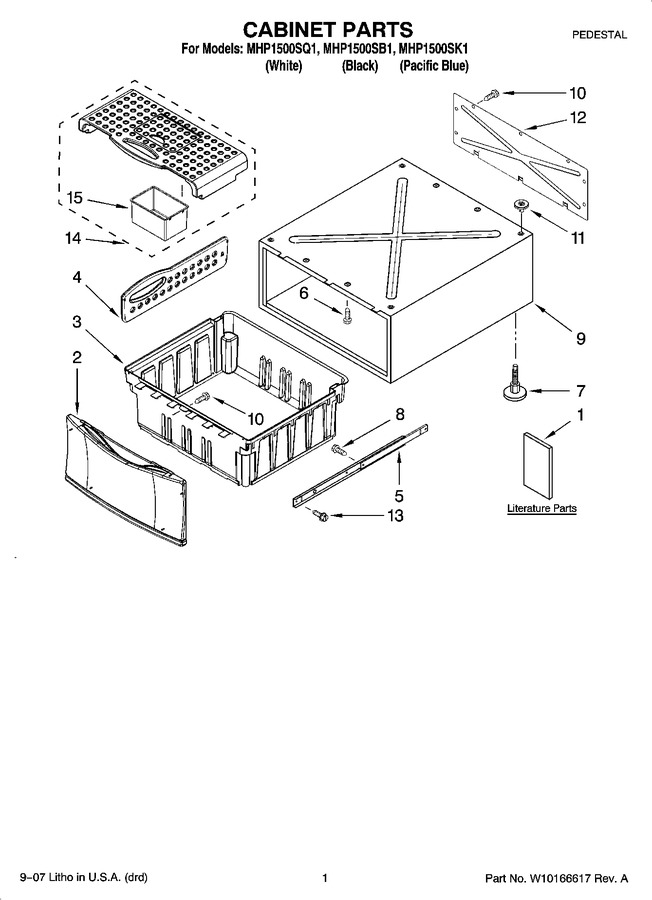

01 - Cabinet Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10163294		Installation Instructions		Appelez-nous	-
2	8578130		Drawer Front Assembly (pacific Blue)		Appelez-nous	-
2	8538032		Drawer Front Assembly (white)		Appelez-nous	-
2	8577949		Drawer Front Assembly (black)		Appelez-nous	-
3	8538028		Drawer Bin		Appelez-nous	-
4	8565576		Divider, Drawer		Appelez-nous	-
5	8538030		Slide Assembly		Appelez-nous	-
6	WPW10346892		Screw   (Replaces: 3400111)			Immediately	$ 7.55
7	WP8563585		Foot Assembly   (Replaces: 8563585)			Immediately	$ 14.76
8	WP3388228		Screw, 6-20 X 3/8   (Replaces: 3400639)				$ 7.30
10	WPW10213953		Screw, 8-18 X 1/2   (Replaces: 8533995)			Immediately	$ 7.55
11	WP8537982		Pad (4)   (Replaces: 8537982)			Immediately	$ 8.69
12	8537939		Panel, Rear		Appelez-nous	-
13	WP9740849		Screw, 8-18 X 7/16   (Replaces: 9740849)				$ 7.30
14	W10164713		Shelf Assembly				$ 55.26
15	8577942		Box, Shelf				$ 69.27
NI	350938		Paint, Pressurized Spray (12 Oz.) (primer, Gray)		Appelez-nous	-
NI	72017		Paint, Touch-up (1/2oz.) White			Immediately	$ 12.30
NI	4396816		Paint, Touch-up (1/2oz.) (pacific Blue)				$ 12.24
NI	350930		Paint, Pressurized Spray (12 Oz.) ( White)			Immediately	$ 40.12
NI	285006		Paint, Pressurized Spray (12 Oz.) (black)				$ 59.89
NI	72032		Paint, Touch-up (1/2oz.) (black)			Immediately	$ 18.69

    View Diagram in Separate Window       Print Part List
