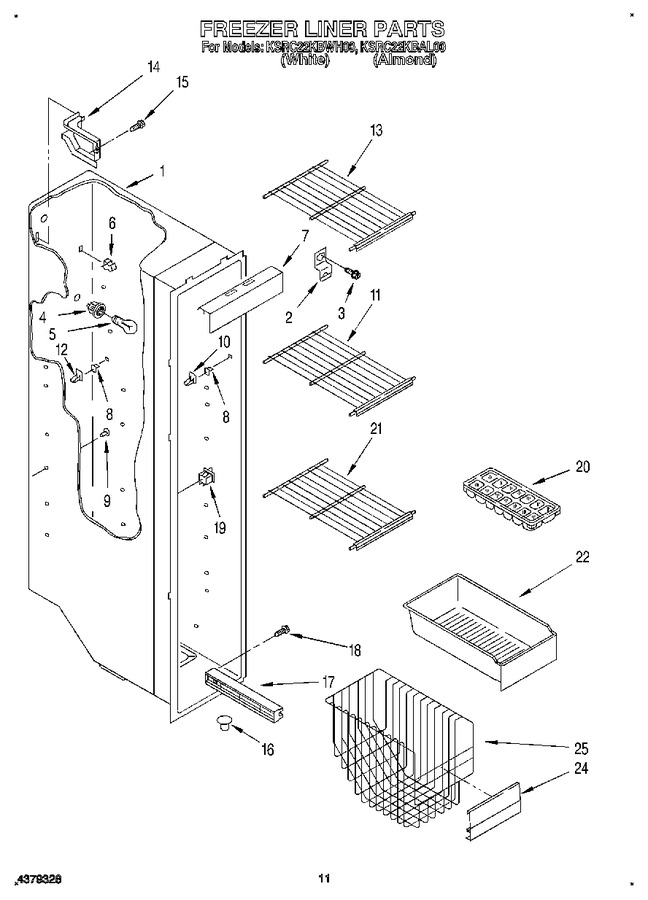

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
2	2155021		Clip, Icemaker		Appelez-nous	-
3	WP489478		Screw   (Replaces: 489242)				$ 8.18
4	WPW10119935		Light Socket   (Replaces: 2155597)				$ 106.16
5	8009		Light Bulb   (Replaces: 527949)			Immediately	$ 18.67
6	2215823		Clip, Air Duct (2)   (Replaces: 842534)				$ 10.94
7	WP2155595		Light Lens   (Replaces: 2155595)				$ 88.36
8	946355		Support, Stud (2)		Appelez-nous	-
9	1110779		Grommet (2)		Appelez-nous	-
10	946356		Stud, Front		Appelez-nous	-
11	1126351		Shelf		Appelez-nous	-
12	1106982		Stud, Rear		Appelez-nous	-
13	1126297		Shelf (2)		Appelez-nous	-
14	2155402		Cover, Wiring		Appelez-nous	-
15	WP488729		Screw   (Replaces: 489176)			Immediately	$ 8.28
16	2155556		Drain Fitting		Appelez-nous	-
17	1126355		Shelf Track (left Side (3))		Appelez-nous	-
17	1126354		Shelf Track (right Side (3))		Appelez-nous	-
18	W11693756		Screw   (Replaces: 487042)			Immediately	$ 14.76
19	W11384469		Switch, Rocker Arm   (Replaces: 1108112)			Immediately	$ 39.09
20	WP841180A		Ice Tray (4)   (Replaces: 841180)			Immediately	$ 47.84
21	1126350		Shelf		Appelez-nous	-
22	W11625904		Container   (Replaces: 1125561)				$ 67.83
24	1126356		Front, Basket		Appelez-nous	-
25	1126352		Basket, Lower		Appelez-nous	-
