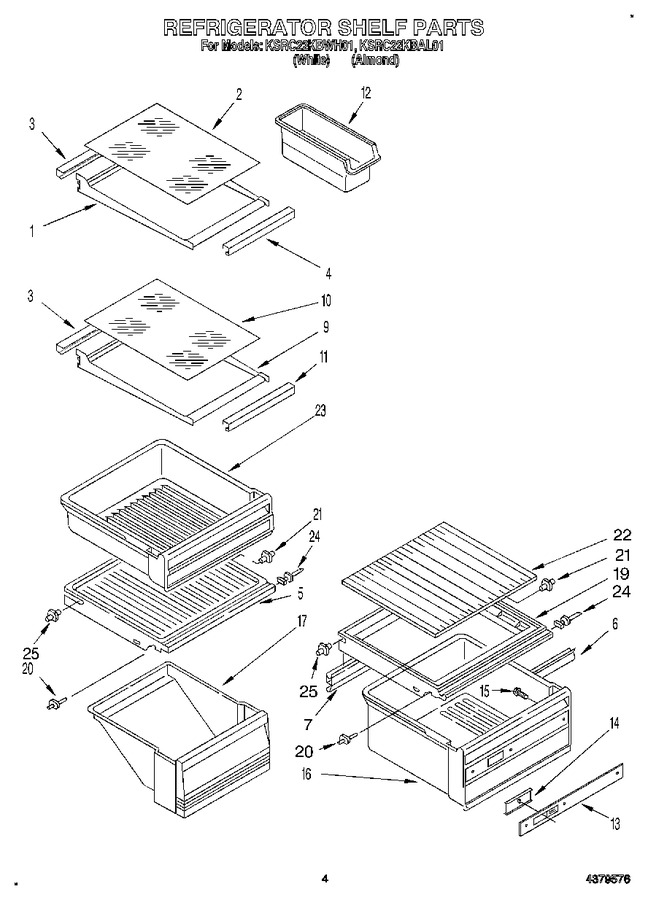

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1125597		Shelf Assembly, Cantilever (2)		Appelez-nous	-
2	1125593		Glass, Shelf		Appelez-nous	-
3	1125594		Retainer, Glass		Appelez-nous	-
4	1125786		Gasket, Front		Appelez-nous	-
5	WP2148298		Cover, Meat Pan   (Replaces: 2168886)				$ 183.32
6	1115291		Gasket, Cover (front)		Appelez-nous	-
7	1121385		Gasket, Cover (rear)		Appelez-nous	-
9	1126272		Pan Shelf & Slide Assembly		Appelez-nous	-
10	1126279		Glass, Shelf		Appelez-nous	-
11	1126281		Gasket (front)		Appelez-nous	-
12	WP982704		Container   (Replaces: 2161264)				$ 32.55
13	2168759		Front, Crisper		Appelez-nous	-
14	1125853		Slide, Humidity		Appelez-nous	-
15	489162		Screw (3)		Appelez-nous	-
16	2168851		Pan, Crisper		Appelez-nous	-
17	2168884		Meat Pan		Appelez-nous	-
19	WP1126289		Crisper Cover   (Replaces: 1126289)				$ 190.80
20	WP2149540		Shelf Stud   (Replaces: 2149540)				$ 10.96
21	4388538		Shelf Stud   (Replaces: 1110718)			Immediately	$ 32.85
22	1126293		Glass, Crisper		Appelez-nous	-
23	2168885		Bin, Utility		Appelez-nous	-
24	4388538		Shelf Stud   (Replaces: 2147997)			Immediately	$ 32.85
25	1115290		Shelf Stud				$ 7.61
