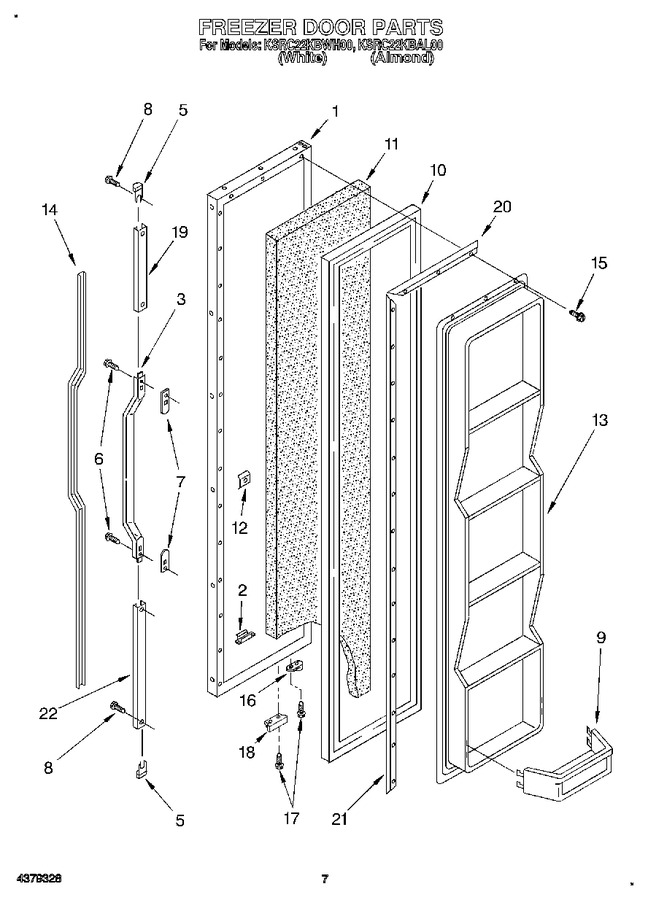

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4362048		Freezer Door Panel (also Order Item No.11) (almond)		Appelez-nous	-
1	4362047		Freezer Door Panel (also Order Item No.11) (white)		Appelez-nous	-
2	2155335		Tap, Plate		Appelez-nous	-
3	1107215		Handle Assembly		Appelez-nous	-
5	1107341		End Cap (2)		Appelez-nous	-
6	WP488729		Screw   (Replaces: 487909)			Immediately	$ 7.79
7	1107651		Spacer, Handle		Appelez-nous	-
8	489075		Screw		Appelez-nous	-
9	1117928		Shelf Bin (4)		Appelez-nous	-
10	2188405A		Door Gasket, Magnetic   (Replaces: 1125926)				$ 351.08
11	876029		Foam Insulation (required When Replacing Exterior Door Panel)		Appelez-nous	-
12	941242		Screw Anchor (2)		Appelez-nous	-
13	1129244		Panel, Interior Door		Appelez-nous	-
14	1117950		Insert, Handle (white)		Appelez-nous	-
14	1117951		Insert, Handle (almond)		Appelez-nous	-
15	WP489069		Screw   (Replaces: 489101)			Immediately	$ 7.86
16	4318165		Door Closer, Upper Cam   (Replaces: 2155313)			Immediately	$ 27.36
17	WP999367		Screw   (Replaces: 489367)				$ 7.86
18	2155332		Bracket, Door Stop		Appelez-nous	-
19	1107241		Retainer, Insert		Appelez-nous	-
20	1117767		Gasket Retainer, Top & Bottom		Appelez-nous	-
21	1117766		Gasket Retainer, Side (2)				$ 36.55
22	1117953		Retainer, Insert		Appelez-nous	-
