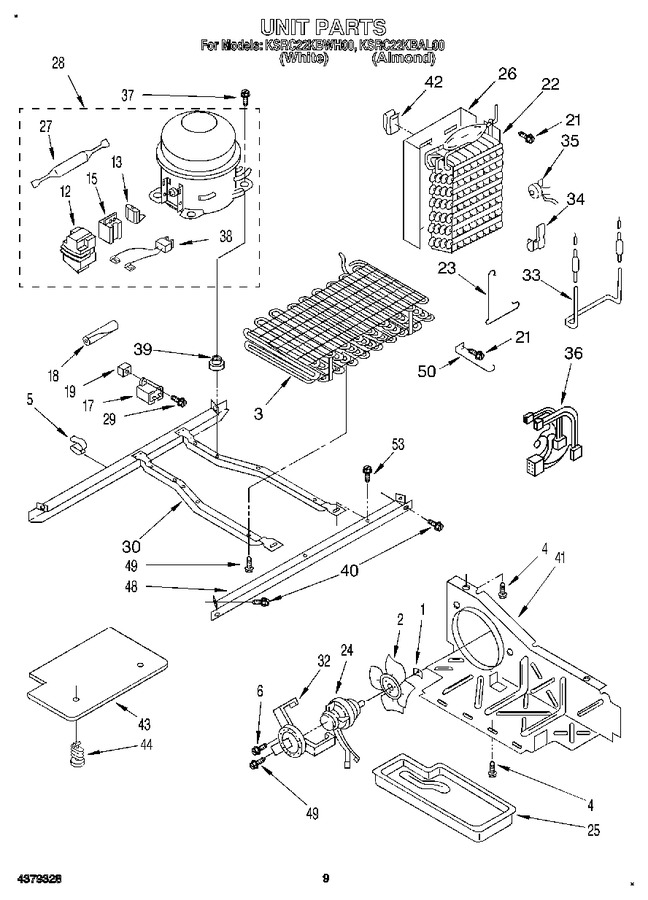

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP486692		Speed Nut   (Replaces: 486692)				$ 8.43
2	1108179		Fan, Blade				$ 49.54
3	2164513		Condenser Assembly		Appelez-nous	-
4	WP489464		Screw   (Replaces: 489337)			Immediately	$ 8.38
5	2155658		Clip, Wire		Appelez-nous	-
6	681390		Screw   (Replaces: 489019)				$ 13.71
12	WP2162358		Cover   (Replaces: 2162358)				$ 95.29
13	4387535		Overload (includes Relay)   (Replaces: 2159596)				$ 191.05
15	N/A		Relay (see Overload)		Appelez-nous	-
17	2169137		Capacitor		Appelez-nous	-
18	W11751592		Sleeve   (Replaces: 2161302)			Immediately	$ 21.32
19	509812		Screw Grommet		Appelez-nous	-
21	WP489478		Screw   (Replaces: 489242)				$ 8.18
22	WP2188822		Evaporator   (Replaces: 2164518)			Immediately	$ 356.84
23	2161324		Clip, Defrost Heater		Appelez-nous	-
24	833697		Motor, Fan   (Replaces: 2162431)			Immediately	$ 88.15
25	2154114		Tray, Evaporator		Appelez-nous	-
26	2149293		Shield, Heat		Appelez-nous	-
27	W10843121		Drier   (Replaces: 2164409)			Immediately	$ 57.13
28	W10309990		Compressor (includes Items 12, 13, 15, 17, 27 & 38) (also Order)   (Replaces: 2169426)			Immediately	$ 632.81
28	876765		Tube Kit			Immediately	$ 90.65
29	W11693756		Screw   (Replaces: 488687)			Immediately	$ 14.76
30	2304903		Unit Mounting Frame   (Replaces: 2160500)				$ 244.68
32	2162062		Bracket, Fan Motor		Appelez-nous	-
33	2161322		Heater, Defrost				$ 82.12
34	2161330		Clip		Appelez-nous	-
35	WPW10225581		Defrost, Bi-metal   (Replaces: 2161331)			Immediately	$ 50.77
36	2153994		Wire Assembly Intermediate		Appelez-nous	-
37	876811		Screw   (Replaces: 489373)				$ 7.79
38	WP2172890		Wire, Connector   (Replaces: 1127675)				$ 8.51
39	876811		Grommet (4)   (Replaces: 1100826)				$ 7.79
40	489340		Screw		Appelez-nous	-
41	W10896764		Baffle, Air   (Replaces: 2149128)				$ 101.20
42	2155547		Clip, Heat Shield		Appelez-nous	-
43	2160505		Unit Cover, Bottom		Appelez-nous	-
44	489396		Clip				$ 11.26
48	2149717		Unit Mounting Rail		Appelez-nous	-
49	488624		Screw		Appelez-nous	-
50	1105612		Guard, Fan				$ 42.61
53	876764		Valve, Access(3/16``)			Immediately	$ 95.92
53	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 110.51
53	WP489427		Screw   (Replaces: 489339)				$ 7.84
53	978026		Valve, Access (5/16``)			Immediately	$ 134.49
53	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64
53	978028		Valve, Access (1/2)		Appelez-nous	-
53	978029		Valve Access (5/8``)				$ 93.85
53	978030		Valve, Access (3/4``)				$ 137.25
