01 - Top And Cabinet Parts


02 - Door And Latch Parts


03 - Control Panel Parts


04 - Dispenser Parts


05 - Tub And Basket Parts

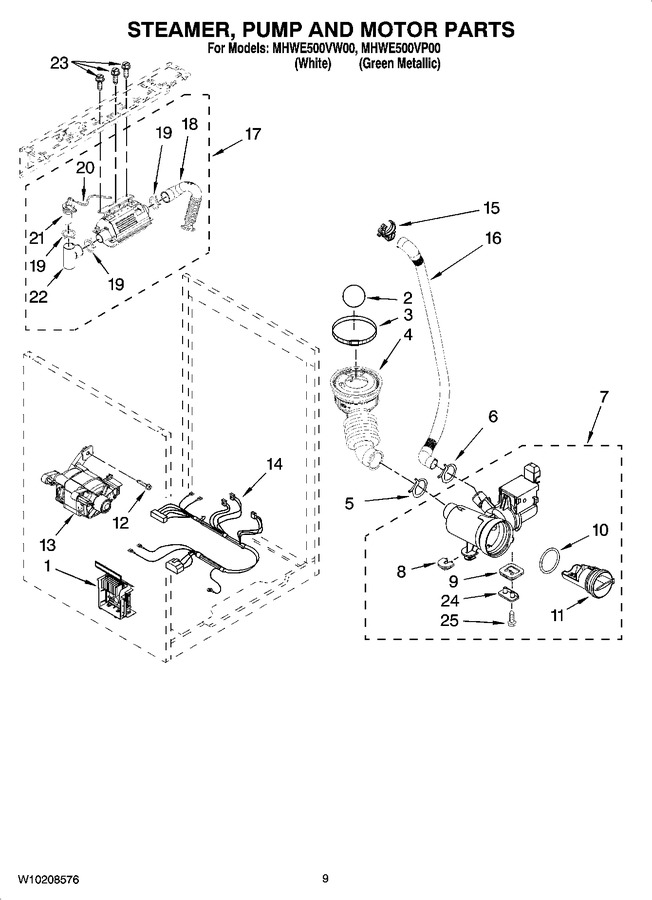

06 - Steamer, Pump And Motor Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10384846		Motor Control Unit   (Replaces: W10015480)				$ 367.47
2	W10121657		Ball   (Replaces: W10003330)				$ 20.03
3	WP696392		Clamp   (Replaces: 8540008)				$ 8.12
4	WPW10467168		Hose, Tub To Pump   (Replaces: W10003240)			Immediately	$ 38.31
5	WP616099		Clamp   (Replaces: 370448)			Immediately	$ 7.81
6	WP356138		Clamp   (Replaces: 356138)			Immediately	$ 8.52
7	WPW10730972		Pump (complete)   (Replaces: W10117829)			Immediately	$ 177.38
8	W10034820		Foot, Rubber (slider)				$ 12.79
9	W10034830		Foot, Rubber (lock)		Appelez-nous	-
10	WPW10730972		Seal, Filter Cap   (Replaces: 8540025)			Immediately	$ 177.38
11	WPW10730972		Cap, Filter   (Replaces: 8540996)			Immediately	$ 177.38
12	8540134		Bolt, Motor				$ 13.45
13	WPW10140583		Motor   (Replaces: W10140583)				$ 350.43
14	W10004420		Harness, Motor		Appelez-nous	-
15	8182209		Retainer, Drain Hose   (Replaces: W10003290)				$ 20.57
16	WPW10003250		Drain Hose (inner)   (Replaces: W10003250)			Immediately	$ 34.59
17	W10172726		Steamer, Complete Assembly (includes Item 20 On Page 7)		Appelez-nous	-
18	W10156132		Hose, Steamer/tub				$ 83.19
19	WP285655		Clamp, Hose (3)   (Replaces: W10156063)			Immediately	$ 8.39
20	W10156133		Hose, Overflow				$ 80.37
21	W10156250		Cap, Siphon				$ 86.08
22	W10156251		Tank, Siphon				$ 78.00
23	WP489442		Screw, 8-18 X 5/8   (Replaces: W10015090)			Immediately	$ 10.94
24	8540033		Cap, Lock Foot				$ 17.98
25	8533964		Screw, 10-16 X 1.25 (2)				$ 12.00
NI	W10135699		Affresh Odor Remover			Immediately	$ 20.92
NI	W10218248		Paint, Touch-up (1/2oz.) (emerald Green Metallic)		Appelez-nous	-
NI	W10218249		Paint, Touch-up (1/2oz.) (evergreen Gloss)				$ 11.29
NI	285863		Drain Extension			Immediately	$ 32.43
NI	4396899		Rear Guard		Appelez-nous	-
NI	38005		Stack Kit				$ 45.05
NI	72017		Paint, Touch-up (1/2oz.) White			Immediately	$ 12.30
