SELECT A DIAGRAM

01 - Cabinet


02 - Refrigerator Liner


03 - Refrigerator Shelf


04 - Refrigerator Door


05 - Freezer Door


06 - Unit


07 - Air Flow


08 - Freezer Liner


09 - Control, Lit/optional

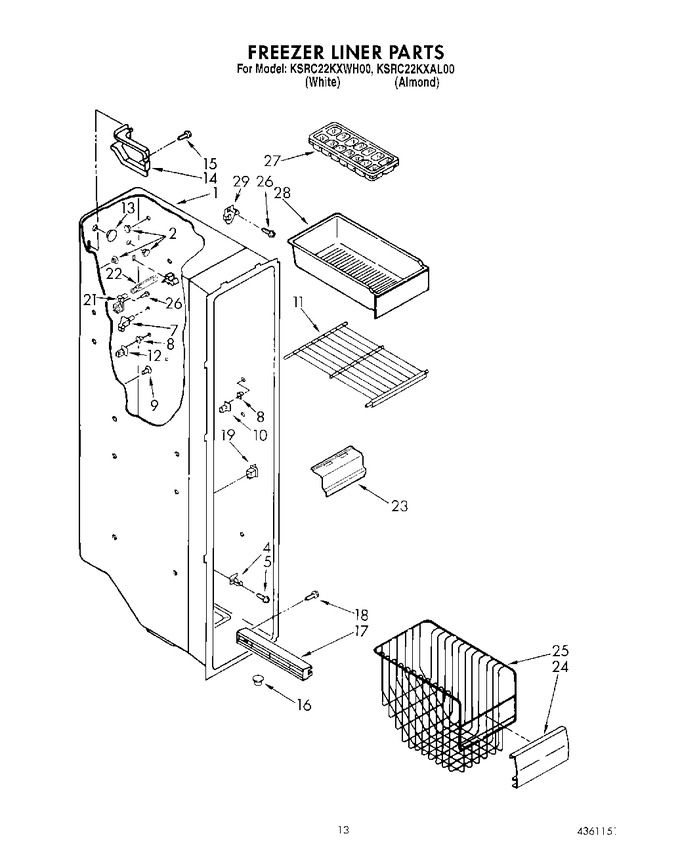

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
2	WP941839		Hole Plug (3)   (Replaces: 941839)				$ 8.03
4	1108436		Evaporator, Support		Appelez-nous	-
5	WP489478		Screw, 8 X 1/2   (Replaces: 489242)				$ 8.18
7	1115317		Support, Stud (4)		Appelez-nous	-
8	946355		Support, Stud (2)		Appelez-nous	-
9	1110779		Grommet (2)		Appelez-nous	-
10	946356		Stud, Front		Appelez-nous	-
11	1126297		Shelf (2)		Appelez-nous	-
11	1126350		Shelf (3)		Appelez-nous	-
12	1106982		Stud, Rear		Appelez-nous	-
13	655411		Hole Plug		Appelez-nous	-
14	1129915		Cover, Wiring		Appelez-nous	-
15	WP488729		Screw   (Replaces: 489176)			Immediately	$ 8.28
16	942768		Fitting, Drain		Appelez-nous	-
17	1126354		Shelf Track (right Side (3))		Appelez-nous	-
17	1126355		Shelf Track (left Side (3))		Appelez-nous	-
18	W11693756		Screw   (Replaces: 487042)			Immediately	$ 14.76
19	W11384469		Switch, Rocker Arm   (Replaces: 1108112)			Immediately	$ 39.09
21	1108630		Socket Assembly		Appelez-nous	-
22	WP548049		Bulb   (Replaces: 548049)				$ 90.67
23	1108445		Lens, Light		Appelez-nous	-
24	1126352		Front, Basket		Appelez-nous	-
25	1126356		Basket, Lower		Appelez-nous	-
26	WP489478		Screw   (Replaces: 489242)				$ 8.18
27	WP841180A		Tray, Ice Cube   (Replaces: 841180)			Immediately	$ 47.84
28	W11625904		Pan, Ice Cube   (Replaces: 1125561)				$ 67.83
29	2155021		Clip		Appelez-nous	-
NI	718257		Screw   (Replaces: 489100)		Appelez-nous	-
NI	2215823		Clip, Air Duct (2)   (Replaces: 842534)				$ 10.94

    View Diagram in Separate Window       Print Part List
