01 - Top And Cabinet Parts


02 - Door And Latch Parts

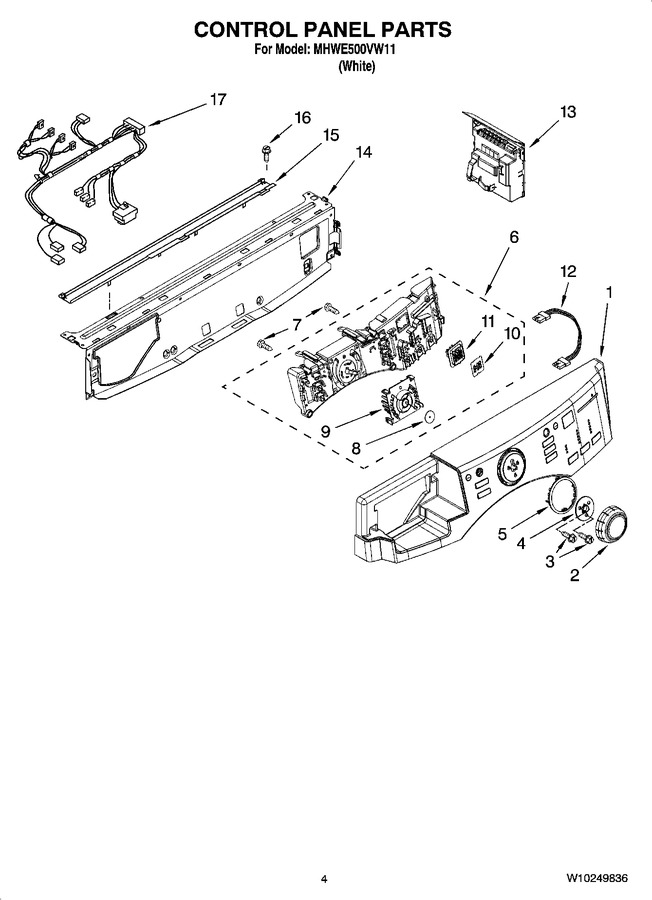

03 - Control Panel Parts


04 - Dispenser Parts


05 - Tub And Basket Parts


06 - Steamer, Pump And Motor Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10248113		Panel, Control (includes Item 5)		Appelez-nous	-
2	W10248116		Knob, Control		Appelez-nous	-
3	W11230114		Screw   (Replaces: 8181758)				$ 13.94
4	W10248117		Bushing, Knob		Appelez-nous	-
5	W10248122		Light Guide, Cycle				$ 13.47
6	W10248065		User Interface				$ 0.01
7	881661		Screw		Appelez-nous	-
8	W10248120		Seal, User Interface		Appelez-nous	-
9	W10248121		Light Guide- Cycle, Internal				$ 12.06
10	W10248118		Foil-display		Appelez-nous	-
11	W10248119		Light Guide- Display		Appelez-nous	-
12	W10157884		Harness, Wiring (user Interface)				$ 147.59
13	W10248067		Microcomputer, Machine Control				$ 305.80
14	W10059240		Brace, Front Top   (Replaces: 8183203)				$ 204.59
15	WP8183204		Channel, Water   (Replaces: 8183204)				$ 171.96
16	WP488729		Screw   (Replaces: 8181756)			Immediately	$ 8.28
17	W10157883		Harness, Wiring (upper Main)				$ 112.69
