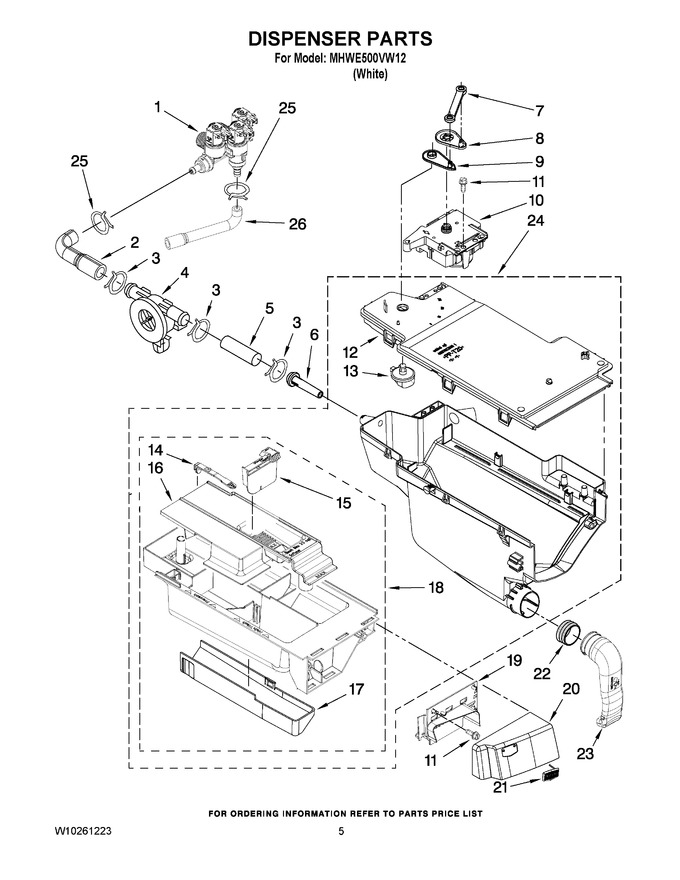

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10247305		Valve, Inlet   (Replaces: W10247305)				$ 229.72
2	8183182		Hose, Flowmeter (l-shaped)				$ 39.45
3	WP489503		Clamp   (Replaces: 8181751)			Immediately	$ 10.75
4	WPW10110225		Flowmeter   (Replaces: 8181696)			Immediately	$ 109.03
5	8183180		Hose, Inlet Nozzle		Appelez-nous	-
6	WP8183181		Nozzle, Inlet   (Replaces: 8183181)				$ 90.30
7	WP8183183		Lever, Water Distribution   (Replaces: 8183183)				$ 90.23
8	WP8183184		Cam, Actuator   (Replaces: 8183184)				$ 90.23
9	WPW10161052		Lever, Connection   (Replaces: W10161052)			Immediately	$ 7.19
10	WPW10352973		Actuator   (Replaces: 8183186)			Immediately	$ 134.69
11	WP8540282		Screw   (Replaces: 8181661)				$ 11.56
12	W10164400		Plate, Distribution				$ 27.70
13	WP8181712		Nozzle, Distribution   (Replaces: 8181712)				$ 89.11
14	8181721		Hook, Drawer				$ 37.02
15	WPW10121596		Separator, With Selection Slider   (Replaces: W10121596)				$ 73.07
16	W10121598		Siphon, Bleach/softener				$ 86.12
17	W10003140		Cover, Detergent Drawer   (Replaces: 8183179)				$ 85.63
18	WPW10015190		Drawer, Detergent (complete)   (Replaces: 8183173)				$ 117.01
19	W10248111		Bracket, Handle Fixation				$ 45.38
20	W10248110		Handle, Drawer (includes Items 19 & 21)		Appelez-nous	-
21	W10732500		Medallion   (Replaces: W10248108)				$ 43.27
22	WP8181747		Seal   (Replaces: 8181747)			Immediately	$ 26.03
23	WPW10005300		Tube, Dispenser To Bellow   (Replaces: 8181718)			Immediately	$ 21.19
24	W10157886		Dispenser, Complete (includes Item 9)		Appelez-nous	-
25	WP489503		Clamp, Hose   (Replaces: 8181754)			Immediately	$ 10.75
26	WP8181710		Hose, Inlet Valve To Vent Pipe   (Replaces: 8181710)				$ 24.59
