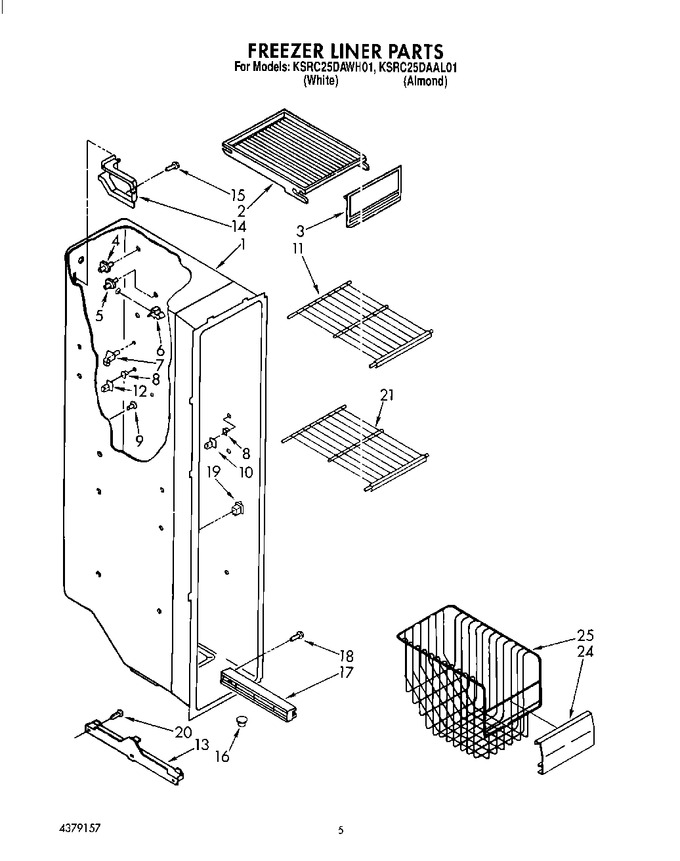

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
2	1125824		Shelf, Top		Appelez-nous	-
3	1125657		Door, Ice Compartment		Appelez-nous	-
4	4388538		Shelf Stud (4)   (Replaces: 1110718)			Immediately	$ 32.85
5	1115386		Shelf Stud (4)		Appelez-nous	-
6	2215823		Clip, Air Duct (2)   (Replaces: 842534)				$ 10.94
7	1115317		Support, Stud (4)		Appelez-nous	-
8	946355		Support, Stud (8) (right Side)		Appelez-nous	-
9	1110779		Grommet (2)		Appelez-nous	-
10	946356		Stud, Front (3)		Appelez-nous	-
11	2155683		Shelf		Appelez-nous	-
12	1106982		Stud, Rear (3)		Appelez-nous	-
13	W10845585		Slide, Ice Container (left Side)   (Replaces: 1119237)				$ 139.41
13	W10845583		Slide, Ice Container (right Side)   (Replaces: 1119293)				$ 130.12
14	2155572		Cover, Wiring		Appelez-nous	-
15	WP488729		Screw   (Replaces: 489176)			Immediately	$ 8.28
16	2155556		Drain Fitting		Appelez-nous	-
17	1126355		Shelf Track (left Side (3))		Appelez-nous	-
17	1126354		Shelf Track (right Side (3))		Appelez-nous	-
18	W11693756		Screw   (Replaces: 487042)			Immediately	$ 14.76
19	W11457217		Switch, Rocker Arm   (Replaces: 1115373)				$ 40.09
20	718257		Screw   (Replaces: 489100)		Appelez-nous	-
21	1125609		Shelf (2)		Appelez-nous	-
24	1125612		Front, Basket		Appelez-nous	-
25	2152102		Basket, Lower		Appelez-nous	-
