01 - Top And Cabinet Parts


02 - Door And Latch Parts


03 - Control Panel Parts


04 - Dispenser Parts


05 - Tub And Basket Parts


06 - Pump And Motor Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart

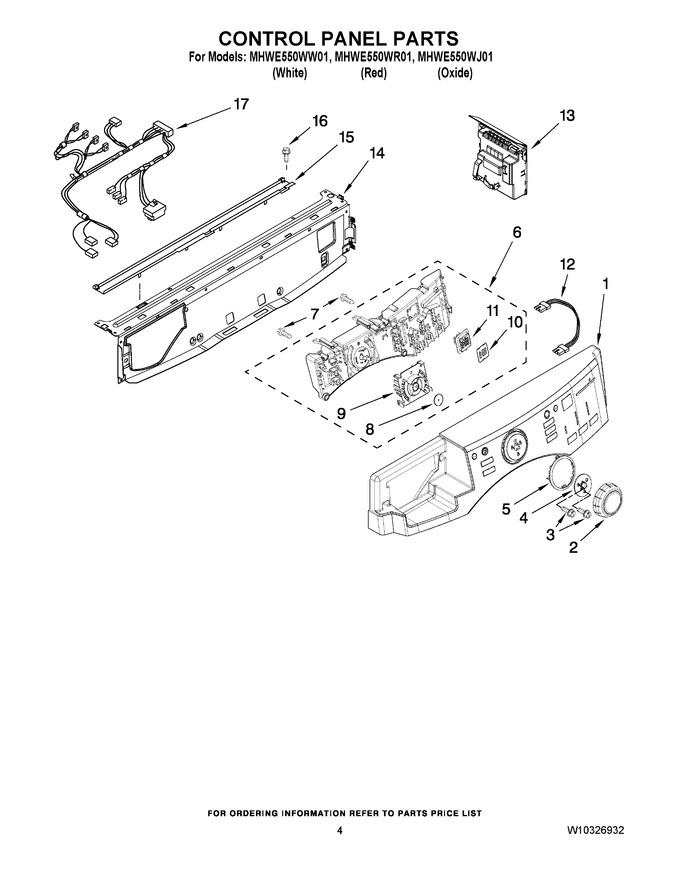

1	W10296318		Panel-control (white)				$ 307.19
1	W10296319		Panel-control (red)		Appelez-nous	-
1	W10296320		Panel-control (oxide)				$ 372.06
2	W10248116		Knob, Control (includes Item 5)		Appelez-nous	-
3	W11230114		Screw   (Replaces: 8181758)				$ 13.94
4	W10248117		Bushing, Knob		Appelez-nous	-
5	W10248122		Light Guide, Cycle				$ 13.47
6	W10283515		User Interface				$ 304.63
7	WP8540282		Screw   (Replaces: 8181661)				$ 12.14
8	W10248120		Seal, User Interface		Appelez-nous	-
9	W10248121		Light Guide- Cycle, Internal				$ 12.06
10	W10248118		Foil-display		Appelez-nous	-
11	W10248119		Light Guide- Display		Appelez-nous	-
12	W10852624		Harness, Wiring (user Interface)   (Replaces: W10283465)				$ 179.53
13	W10326991		Microcomputer, Machine Control				$ 339.70
14	W10059240		Brace, Front Top   (Replaces: 8183203)				$ 204.59
15	WP8183204		Channel, Water   (Replaces: 8183204)				$ 171.96
16	WP488729		Screw   (Replaces: 8181756)			Immediately	$ 8.28
17	W10283457		Harness, Wiring (upper Main)				$ 257.38
