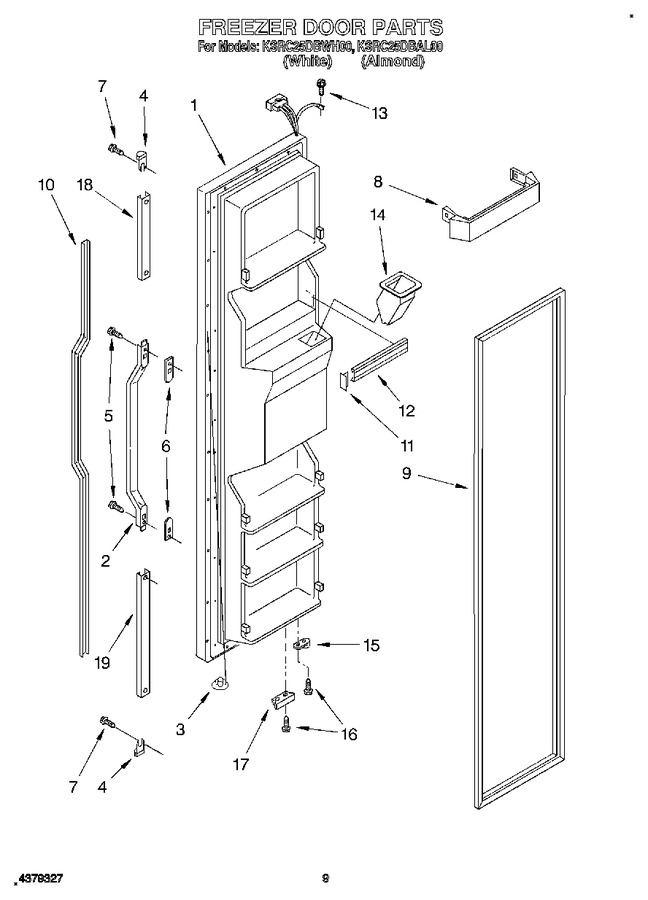

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2157782		Freezer Door (includes No.9 And Dispenser Front Parts) (white)		Appelez-nous	-
1	2157783		Freezer Door (includes No.9 And Dispenser Front Parts) (almond)		Appelez-nous	-
2	1107215		Handle Assembly		Appelez-nous	-
3	2151653		Hole Plug		Appelez-nous	-
4	1107341		End Cap (2)		Appelez-nous	-
5	WP488729		Screw   (Replaces: 487909)			Immediately	$ 8.28
6	1107651		Spacer, Handle		Appelez-nous	-
7	489075		Screw		Appelez-nous	-
8	2156016		Shelf Bin (4)		Appelez-nous	-
9	2159074		Door Gasket, Magnetic (service)   (Replaces: 2159078)				$ 325.70
10	1117949		Insert, Handle (almond)		Appelez-nous	-
10	1117948		Insert, Handle (white)		Appelez-nous	-
11	WP2156006		Plug-trim   (Replaces: 2156006)			Immediately	$ 12.79
12	2157603		Trim, Door Shelf		Appelez-nous	-
13	WP488234		Screw   (Replaces: 489422)				$ 7.08
14	2156146		Chute, Ice		Appelez-nous	-
15	4318165		Door Closer, Upper Cam   (Replaces: 2155313)			Immediately	$ 29.74
16	WP999367		Screw   (Replaces: 489367)				$ 8.56
17	2155332		Bracket, Door Stop		Appelez-nous	-
18	1107243		Retainer, Insert		Appelez-nous	-
19	1117952		Retainer, Insert		Appelez-nous	-
