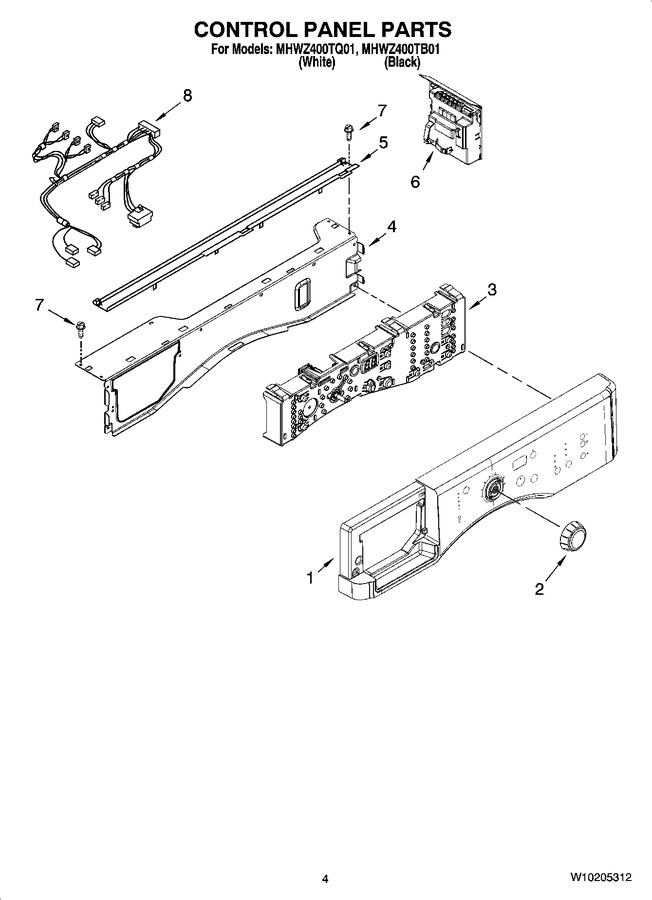

03 - Control Panel Parts


04 - Dispenser Parts


05 - Pump And Motor Parts


06 - Tub And Basket Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10117405		Panel, Control (white)				$ 224.49
1	W10119011		Panel, Control (black)		Appelez-nous	-
2	W10112899		Knob, Control (elephant/chrome)				$ 112.97
2	WPW10119050		Knob, Control (chrome)   (Replaces: W10119050)				$ 56.35
3	W10117418		User Interface				$ 276.81
4	W10846488		Brace, Top Front   (Replaces: W10161692)				$ 92.31
5	8540722		Channel, Water				$ 33.36
6	W10160259		Microcomputer, Machine Control		Appelez-nous	-
7	WP489442		Screw, 8-18 X 5/8   (Replaces: W10015090)			Immediately	$ 11.49
8	W10184855		Harness, Wiring (main)				$ 121.73
