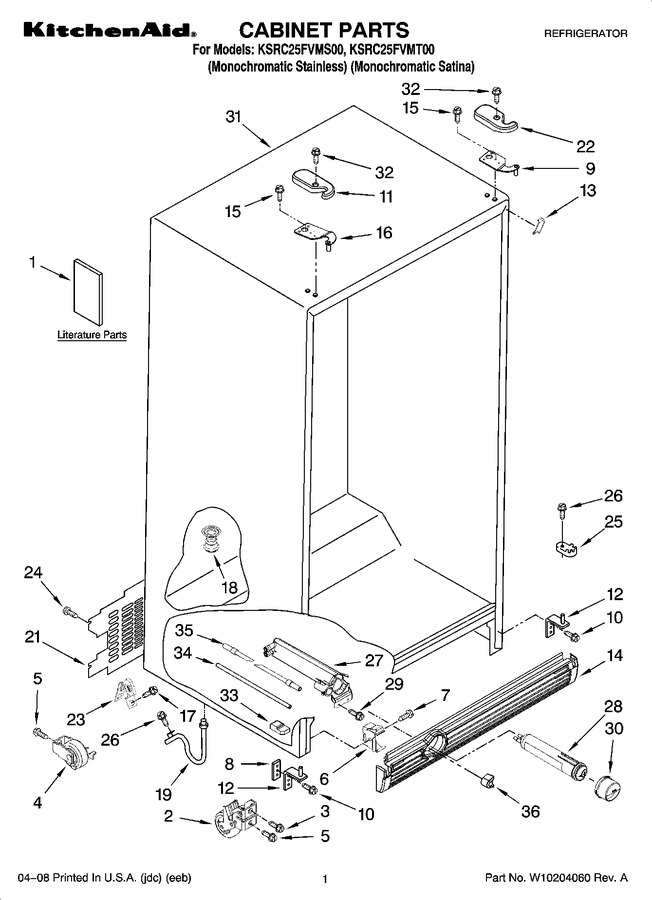

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10162446 | Use & Care Guide |
|
- | |||||
| 1 | 2220407 | Modular Icemaker Service Sheet |
|
- | |||||
| 1 | W10194134 | Energy Guide |
|
- | |||||
| 1 | W10180857 | Service & Wiring Sheet |
|
- | |||||
| 2 | 2174748 | Front Roller (2) |
|
- | |||||
| 3 | W10850698 | Screw (Replaces: 3400517) |
|
$ 14.42 | |||||
| 4 | WPW10250570 | Roller (rear) (2) (Replaces: 2196236) |
|
$ 42.18 | |||||
| 5 | WP489427 | Screw (Replaces: 489427) |
|
$ 7.84 | |||||
| 6 | WP2155013 | Clip, Grille (Replaces: 2155013) |
|
Immediately | $ 8.11 | ||||
| 7 | WP489478 | Screw (Replaces: 489478) |
|
$ 8.18 | |||||
| 8 | WP2181911 | Shim (Replaces: 2156056) |
|
$ 34.87 | |||||
| 9 | WP2203771 | Hinge Top (rc) (Replaces: 2203771) |
|
$ 103.13 | |||||
| 10 | WP489497 | Screw (Replaces: 3400113) |
|
Immediately | $ 29.09 | ||||
| 11 | W10138584 | Hinge Cover, Fc (apollo Grey) |
|
$ 15.17 | |||||
| 12 | W10138965 | Hinge Bottom (rc) |
|
$ 93.91 | |||||
| 12 | 2303141 | Hinge Bottom (fc) |
|
$ 261.00 | |||||
| 13 | W10143043 | Filler, Wrapper (apollo Grey) |
|
- | |||||
| 14 | WPW10184890 | Grille (apollo Grey) (Replaces: W10184890) |
|
$ 166.64 | |||||
| 15 | WP489497 | Screw (Replaces: 489497) |
|
Immediately | $ 29.09 | ||||
| 16 | WP2203770 | Hinge Top (fc) (Replaces: 2203770) |
|
$ 100.30 | |||||
| 17 | WP489464 | Screw (Replaces: 489464) |
|
Immediately | $ 8.38 | ||||
| 18 | W11566763 | Drain Fitting (Replaces: 2304888) |
|
Immediately | $ 53.45 | ||||
| 19 | W11512417 | Tube, Extension (Replaces: 2304937) |
|
$ 36.53 | |||||
| 21 | WP2188755 | Cover, Unit (Replaces: 2188735) |
|
$ 142.71 | |||||
| 22 | W10138579 | Hinge Cover, Rc (apollo Grey) |
|
$ 35.68 | |||||
| 23 | 549193 | Clamp-service Cord |
|
$ 14.06 | |||||
| 24 | WPW10141645 | Screw (Replaces: 489084) |
|
$ 8.05 | |||||
| 25 | WPW10329686 | Door Closer, Lower Cam (2) (Replaces: 2155311) |
|
Immediately | $ 5.90 | ||||
| 26 | WP489483 | Screw (Replaces: 489483) |
|
$ 11.41 | |||||
| 27 | WPW10121138 | Housing, Water Filter (Replaces: 2260507) |
|
Immediately | $ 112.91 | ||||
| 28 | EDR3RXD1B | Water Filter (Replaces: 4396841) |
|
Immediately | $ 49.99 | ||||
| 29 | WP489500 | Screw (Replaces: 489500) |
|
$ 8.17 | |||||
| 30 | WP2260518MG | Cap, Water Filter (midnight Grey) (Replaces: 2260502MG) |
|
$ 58.83 | |||||
| 32 | WP8281227 | Screw (Replaces: 8281227) |
|
$ 10.96 | |||||
| 33 | 2260519 | Block, Housing Support |
|
- | |||||
| 34 | WPW10350006 | Tube, Filter Outlet (Replaces: 2255012) |
|
$ 121.32 | |||||
| 35 | 8201597 | Tube, Filter Inlet (Replaces: 2319867) |
|
Immediately | $ 83.70 | ||||
| 36 | 2260503MG | Button, Water Filter (midnight Grey) |
|
$ 28.36 |
