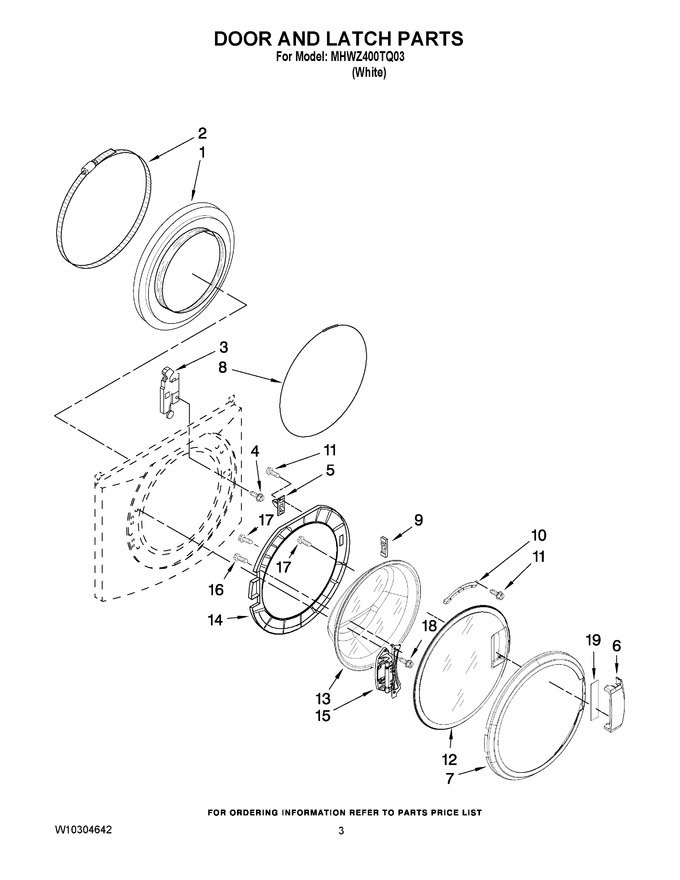

02 - Door And Latch Parts


03 - Control Panel Parts


04 - Dispenser Parts


05 - Pump And Motor Parts


06 - Tub And Basket Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10381562		Bellow   (Replaces: W10290499)			Immediately	$ 178.80
2	WP8540108		Clamp, Bellow To Tub   (Replaces: 8540108)			Immediately	$ 25.64
3	WPW10253483		Lock, Door   (Replaces: W10253483)			Immediately	$ 222.33
4	WP8540725		Screw   (Replaces: 8540725)				$ 8.52
5	WP8540221		Hook, Door   (Replaces: 8540221)			Immediately	$ 12.39
6	WPW10112925		Handle, Door (includes Item 19)   (Replaces: W10117475)			Immediately	$ 34.83
7	WPW10112914		Trim Ring, Outer Door   (Replaces: W10112914)				$ 270.89
8	W11032829		Clamp, Bellow To Front Panel   (Replaces: W10277975)			Immediately	$ 22.30
9	WP8540115		Clamp, Support   (Replaces: 8540115)				$ 7.30
10	W11665946		Clamp, Glass (2)   (Replaces: 8540114)				$ 21.90
11	W11230114		Screw   (Replaces: 8540513)				$ 13.94
12	W10119007		Frame, Door Front Assembly				$ 198.69
13	WPW10388315		Glass, Door   (Replaces: W10205548)				$ 345.28
14	W10240989		Frame, Door Back Support				$ 118.22
15	8540416		Hinge, Door		Appelez-nous	-
16	WP8181660		Screw   (Replaces: 8540284)				$ 7.30
17	WP8540282		Screw   (Replaces: 8540282)				$ 12.14
18	WP489442		Screw   (Replaces: W10015090)			Immediately	$ 11.49
19	WPW10112927		Pad, Door Handle   (Replaces: W10112927)				$ 8.31
