SELECT A DIAGRAM

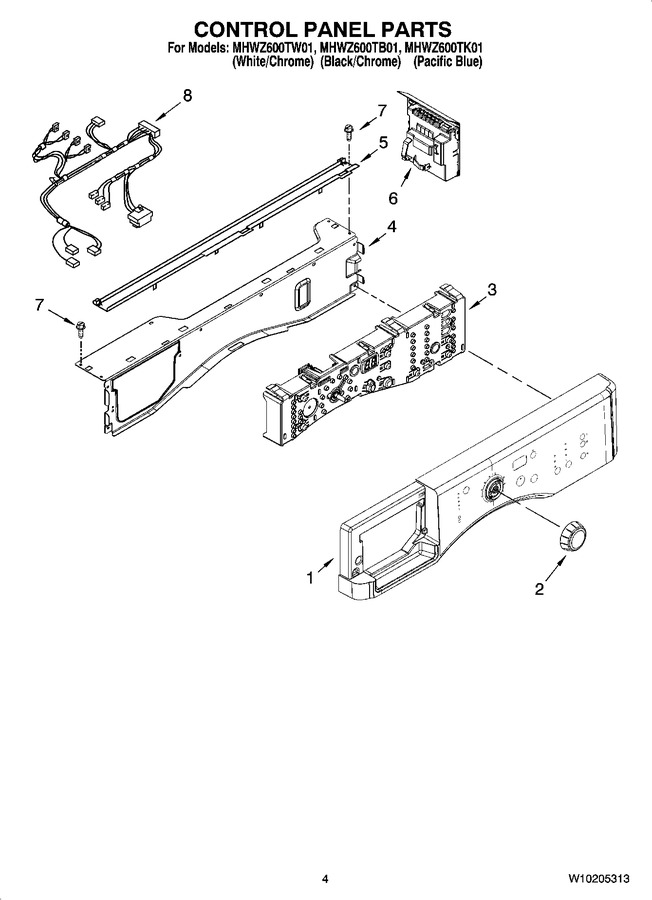

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10117409 | Panel, Control (white) |
|
$ 221.91 | |||||
| 1 | WPW10117413 | Panel, Control (black) (Replaces: W10117413) |
|
$ 326.82 | |||||
| 1 | W10119012 | Panel, Control (pacific Blue) |
|
- | |||||
| 2 | WPW10119050 | Knob, Control (Replaces: W10119050) |
|
$ 53.67 | |||||
| 3 | W10117419 | User Interface |
|
$ 262.26 | |||||
| 4 | W10846488 | Brace, Top Front (Replaces: 8540558) |
|
$ 85.04 | |||||
| 5 | 8540722 | Channel, Water |
|
$ 33.36 | |||||
| 6 | WPW10525358 | Microcomputer, Machine Control (Replaces: W10160260) |
|
$ 327.06 | |||||
| 7 | WP489442 | Screw, 8-18 X 5/8 (Replaces: W10015090) |
|
Immediately | $ 10.94 | ||||
| 8 | W10184856 | Harness, Wiring (main) |
|
$ 224.02 |
