SELECT A DIAGRAM

01 - Cabinet Liner And Door Parts


02 - Evaporator, Ice Cutter Grid And Water Parts


03 - Pump Parts


04 - Control Panel Parts

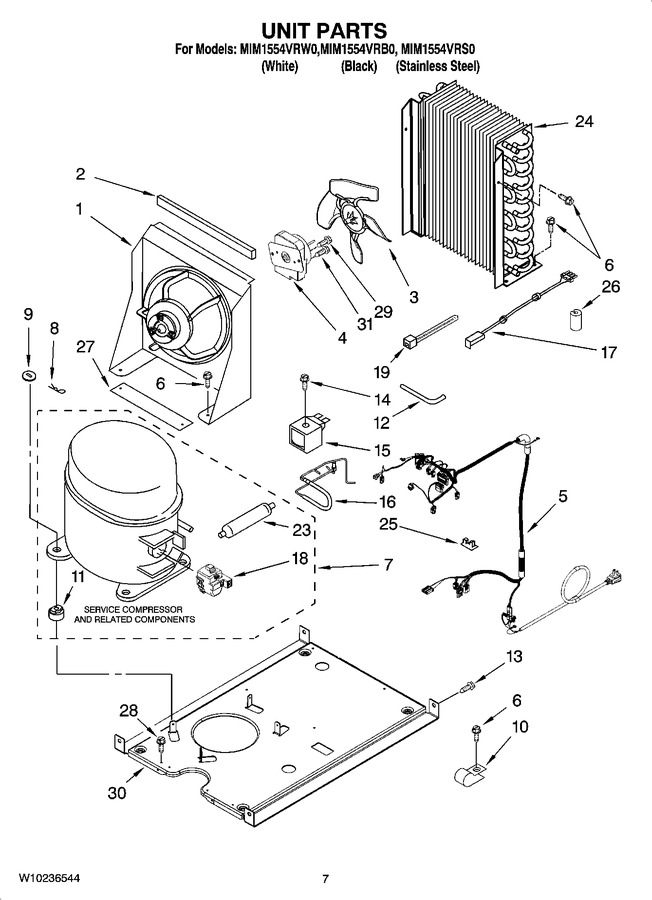

05 - Unit Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP2185532		Bracket, Fan Mtg.   (Replaces: 2185532)				$ 102.18
2	2185675		Pad, Foam		Appelez-nous	-
3	WP2188935		Blade, Fan   (Replaces: 2188935)			Immediately	$ 97.29
4	W10124096		Motor & Mounting Plate Assembly   (Replaces: 2315558)			Immediately	$ 112.20
5	W10139121		Wiring Harness, Complete Unit (includes Power Cord				$ 226.12
6	WP489069		Screw   (Replaces: 304392)			Immediately	$ 8.40
7	WPW10605286		Compressor (includes Illus. 11 & 23)   (Replaces: W10136195)				$ 773.42
8	A201435		Clip, Mounting		Appelez-nous	-
9	A201441		Shim (4)				$ 9.25
10	2185960		Clamp		Appelez-nous	-
11	WP4387558		Grommet (4) (service)   (Replaces: 4387558)				$ 7.30
11	2185965		Grommet (4) (production)   (Replaces: 2217318)		Appelez-nous	-
12	W10528572		Tube, Process   (Replaces: 2208415)				$ 38.79
13	WP999367		Screw   (Replaces: 489423)				$ 8.56
14	489472		Screw		Appelez-nous	-
15	759112		Coil, Solenoid				$ 72.80
16	W11748341		Hot Gas Valve   (Replaces: 2313806)			Immediately	$ 101.88
17	WP2187629		Wiring Harness, Condenser Fan   (Replaces: 2187629)				$ 132.58
18	W10136197		Start Relay & Overload Combo Device				$ 76.43
19	WPW10339879		Strap   (Replaces: 2155774)				$ 8.30
23	W10843121		Drier (production)   (Replaces: 2319826)			Immediately	$ 57.13
23	W10843121		Drier (service)   (Replaces: 4387019)			Immediately	$ 57.13
24	WP2313624		Condenser   (Replaces: 2313624)				$ 366.37
25	1115375		Clip-wiring				$ 11.15
26	W10852725		Grommet, Cond (1)   (Replaces: 2319835)				$ 8.09
27	2217397		Pad, Foam (2)		Appelez-nous	-
28	WP489128		Screw   (Replaces: 488500)				$ 11.40
29	8281197		Screw		Appelez-nous	-
30	2217445		Base, Unit   (Replaces: 2217388)		Appelez-nous	-
31	WP8281196		Screw   (Replaces: 8281196)			Immediately	$ 7.55
NI	WP503695		Sealer, Cork (1/4 Pound)   (Replaces: 503695)				$ 123.84
NI	WP505587		Sealer, Mastic (1 Qt.)   (Replaces: 505587)			Immediately	$ 182.65
NI	WP279368		Cement, Insulation (1 Oz.)   (Replaces: 797403)			Immediately	$ 116.46
NI	212643		Sealer, Gum (22 Pcs. 3/16`` X 7``)			Immediately	$ 82.13
NI	876370		Kit, Insulation (5 Pcs. 3`` X 24`` X 48``)   (Replaces: 479976)				$ 243.14
NI	8537055		Cleaner, Stainless Steel		Appelez-nous	-
NI	978026		Valve, Access (5/16``)			Immediately	$ 134.49
NI	SF5538		Valve, Access(3/8``)   (Replaces: 978027)				$ 21.64
NI	978028		Valve, Access (1/2``)		Appelez-nous	-
NI	978029		Valve, Access (5/8``)				$ 93.85
NI	978030		Valve, Access (3/4``)				$ 137.25
NI	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 110.51

    View Diagram in Separate Window       Print Part List
