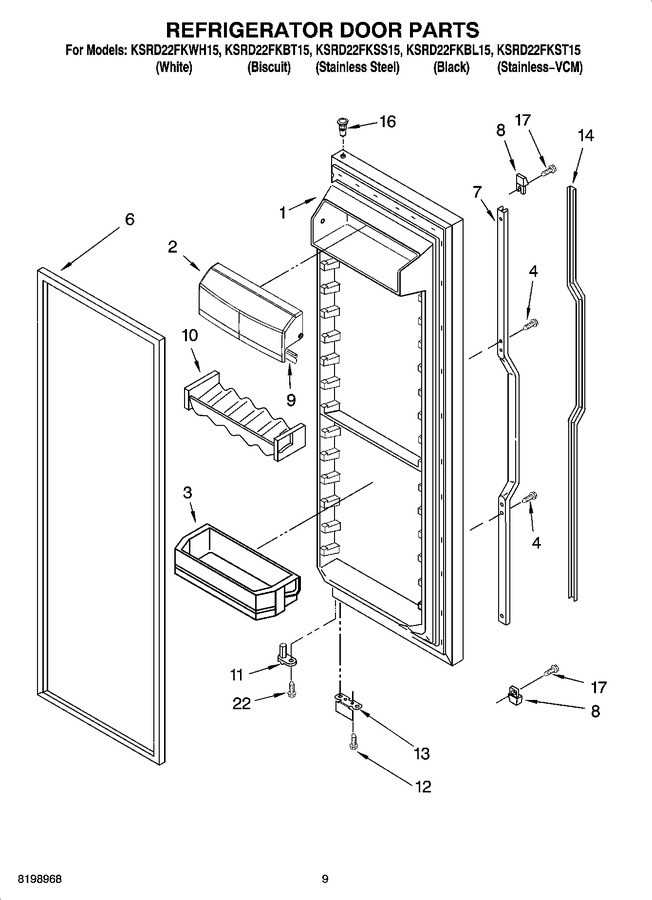

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2207330W | Refrigerator Door (white) |
|
- | |||||
| 1 | 2207330T | Refrigerator Door (biscuit) |
|
- | |||||
| 1 | 2207330S | Refrigerator Door (stainless Steel) |
|
- | |||||
| 1 | 2207330B | Refrigerator Door (black) |
|
- | |||||
| 1 | 2207330L | Refrigerator Door (stainless-vcm (includes Item 6)) |
|
- | |||||
| 2 | 2218122 | Door, Compartment |
|
- | |||||
| 3 | 2171063 | Shelf Bin (4) |
|
- | |||||
| 4 | WP489491 | Screw (Replaces: 489491) |
|
$ 6.95 | |||||
| 6 | 2159081 | Door, Gasket (black Magnetic) (Replaces: 2221311) |
|
$ 319.60 | |||||
| 6 | 2159073 | Door, Gasket (mist Beige) (Replaces: 2221300) |
|
$ 317.32 | |||||
| 7 | 2200434 | Insert, Handle (biscuit) |
|
- | |||||
| 7 | 2173832 | Insert, Handle (black) |
|
- | |||||
| 7 | 2173830 | Insert, Handle (white) |
|
- | |||||
| 8 | 2194778W | End Cap (white) |
|
- | |||||
| 8 | 2194778T | End Cap (biscuit) |
|
- | |||||
| 8 | 2194778B | End Cap (black) |
|
- | |||||
| 9 | 2159124 | Gasket |
|
- | |||||
| 10 | 2193409 | Beverage Holder |
|
$ 48.13 | |||||
| 11 | WP2182179 | Door Closer, Upper Cam (Replaces: 2182178) |
|
Immediately | $ 6.39 | ||||
| 12 | WP489483 | Screw (Replaces: 489420) |
|
$ 10.87 | |||||
| 13 | WP2206629B | Bracket, Door Stop (bright Zinc) (Replaces: 2206629) |
|
$ 40.03 | |||||
| 13 | WP2206629B | Bracket, Door Stop (black) (Replaces: 2206629B) |
|
$ 40.03 | |||||
| 14 | 2194776T | Retainer, Insert (biscuit) |
|
- | |||||
| 14 | 2194776B | Retainer, Insert (black) |
|
- | |||||
| 14 | 2194776W | Retainer, Insert (white) |
|
- | |||||
| 16 | WP2182181 | Thimble, Top (Replaces: 2308091) |
|
$ 7.76 | |||||
| 17 | WP3400852 | Screw (Replaces: 3400852) |
|
$ 9.84 | |||||
| 22 | WP3400012 | Screw (Replaces: 3400012) |
|
$ 7.82 |
