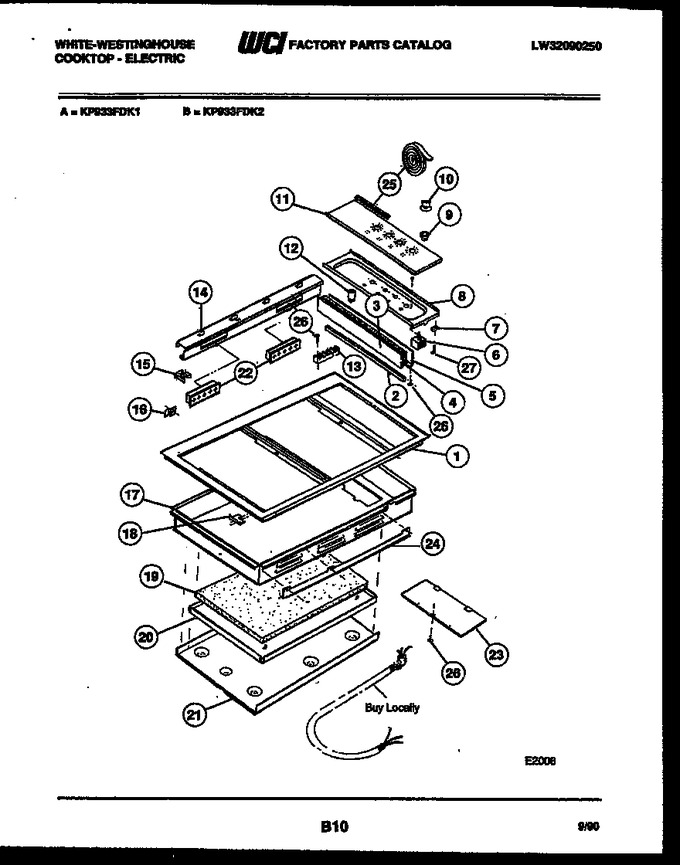

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5308008659 | Frame-trim |
|
- | |||||
| 2 | 5301317793 | Tape-glass |
|
- | |||||
| 3 | 5301317054 | Panel-divider |
|
- | |||||
| 4 | 5303051630 | Insulation |
|
- | |||||
| 5 | 5301325327 | Shield |
|
- | |||||
| 6 | 5301311856 | Switch-top Unit (4) |
|
- | |||||
| 7 | 5301316359 | Clip-glass Top (4) |
|
- | |||||
| 8 | 5301324027 | Bracket-cont |
|
- | |||||
| 9 | 5301316432 | Bushing-sw (4) |
|
- | |||||
| 10 | 5301325622 | Knob-s/u (4) |
|
- | |||||
| 11 | K001325616 | Panel-cont |
|
- | |||||
| 12 | 5301314511 | Indicator Light (2) |
|
- | |||||
| 13 | 5304409888 | Terminal Block (Replaces: 5306563359) |
|
Immediately | $ 26.69 | ||||
| 14 | 5301317248 | Shield-wire |
|
- | |||||
| 15 | 3009138 | Terminal (10) |
|
- | |||||
| 16 | 5301317076 | Clip-receptacle Mtg (4) |
|
- | |||||
| 17 | 5301324436 | Box-outer |
|
- | |||||
| 18 | 5301324231 | Spacer-end |
|
- | |||||
| 19 | 3015661 | Insulation-bottom |
|
- | |||||
| 20 | 5301324200 | Retainer-insulation |
|
- | |||||
| 21 | 5301324079 | Shield-bottom |
|
- | |||||
| 22 | 5308005411 | Receptacle (2) |
|
- | |||||
| 23 | 5301316324 | Cover-access |
|
- | |||||
| 24 | 5301324190 | Shield-front |
|
- | |||||
| 25 | 3051889 | Tape-foam 51`` |
|
- | |||||
| 26 | 5301164563 | Screw (7) |
|
- | |||||
| 26 | 08002848 | Screw |
|
- | |||||
| 27 | 08005346 | Screw |
|
- |
