Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 C8987105 Seal, Door Dike Appelez-nous -
2 B5629043 Insulation Appelez-nous -
3 B5629044 Insulation Appelez-nous -
4 C8982801 Retainer, Door Liner Appelez-nous -
5 D7834010 Door Frz L Appelez-nous -
6 D7783707 Bucket Frz Door Appelez-nous -
7 D7800403 Foam Slab, Door Appelez-nous -
8 D7870904 Gasket (w Frz Dr) Appelez-nous -
9 D7828403 Inner Door Frz Appelez-nous -
10 D7828601 Retainer, Door Liner Appelez-nous -
11 M0219730 Screw Special Order $ 7.65

13 10169402 Retainer, Package Appelez-nous -
14 B0523562 Insul. By The Ft. Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

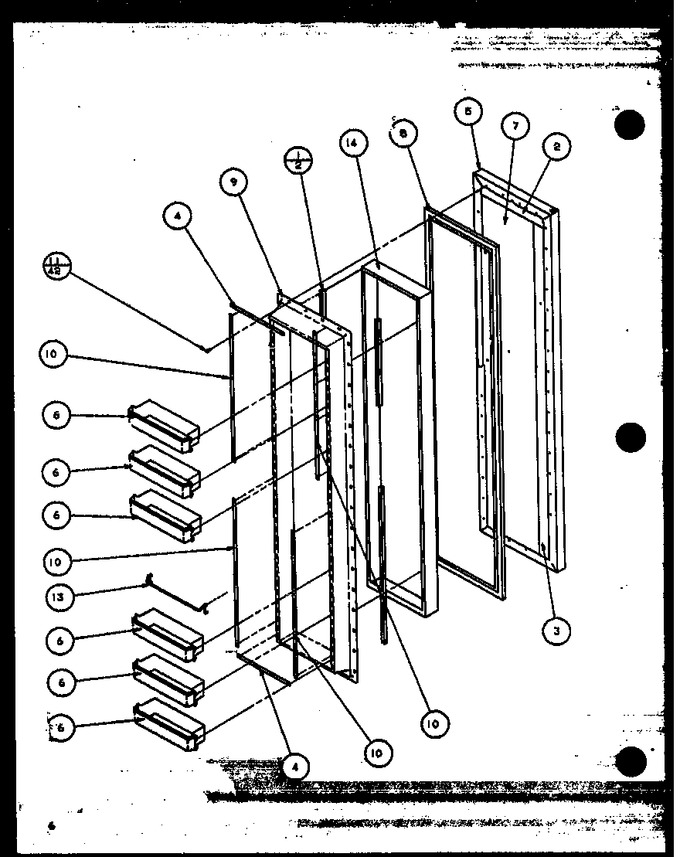

Diagram for 36558 (BOM: P1115404W)
