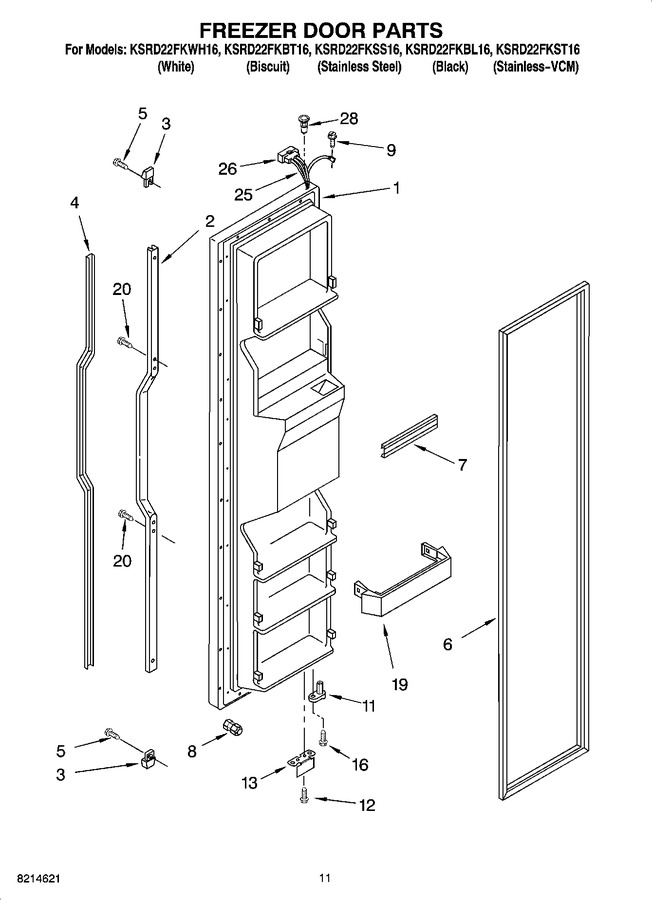

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2216262W		Freezer Door (white)		Appelez-nous	-
1	2216262T		Freezer Door (biscuit)		Appelez-nous	-
1	2216262S		Freezer Door (stainless Steel)		Appelez-nous	-
1	2216262B		Freezer Door (black)		Appelez-nous	-
1	2216262L		Freezer Door (stainless-vcm (includes Item 6 And Dispenser Front Parts))		Appelez-nous	-
2	2200434		Insert, Handle (biscuit)		Appelez-nous	-
2	2173832		Insert, Handle (black)		Appelez-nous	-
2	2173830		Insert, Handle (white)		Appelez-nous	-
3	2194778T		End Cap (biscuit)		Appelez-nous	-
3	2194778W		End Cap (white)		Appelez-nous	-
3	2194778B		End Cap (black)		Appelez-nous	-
4	2194776B		Retainer, Insert (black)		Appelez-nous	-
4	2194776T		Retainer, Insert (biscuit)		Appelez-nous	-
4	2194776W		Retainer, Insert (white)		Appelez-nous	-
5	WP3400852		Screw   (Replaces: 3400852)				$ 9.84
6	2159072		Door Gasket, Magnetic (mist Beige)   (Replaces: 2221301)				$ 308.19
6	2159080		Door Gasket, Magnetic (black)   (Replaces: 2221312)				$ 310.39
7	WPW10307490		Trim, Door Shelf   (Replaces: 2209680)			Immediately	$ 23.11
8	WP4373559		Connector, Dispenser Tube   (Replaces: 2209709)				$ 77.35
9	WP489128		Screw   (Replaces: 8281149)				$ 10.88
11	WP2182179		Door Closer, Upper Cam   (Replaces: 2182179)			Immediately	$ 6.39
12	WP489483		Screw   (Replaces: 489420)				$ 10.87
13	WP2206629B		Bracket, Door Stop   (Replaces: 2206629)				$ 40.03
16	WP3400012		Screw   (Replaces: 3400012)				$ 7.82
19	2171071K		Shelf Bin (4)		Appelez-nous	-
20	WP489491		Screw   (Replaces: 489491)				$ 6.95
25	2187324		Wire Assembly		Appelez-nous	-
26	WP2154473		Connector   (Replaces: 2154473)				$ 23.65
28	2301049		Thimble-top (for Stainless Steel Model)				$ 75.42
28	WP2182181		Thimble-top (for White, Black, Biscuit, Stainless)   (Replaces: 2182181)				$ 7.76
