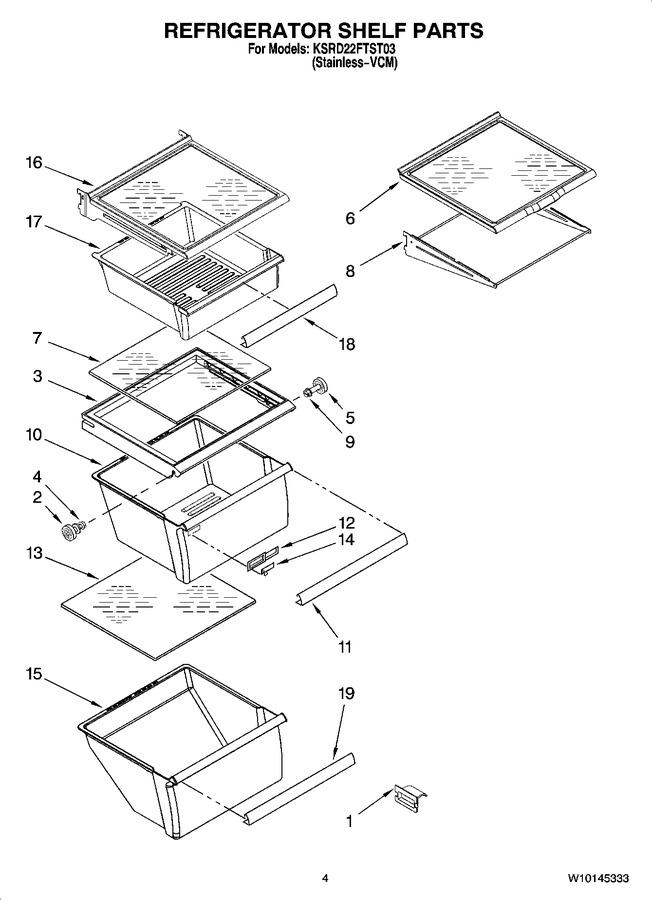

SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Unit Parts


10 - Air Flow Parts


11 - Control Parts


12 - Icemaker Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2179350		Deflector				$ 85.89
2	W11223328		Stud Assembly   (Replaces: 2196485)			Immediately	$ 14.77
3	W10508993		Cover, Crisper   (Replaces: 2209698)				$ 305.85
4	WP3-24004-109		Screw   (Replaces: 3400894)				$ 8.05
5	WP2196483		Stud Assembly   (Replaces: 2196483)				$ 10.35
6	2216102		Spillguard, Slide Out (2)		Appelez-nous	-
7	W10864399		Glass, Crisper Cover   (Replaces: 2206097)				$ 232.03
8	2195975		Frame, Shelf (2)				$ 84.01
9	WP3400806		Screw   (Replaces: 8281158)				$ 7.71
10	WP2188656		Crisper Pan   (Replaces: 2188652)				$ 136.40
11	WP2179234		Trim, Crisper   (Replaces: 2194913)				$ 84.35
12	WP2179343		Housing, Humidity Control   (Replaces: 2179343)				$ 32.40
13	W10864399		Glass, Meat Cover   (Replaces: 2179259)				$ 232.03
14	WP2179342		Slide, Humidity Control   (Replaces: 2179342)				$ 29.14
15	WP2188664		Meat Pan   (Replaces: 2188654)			Immediately	$ 85.30
16	2206346		Shelf, Snack Bin		Appelez-nous	-
17	W11497323		Snack Bin (includes Item 18)   (Replaces: 2188655)				$ 234.84
18	WP2179243		Trim, Snack Bin   (Replaces: 2179243)				$ 104.43
19	WP2179234		Trim, Meat Pan   (Replaces: 2194906)				$ 84.35
