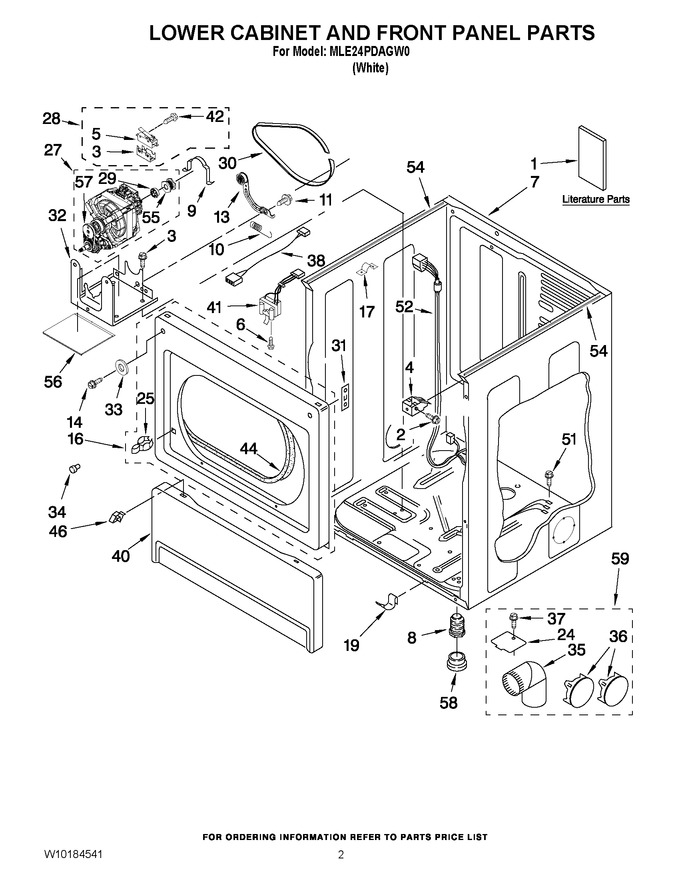

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10184545 | Installation Instructions |
|
- | |||||
| 1 | W10184546 | Tech Sheet |
|
- | |||||
| 1 | W10184541 | Repair Parts List |
|
- | |||||
| 2 | W10223793 | Screw |
|
- | |||||
| 3 | 8564011 | Bracket, Switch |
|
$ 18.17 | |||||
| 4 | 3391846 | Clip, Front Panel |
|
$ 21.15 | |||||
| 5 | WP8564010 | Assembly, Switch & Actuator (Replaces: 8564010) |
|
$ 99.15 | |||||
| 6 | W10080540 | Screw |
|
- | |||||
| 7 | W11417441 | Cabinet, Lower (Replaces: 8310656) |
|
$ 419.21 | |||||
| 8 | 49621 | Foot, Dryer (plastic) (Replaces: 3392100) |
|
Immediately | $ 8.55 | ||||
| 9 | WP660658 | Clamp, Motor (Replaces: 660658) |
|
$ 7.83 | |||||
| 10 | WPW10446781 | Spring, Idler (Replaces: 3387374) |
|
Immediately | $ 24.57 | ||||
| 11 | WP3389420 | Retainer, Idler (Replaces: 3389420) |
|
$ 8.02 | |||||
| 13 | WPW10344192 | Idler Assembly (Replaces: W10141380) |
|
Immediately | $ 90.07 | ||||
| 14 | WP3400077 | Screw (Replaces: 3400077) |
|
$ 6.94 | |||||
| 16 | W10234293 | Upper Front Panel |
|
- | |||||
| 17 | WP98997 | Clip (Replaces: 98997) |
|
$ 11.09 | |||||
| 19 | WP297092 | Clip (Replaces: 297092) |
|
Immediately | $ 8.24 | ||||
| 24 | WPW10354249 | Plate, Cover (bottom Exhaust) (Replaces: 3394331) |
|
$ 8.96 | |||||
| 25 | W10080240 | Strike, Door |
|
- | |||||
| 27 | W10416574 | Motor Assembly 50 Hz. (Replaces: W10142402) |
|
$ 332.50 | |||||
| 28 | W11236387 | Assembly, Switch (Replaces: W10259136) |
|
- | |||||
| 29 | WP3393657 | Restraint, Belt (Replaces: 3393657) |
|
Immediately | $ 132.46 | ||||
| 30 | WPW10131172 | Belt, Drive (Replaces: W10131172) |
|
Immediately | $ 44.00 | ||||
| 31 | WP3390902 | Clip, Door Hinge (Replaces: 3390902) |
|
$ 11.11 | |||||
| 32 | W11676491 | Bracket, Motor (Replaces: W10135695) |
|
$ 125.84 | |||||
| 33 | W10223794 | Washer |
|
- | |||||
| 34 | 693152 | Bumper |
|
$ 10.96 | |||||
| 35 | 279731 | 4``-90° Elbow |
|
- | |||||
| 36 | WPW10404617 | Plug, Multivent (Replaces: 49252) |
|
$ 71.98 | |||||
| 37 | WP488729 | Screw (Replaces: 488729) |
|
Immediately | $ 7.79 | ||||
| 38 | W10231861 | Jumper, Door Switch |
|
- | |||||
| 40 | WP3406797 | Toe Panel (includes Item. 34 ) (Replaces: 697215) |
|
$ 238.33 | |||||
| 41 | WPW10237959 | Switch, Leaded Door (Replaces: W10237959) |
|
Immediately | $ 55.64 | ||||
| 42 | 3400934 | Assembly, Screw & Insulator |
|
- | |||||
| 44 | WP3387242 | Seal, Front Panel (Replaces: 3387242) |
|
Immediately | $ 31.42 | ||||
| 46 | WP3388229 | Retainer (Replaces: 3388229) |
|
Immediately | $ 8.45 | ||||
| 51 | WP489464 | Screw (Replaces: W10080700) |
|
Immediately | $ 7.83 | ||||
| 52 | W10111040 | Harness (lower) |
|
- | |||||
| 54 | WP8318396A | Foam-seal (Replaces: 8318396) |
|
$ 37.82 | |||||
| 55 | W10167237 | Pulley |
|
- | |||||
| 56 | W11113654 | Sound Pad, Motor (Replaces: W10212660) |
|
$ 22.18 | |||||
| 57 | WP3405160 | Belt, Poly V (Replaces: 3405160) |
|
Immediately | $ 35.23 | ||||
| 58 | WP3391943 | Boot, Foot (Replaces: 3391943) |
|
$ 7.82 | |||||
| NI | W10470674 | Dryer Exhaust Kit (for Side & Bottom Venting) (white) (Replaces: 279818) |
|
Immediately | $ 76.65 |
