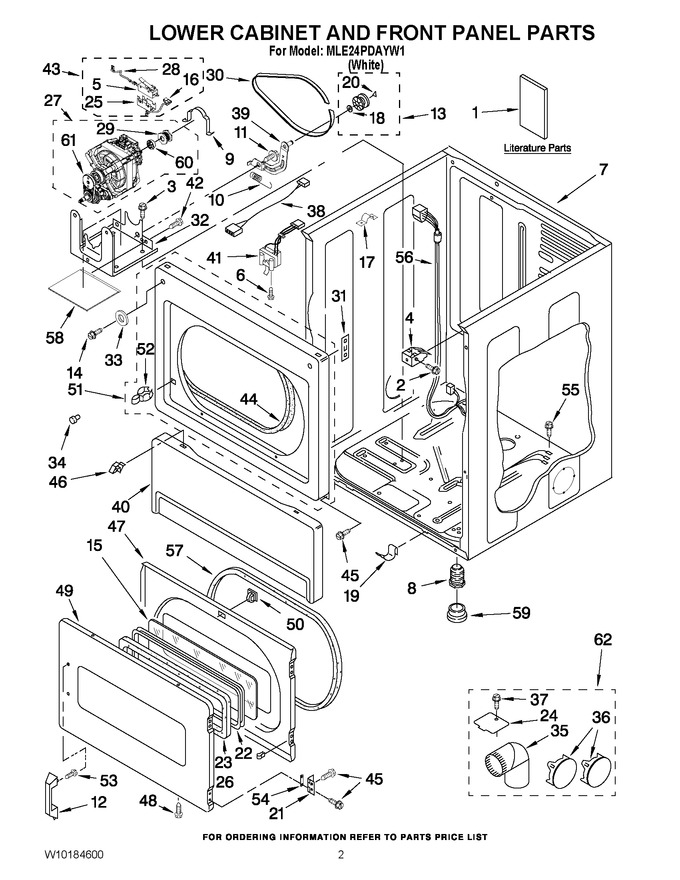

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10184580 | Installation Instructions |
|
- | |||||
| 1 | W10184600 | Repair Parts List |
|
- | |||||
| 1 | W10135168 | Tech Sheet |
|
- | |||||
| 2 | 681615 | Screw (Replaces: 3391915) |
|
$ 14.57 | |||||
| 3 | WP681414 | Screw (Replaces: 3390663) |
|
Immediately | $ 8.47 | ||||
| 4 | 3391846 | Clip, Front Panel |
|
$ 22.21 | |||||
| 5 | WP8564010 | Switch, Broken Belt (Replaces: 8564010) |
|
$ 104.11 | |||||
| 6 | WP3395530 | Screw (Replaces: 697773) |
|
$ 8.57 | |||||
| 7 | W11417441 | Cabinet, Lower (Replaces: 8310656) |
|
$ 440.17 | |||||
| 8 | 49621 | Foot, Dryer (plastic) (Replaces: 3392100) |
|
Immediately | $ 8.55 | ||||
| 9 | WP660658 | Clamp, Motor (Replaces: 660658) |
|
$ 8.22 | |||||
| 10 | WPW10446781 | Spring, Idler (Replaces: 3387374) |
|
Immediately | $ 25.80 | ||||
| 11 | WP3389420 | Retainer, Idler (Replaces: 3389420) |
|
$ 8.62 | |||||
| 12 | WPW10213202 | Handle, Door (Replaces: W10213202) |
|
Immediately | $ 86.43 | ||||
| 13 | 279640 | Pulley Assembly (Replaces: 3388672) |
|
Immediately | $ 32.51 | ||||
| 14 | WP3400077 | Screw (Replaces: 3400077) |
|
$ 7.29 | |||||
| 15 | 3392918 | Window |
|
- | |||||
| 16 | 8539892 | Wire-motor To-belt-switch |
|
- | |||||
| 17 | WP98997 | Clip (Replaces: 98997) |
|
$ 11.64 | |||||
| 18 | WP233520 | Washer, Thurst (Replaces: 233520) |
|
Immediately | $ 8.36 | ||||
| 19 | WP297092 | Clip (Replaces: 297092) |
|
Immediately | $ 8.95 | ||||
| 20 | WPW10512946 | Tri-ring (Replaces: 690997) |
|
Immediately | $ 8.80 | ||||
| 21 | W11175815 | Hinge And Pin (Replaces: 3389247) |
|
$ 85.48 | |||||
| 22 | 3392914 | Frame, Window |
|
- | |||||
| 23 | 3392915 | Gasket, Window |
|
$ 58.46 | |||||
| 24 | WPW10354249 | Plate, Cover (bottom Exhaust) (Replaces: 3394331) |
|
$ 9.41 | |||||
| 25 | 8564011 | Bracket, Switch |
|
$ 19.08 | |||||
| 26 | 3389249 | Nut, ``u`` |
|
- | |||||
| 27 | W11234001 | Motor Assembly 60 Hz. (Replaces: W10139766) |
|
Immediately | $ 433.87 | ||||
| 28 | W10167613 | Wire, Belt Switch (to Protector) |
|
- | |||||
| 29 | WP8066184 | Pulley 60 Hz (Replaces: 3394341) |
|
Immediately | $ 51.02 | ||||
| 30 | WPW10131172 | Belt, Drive (Replaces: W10131172) |
|
Immediately | $ 44.00 | ||||
| 31 | WP3390902 | Clip, Door Hinge (Replaces: 3390902) |
|
$ 11.67 | |||||
| 32 | W11676491 | Bracket, Motor (Replaces: W10135695) |
|
$ 134.62 | |||||
| 33 | W11089212 | Washer (Replaces: 3392186) |
|
$ 11.06 | |||||
| 34 | 693152 | Bumper |
|
$ 11.51 | |||||
| 35 | 279731 | 4``-90° Elbow |
|
- | |||||
| 36 | W10470674 | Plug, Multivent (Replaces: 697750) |
|
Immediately | $ 76.65 | ||||
| 37 | WP488729 | Screw (Replaces: 488729) |
|
Immediately | $ 8.28 | ||||
| 38 | 8283298 | Jumper, Door Switch |
|
$ 87.92 | |||||
| 39 | WPW10344192 | Bracket, Idler (Replaces: W10141380) |
|
Immediately | $ 94.57 | ||||
| 40 | WP3406797 | Toe Panel (includes Item. 34 ) (Replaces: 697215) |
|
$ 250.25 | |||||
| 41 | WPW10237959 | Door Switch Assembly (Replaces: 3406109) |
|
Immediately | $ 55.64 | ||||
| 42 | 777849 | Screw (Replaces: W10002600) |
|
$ 7.36 | |||||
| 43 | W11247665 | Switch, Assembly (Replaces: W10155571) |
|
$ 27.72 | |||||
| 44 | WP3387242 | Seal, Front Panel (Replaces: 3387242) |
|
Immediately | $ 31.42 | ||||
| 45 | WP488627 | Screw (Replaces: 342055) |
|
$ 8.11 | |||||
| 46 | WP3388229 | Retainer (Replaces: 3388229) |
|
Immediately | $ 8.45 | ||||
| 47 | W10244331 | Inner Door (Replaces: W10205622) |
|
- | |||||
| 48 | WP694091 | Screw (Replaces: 694091) |
|
$ 7.55 | |||||
| 49 | W10322548 | Outer Door (Replaces: W10205649) |
|
- | |||||
| 50 | 279570 | Door Catch Assembly (Replaces: 3392538) |
|
Immediately | $ 8.89 | ||||
| 51 | W10242810 | Upper Front Panel (Replaces: W10192882) |
|
$ 386.67 | |||||
| 52 | 279570 | Strike, Door (Replaces: 696144) |
|
Immediately | $ 8.89 | ||||
| 53 | W10850046 | Screw (Replaces: 9742177) |
|
Immediately | $ 7.55 | ||||
| 54 | W10191265 | Plug, Hinge Screw |
|
$ 46.49 | |||||
| 55 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 8.28 | ||||
| 56 | W11311710 | Harness (lower) (Replaces: W10169678) |
|
$ 293.78 | |||||
| 57 | WP3390735 | Seal, Door (Replaces: 3390735) |
|
$ 137.13 | |||||
| 58 | W11113654 | Sound Pad, Motor (Replaces: W10212660) |
|
$ 23.29 | |||||
| 59 | WP3391943 | Boot, Foot (Replaces: 3391943) |
|
$ 8.21 | |||||
| 60 | WP3393657 | Belt, Restrain (Replaces: 3393657) |
|
Immediately | $ 139.08 | ||||
| 61 | WP3405160 | Belt, Poly V (Replaces: 3405160) |
|
Immediately | $ 36.99 | ||||
| NI | 3396122 | Window Pack. (includes Illus. 15 & 23) |
|
- | |||||
| NI | W10470674 | Dryer Exhaust Kit (for Side & Bottom Venting) (white) (Replaces: 279818) |
|
Immediately | $ 76.65 |
