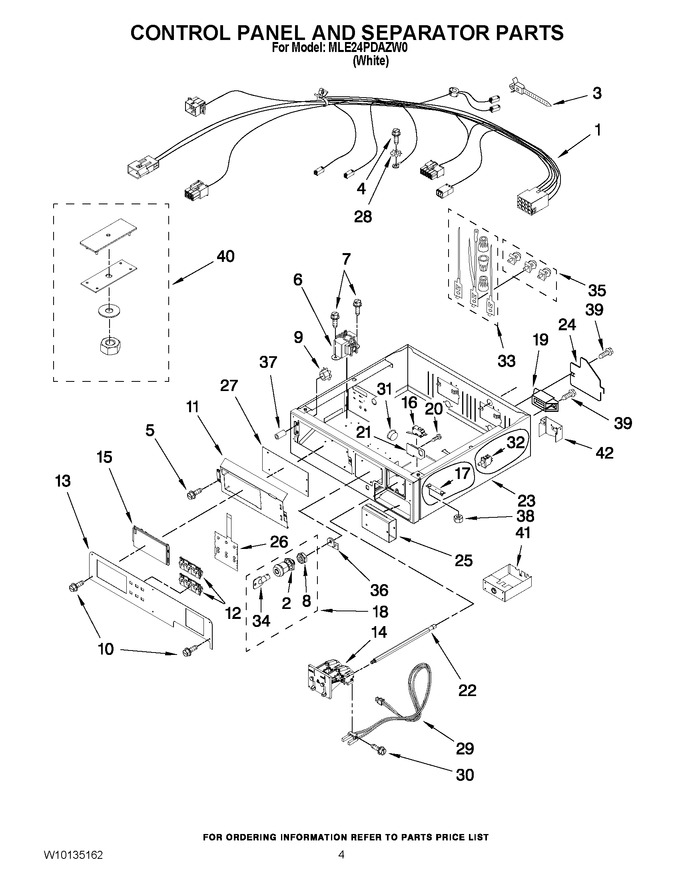

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10169679 | Harness, Collar |
|
$ 164.87 | |||||
| 2 | W11395752 | Hex Nut, 3/4-27 (Replaces: W10139762) |
|
$ 13.04 | |||||
| 3 | WP3391018 | Tie Cable (Replaces: 3391018) |
|
$ 31.84 | |||||
| 4 | W10850756 | Screw (Replaces: 697776) |
|
$ 7.76 | |||||
| 5 | W10756178 | Screw (Replaces: W10140652) |
|
$ 5.99 | |||||
| 6 | WPW10133285 | Transformer 120vac To 22.5vac (Replaces: W10133285) |
|
$ 204.48 | |||||
| 7 | WP90767 | Screw (Replaces: 8533971) |
|
Immediately | $ 7.82 | ||||
| 8 | WPW10133264 | Hex-nut 9/32 - 28 (Replaces: W10177242) |
|
$ 139.02 | |||||
| 9 | WPW10139046 | Nut, 6-32 (Replaces: W10139046) |
|
$ 8.79 | |||||
| 10 | WPW10131119 | Screw (Replaces: W10131119) |
|
$ 6.95 | |||||
| 11 | W10163677 | Plate, Control Mounting |
|
- | |||||
| 12 | WPW10424308 | Push Button (Replaces: W10131113) |
|
Immediately | $ 20.42 | ||||
| 13 | W10135185 | Facia Console |
|
- | |||||
| 14 | W11643135 | Coin Drop Assembly (Replaces: W10133245) |
|
$ 568.97 | |||||
| 15 | WPW10133268 | Cover, Display (Replaces: W10133268) |
|
$ 70.41 | |||||
| 16 | WPW10447152 | Switch, Service Access (Replaces: W10133280) |
|
$ 41.20 | |||||
| 17 | W10159907 | Mounting Strap Assembly |
|
- | |||||
| 18 | WPW10133264 | Lock Assembly (Replaces: W10133264) |
|
$ 139.02 | |||||
| 19 | WP9761958 | Terminal-block (Replaces: 9761958) |
|
Immediately | $ 44.13 | ||||
| 20 | 3400408 | Screw |
|
- | |||||
| 21 | W10160652 | Bracket-switch |
|
- | |||||
| 22 | WPW10137319 | Bolt, 10-32 X 6.06 (Replaces: W10137319) |
|
$ 81.30 | |||||
| 23 | WPW10159849 | Collar (Replaces: W10159849) |
|
$ 517.44 | |||||
| 24 | W10684155 | Cover, Terminal Block (Replaces: W10196677) |
|
- | |||||
| 25 | W11204020 | Vault Body, Assembly (Replaces: W10133258) |
|
$ 401.64 | |||||
| 26 | WPW10133278 | Membrane Switch Assembly (Replaces: W10133277) |
|
$ 116.37 | |||||
| 27 | W11392903 | Control Board (Replaces: W10130700) |
|
$ 683.59 | |||||
| 28 | 3390443 | Retainer, Terminal |
|
- | |||||
| 29 | WPW10247389 | Coin Optic Sensor Assembly (Replaces: W10130178) |
|
Immediately | $ 115.90 | ||||
| 30 | WP3395530 | Screw (Replaces: W10142655) |
|
$ 7.70 | |||||
| 31 | W10165297 | Snap Bushing |
|
- | |||||
| 32 | WPW10131838 | Switch-vault Service Door (Replaces: W10131838) |
|
$ 23.91 | |||||
| 33 | 279318 | Terminal Brass Tinned (3) (includes Item. 35 ) |
|
Immediately | $ 100.99 | ||||
| 34 | WPW10140858 | Key, Access Door (Replaces: W10140858) |
|
Immediately | $ 22.10 | ||||
| 35 | 279393 | Terminal Block Screw Kit (for Terminal Block |
|
Immediately | $ 47.37 | ||||
| 36 | W11165684 | Locking Cam (Replaces: W10133266) |
|
$ 9.11 | |||||
| 37 | W11117166 | Standoff, Circuit Board (Replaces: W10133514) |
|
- | |||||
| 38 | WPW10080190 | Nut, 3/8-16 (Replaces: W10080190) |
|
Immediately | $ 8.49 | ||||
| 39 | W11676450 | Screw (Replaces: 3400000) |
|
$ 14.06 | |||||
| 40 | W11416034 | Kit-coin Box Security (Replaces: W10169579) |
|
$ 126.00 | |||||
| 41 | W11204019 | Coin Box (Replaces: W10133248) |
|
$ 156.05 | |||||
| 42 | W10192090 | Bracket, Terminal Block |
|
$ 103.23 |
