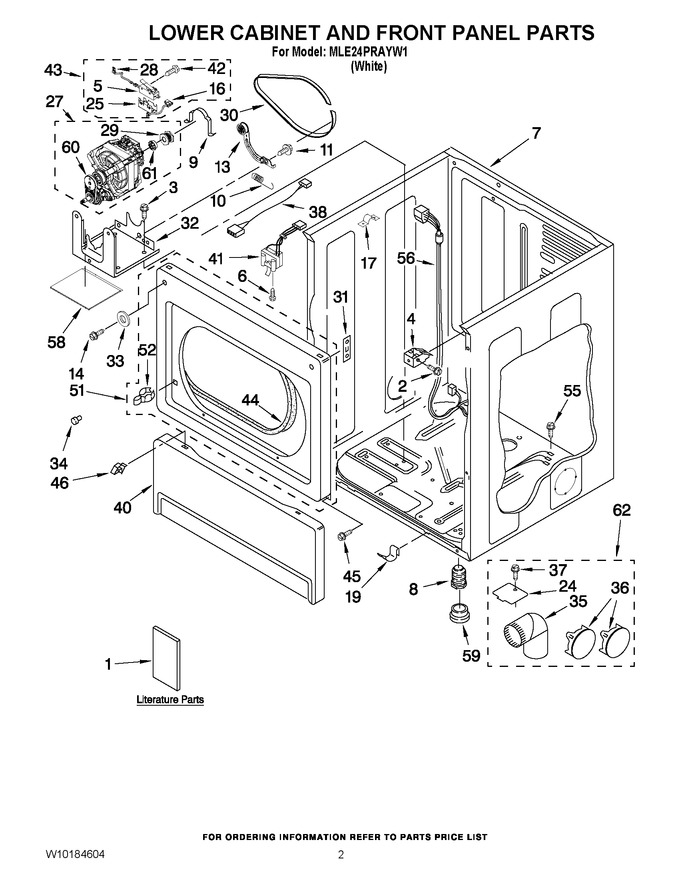

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10135168 | Tech Sheet |
|
- | |||||
| 1 | W10184580 | Installation Instructions |
|
- | |||||
| 1 | W10135291 | Installation, Card Reader |
|
- | |||||
| 1 | W10184604 | Repair Parts List |
|
- | |||||
| 2 | 681615 | Screw, 10-16 X 1 (Replaces: 3391915) |
|
$ 13.88 | |||||
| 3 | WP681414 | Screw, 10-16 X 1/2 (Replaces: 3390663) |
|
Immediately | $ 7.85 | ||||
| 4 | 3391846 | Clip, Front Panel |
|
$ 21.15 | |||||
| 5 | WP8564010 | Switch, Broken Belt (Replaces: 8564010) |
|
$ 99.15 | |||||
| 6 | WP3395530 | Screw (Replaces: 697773) |
|
$ 7.70 | |||||
| 7 | W11417441 | Cabinet, Lower (Replaces: 8310656) |
|
$ 419.21 | |||||
| 8 | 49621 | Foot, Dryer (plastic) (Replaces: 3392100) |
|
Immediately | $ 8.55 | ||||
| 9 | WP660658 | Clamp, Motor (Replaces: 660658) |
|
$ 7.83 | |||||
| 10 | WPW10446781 | Spring, Idler (Replaces: 3387374) |
|
Immediately | $ 24.57 | ||||
| 11 | WP3389420 | Retainer, Idler (Replaces: 3389420) |
|
$ 8.02 | |||||
| 13 | WPW10344192 | Idler Assembly (Replaces: W10141380) |
|
Immediately | $ 90.07 | ||||
| 14 | WP3400077 | Screw (Replaces: 3400077) |
|
$ 6.94 | |||||
| 16 | 8539892 | Wire-motor- To-belt Switch |
|
- | |||||
| 17 | WP98997 | Clip (Replaces: 98997) |
|
$ 11.09 | |||||
| 19 | WP297092 | Clip (Replaces: 297092) |
|
Immediately | $ 8.24 | ||||
| 24 | WPW10354249 | Plate, Cover (bottom Exhaust) (Replaces: 3394331) |
|
$ 8.96 | |||||
| 25 | 8564011 | Bracket, Switch |
|
$ 18.17 | |||||
| 27 | W11234001 | Motor Assembly (60 Hz.) (Replaces: W10139766) |
|
Immediately | $ 413.21 | ||||
| 28 | W10167613 | Wire, Belt Switch (to Protector) |
|
- | |||||
| 29 | WP8066184 | Pulley 60 Hz (Replaces: 3394341) |
|
Immediately | $ 51.02 | ||||
| 30 | WPW10131172 | Belt, Drive (Replaces: W10131172) |
|
Immediately | $ 44.00 | ||||
| 31 | WP3390902 | Clip, Door Hinge (Replaces: 3390902) |
|
$ 11.11 | |||||
| 32 | W11676491 | Bracket, Motor (Replaces: W10135695) |
|
$ 125.84 | |||||
| 33 | W11089212 | Washer (Replaces: 3392186) |
|
$ 9.67 | |||||
| 34 | 693152 | Bumper |
|
$ 10.96 | |||||
| 35 | 279731 | 4``-90° Elbow |
|
- | |||||
| 36 | W10470674 | Plug, Multivent (Replaces: 697750) |
|
Immediately | $ 76.65 | ||||
| 37 | WP488729 | Screw (Replaces: 488729) |
|
Immediately | $ 7.79 | ||||
| 38 | 8283298 | Jumper, Door Switch |
|
$ 83.73 | |||||
| 40 | WP3406797 | Toe Pane (includes Item. 34 ) (Replaces: 697215) |
|
$ 238.33 | |||||
| 41 | WPW10237959 | Door Switch Assembly (Replaces: 3406109) |
|
Immediately | $ 55.64 | ||||
| 42 | 777849 | Screw (Replaces: W10002600) |
|
$ 7.01 | |||||
| 43 | W11247665 | Switch, Assembly (Replaces: W10155571) |
|
$ 26.40 | |||||
| 44 | WP3387242 | Seal, Front Panel (Replaces: 3387242) |
|
Immediately | $ 31.42 | ||||
| 45 | WP488627 | Screw (Replaces: 342055) |
|
$ 7.57 | |||||
| 46 | WP3388229 | Retainer (Replaces: 3388229) |
|
Immediately | $ 8.45 | ||||
| 51 | W10242810 | Upper Front Panel (Replaces: W10192882) |
|
$ 361.07 | |||||
| 52 | 279570 | Strike, Door (Replaces: 696144) |
|
Immediately | $ 8.89 | ||||
| 55 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 7.79 | ||||
| 56 | W11311710 | Harness (lower) (Replaces: W10169678) |
|
$ 279.79 | |||||
| 58 | W11113654 | Sound Pad, Motor (Replaces: W10212660) |
|
$ 22.18 | |||||
| 59 | WP3391943 | Boot, Foot (Replaces: 3391943) |
|
$ 7.82 | |||||
| 60 | WP3405160 | Belt, Poly V (Replaces: 3405160) |
|
Immediately | $ 35.23 | ||||
| 61 | WP3393657 | Belt, Restrain (Replaces: 3393657) |
|
Immediately | $ 132.46 | ||||
| NI | W10470674 | Dryer Exhaust Kit (for Side & Bottom Venting) (white) (Replaces: 279818) |
|
Immediately | $ 76.65 |
