SELECT A DIAGRAM

01 - Cabinet, Literature


02 - Refrigerator Liner


03 - Refrigerator Shelf


04 - Freezer Liner


05 - Motor And Ice Container


06 - Refrigerator Door


07 - Freezer Door


08 - Dispenser Front


09 - Air Flow


10 - Control


11 - Unit


12 - Icemaker, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart

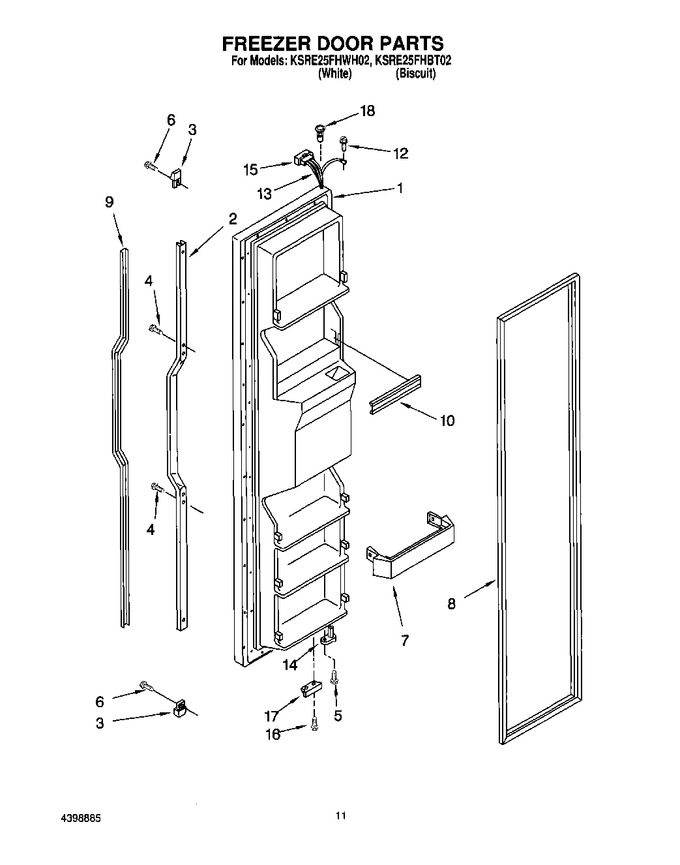

1	2204268T		Freezer Door (includes No.8 And Dispenser Front Parts) (biscuit)		Appelez-nous	-
1	2204268W		Freezer Door (includes No.8 And Dispenser Front Parts) (white)		Appelez-nous	-
2	2194777W		Retainer, Insert (white)		Appelez-nous	-
2	2194777T		Retainer, Insert (biscuit)		Appelez-nous	-
3	2194778W		End Cap (2) (white)		Appelez-nous	-
3	2194778T		End Cap (2) (biscuit)		Appelez-nous	-
4	WP489463		Screw   (Replaces: 489463)				$ 7.82
5	WP3400012		Screw   (Replaces: 3400012)				$ 7.82
6	WP3400852		Screw   (Replaces: 3400852)				$ 9.84
7	2171070		Shelf Bin (4)		Appelez-nous	-
8	2159074		Door Gasket, Magnetic (service) (mist Beige)				$ 310.19
9	2186863T		Insert, Handle (biscuit)		Appelez-nous	-
9	2173825		Insert, Handle (white)		Appelez-nous	-
10	WPW10307490		Trim, Door Shelf   (Replaces: 2209681)			Immediately	$ 23.11
12	WP489128		Screw   (Replaces: 488500)				$ 10.88
13	2180229		Wire Harness				$ 73.70
14	WP2182179		Door Closer, Upper Cam   (Replaces: 2182179)			Immediately	$ 6.39
15	WP2154473		Connector   (Replaces: 2154473)				$ 23.65
16	WP489483		Screw   (Replaces: 489420)				$ 10.87
17	2195950		Bracket, Door Stop (black)				$ 5.84
18	WP2182181		Thimble, Top   (Replaces: 2182181)				$ 7.76

    View Diagram in Separate Window       Print Part List
