SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts

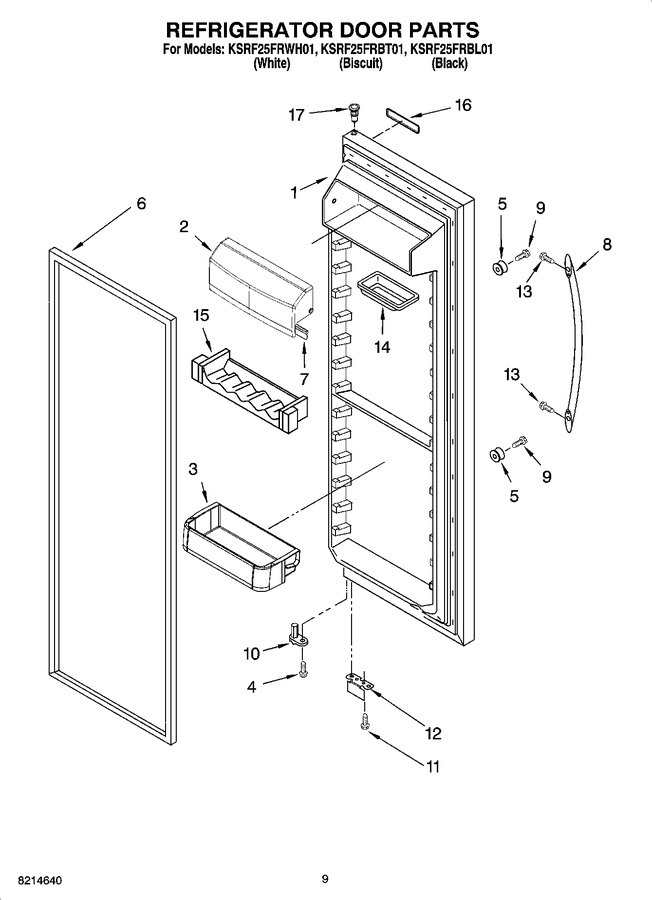

06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Air Flow Parts


10 - Control Parts


11 - Unit Parts


12 - Icemaker Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2303139T		Refrigerator Door (includes Item 6) (biscuit)		Appelez-nous	-
1	2303139B		Refrigerator Door (includes Item 6) (black)		Appelez-nous	-
1	2303139W		Refrigerator Door (includes Item 6) (white)		Appelez-nous	-
2	2301486		Door Compartment (includes 7)		Appelez-nous	-
3	WP2223434K		Door Bin (4)   (Replaces: 2223434K)			Immediately	$ 97.22
4	WP3400012		Screw   (Replaces: 3400012)				$ 7.82
5	WPW10170540		Stud, Handle   (Replaces: 2219698)			Immediately	$ 8.51
6	2159083		Door Gasket, Magnetic (black)   (Replaces: 2221313)				$ 251.49
6	2159075		Door Gasket, Magnetic (mist Beige)   (Replaces: 2221302)			Immediately	$ 317.14
7	2159124		Gasket		Appelez-nous	-
8	2255516B		Handle (black)		Appelez-nous	-
8	2255516W		Handle (white)		Appelez-nous	-
8	2255516T		Handle (biscuit)		Appelez-nous	-
9	WP488163		Screw   (Replaces: 488208)				$ 7.54
10	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 6.39
11	WP489483		Screw   (Replaces: 489420)				$ 10.87
12	2303113		Bracket, Door Stop (chrome)		Appelez-nous	-
12	2303113B		Bracket, Door Stop (black)		Appelez-nous	-
13	8533976		Screw (chrome)				$ 8.35
13	8533975		Screw (black)		Appelez-nous	-
14	2165792K		Butter Dish				$ 9.72
15	2193409K		Beverage Holder (2)		Appelez-nous	-
16	8531691		Nameplate		Appelez-nous	-
17	WP2182181		Thimble, Top   (Replaces: 2303107)				$ 7.76

    View Diagram in Separate Window       Print Part List
