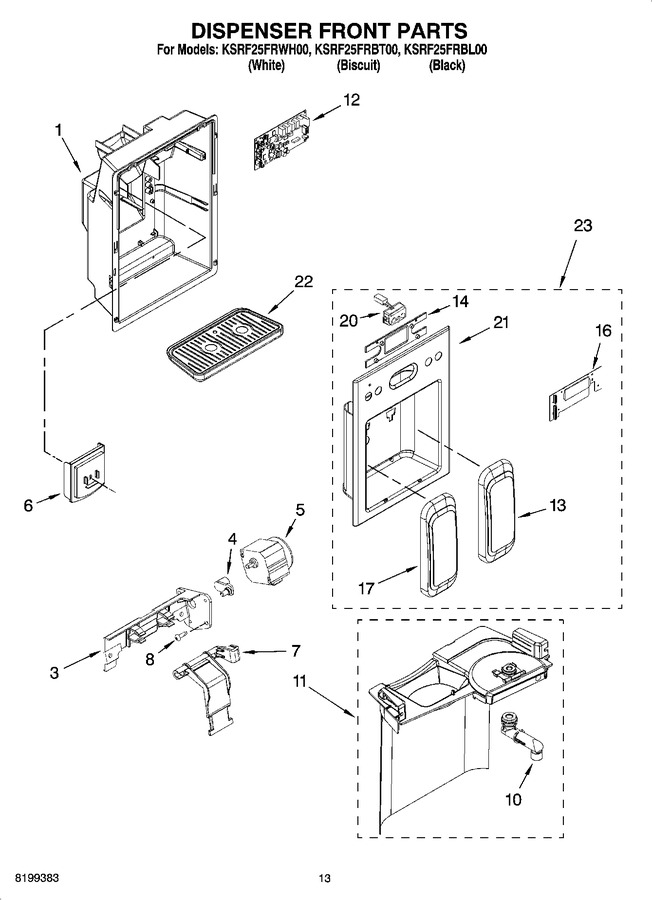

Diagram #	Part Number	Description	Availability	Ships	Price
1	N/A	Housing, Dispenser (not Serviced)	Appelez-nous	-
3	WP2305202	Bracket, Motor (Replaces: 2305202)			$ 101.60
4	WP2305242	Connector, Door Bracket (Replaces: 2305242)		Immediately	$ 101.82
5	WPW10184813	Motor, Ice Door (Replaces: 2305262)		Immediately	$ 108.33
6	WP2305258	Door, Ice (Replaces: 2305258)			$ 26.09
7	WP2305204	Support, Ice Door (Replaces: 2305204)			$ 92.63
8	WP4449745	Screw (4) (Replaces: 4449745)			$ 7.98
10	2305236	Spigot	Appelez-nous	-
11	2305366	Separator Assembly	Appelez-nous	-
12	WP2303843	Electronic Control (core) (Replaces: 2303946)			$ 365.39
13	W10133606	Pad, Water (for Biscuit Model) (Replaces: 2305307MN)			$ 335.00
13	W10133603	Pad, Water (for Black Model) (Replaces: 2305307GE)		Immediately	$ 339.20
13	2305307CE	Pad, Water (for White Model)			$ 134.21
14	2305287	Lens, Front Cover	Appelez-nous	-
16	WP2321746	Cover, Electronic Control (user Interface) (Replaces: 2304140)		Immediately	$ 318.84
17	W10133603	Pad, Ice (for Black Model) (Replaces: 2305306GE)		Immediately	$ 339.20
17	2305306CE	Pad, Ice (for White Model)	Appelez-nous	-
17	W10133606	Pad, Ice (for Biscuit Model) (Replaces: 2305306MN)			$ 335.00
20	W10222215	Led Assembly (Replaces: 2305342)			$ 154.54
22	2315111B	Tray, Housing (black)	Appelez-nous	-
22	2315111T	Tray, Housing (biscuit)	Appelez-nous	-
22	2315111W	Tray, Housing (white)	Appelez-nous	-
23	2305312B	Front Cover Assembly (includes Items 13, 14, 16, 17, 20 & 21) (black)			$ 442.46
23	2305312W	Front Cover Assembly (includes Items 13, 14, 16, 17, 20 & 21) (white)	Appelez-nous	-
23	2305312T	Front Cover Assembly (includes Items 13, 14, 16, 17, 20 & 21) (biscuit)	Appelez-nous	-
