Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 N/A Housing, Dispenser (not Serviced) Appelez-nous -
3 WP2305202 Bracket, Motor   (Replaces: 2305202) Special Order $ 96.76

4 WP2305242 Connector, Door Bracket   (Replaces: 2305242) In-Stock Immediately $ 96.97

5 WPW10184813 Motor, Ice Door   (Replaces: 2305262) In-Stock Immediately $ 103.17

6 WP2305258 Door, Ice   (Replaces: 2305258) Special Order $ 24.85

7 WP2305204 Support, Ice Door   (Replaces: 2305204) Special Order $ 88.22

8 WP4449745 Screw (4)   (Replaces: 4449745) Special Order $ 7.49

9 2305447 Clip, Wiring Appelez-nous -
10 2305236 Spigot Appelez-nous -
11 2305366 Separator Assembly Appelez-nous -
12 WP2303843 Electronic Control (core)   (Replaces: 2303843) Special Order $ 347.99

13 W10133603 Pad, Water (for Black Model)   (Replaces: 2305307GE) In-Stock Immediately $ 323.05

13 2305307CE Pad, Water (for White Model) Special Order $ 134.21

13 W10133606 Pad, Water (for Biscuit Model)   (Replaces: 2305307MN) Special Order $ 319.05

14 2305287 Lens, Front Cover Appelez-nous -
16 WP2321746 Cover, Electronic Control (user Interface)   (Replaces: 2304140) In-Stock Immediately $ 303.66

17 W10133606 Pad, Ice (for Biscuit Model)   (Replaces: 2305306MN) Special Order $ 319.05

17 W10133603 Pad, Ice (for Black Model)   (Replaces: 2305306GE) In-Stock Immediately $ 323.05

17 2305306CE Pad, Ice (for White Model) Appelez-nous -
20 W10222215 Led Assembly   (Replaces: 2305342) Special Order $ 147.18

22 2315111T Tray, Housing (biscuit) Appelez-nous -
22 2315111W Tray, Housing (white) Appelez-nous -
22 2315111B Tray, Housing (black) Appelez-nous -
23 2305312W Front Cover Assembly (includes Items 13, 14, 16, 17, 20 & 21) (white) Appelez-nous -
23 2305312T Front Cover Assembly (includes Items 13, 14, 16, 17, 20 & 21) (biscuit) Appelez-nous -
23 2305312B Front Cover Assembly (includes Items 13, 14, 16, 17, 20 & 21) (black) Special Order $ 442.46


    View Diagram in Separate Window     Print Icon   Print Part List

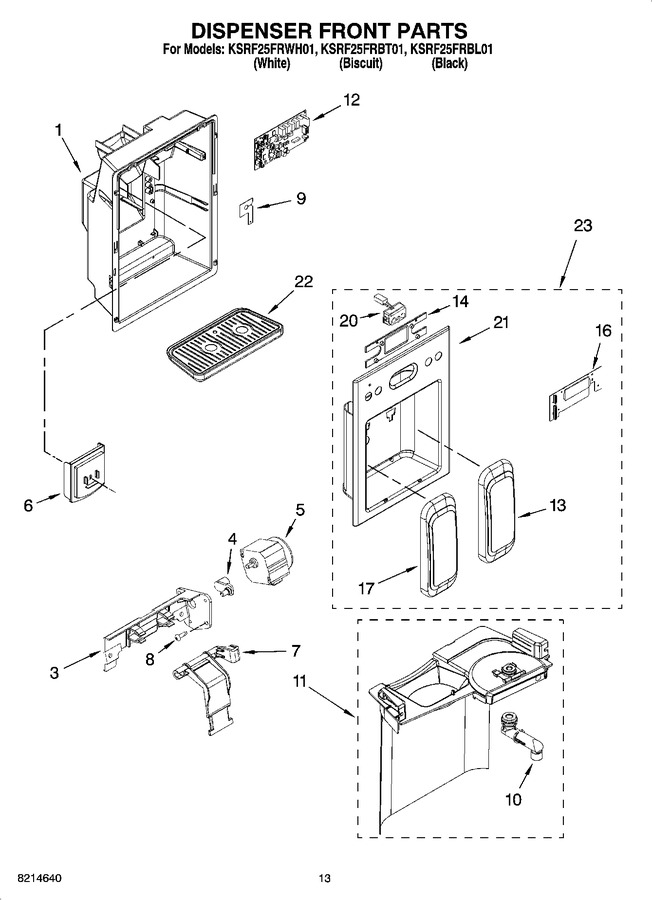

Diagram for KSRF25FRWH01
