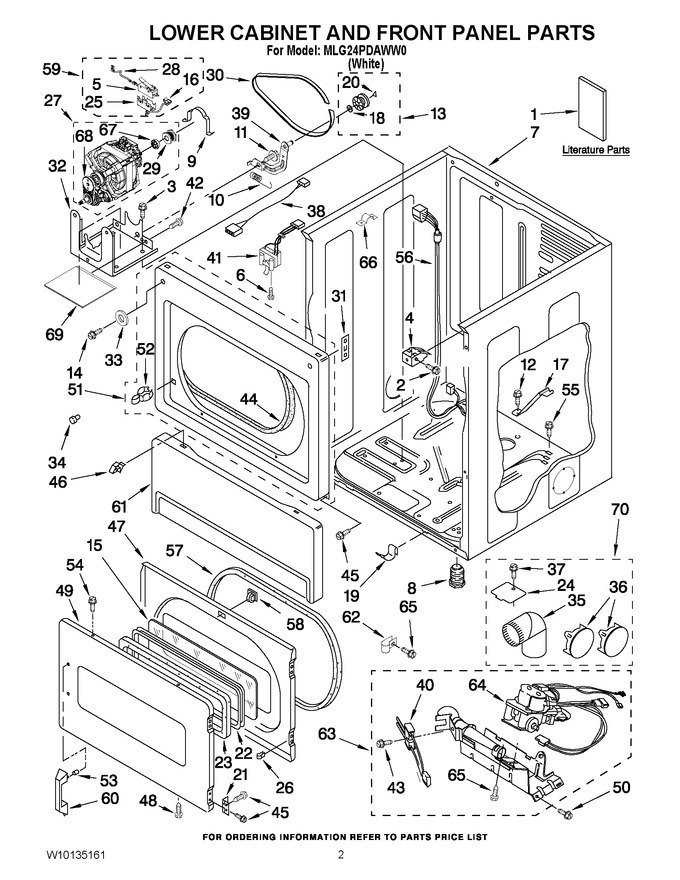

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10135161		Repair Parts List		Appelez-nous	-
1	W10135153		Installation Instructions		Appelez-nous	-
1	W10135168		Tech Sheet		Appelez-nous	-
2	681615		Screw   (Replaces: 3391915)				$ 13.88
3	WP681414		Screw   (Replaces: 3390663)			Immediately	$ 7.85
4	3391846		Clip, Front Panel				$ 21.15
5	WP8564010		Switch, Broken Belt   (Replaces: 8564010)				$ 99.15
6	WP3395530		Screw   (Replaces: 697773)				$ 7.70
7	W11417441		Cabinet, Lower   (Replaces: 8310656)				$ 419.21
8	49621		Foot, Dryer (plastic)   (Replaces: 3392100)			Immediately	$ 8.55
9	WP660658		Clamp, Motor   (Replaces: 660658)				$ 7.83
10	WPW10446781		Spring, Idler   (Replaces: 3387374)			Immediately	$ 24.57
11	WP3389420		Retainer, Idler   (Replaces: 3389420)				$ 8.02
12	WP693995		Screw   (Replaces: 693995)			Immediately	$ 7.19
13	279640		Pulley Assembly   (Replaces: 3388672)			Immediately	$ 32.51
14	WP3400077		Screw   (Replaces: 3400077)				$ 6.94
15	3392918		Window		Appelez-nous	-
16	8539892		Wire-motor To-belt-switch		Appelez-nous	-
17	W10181903		Bracket, Burner   (Replaces: 8529757)		Appelez-nous	-
18	WP233520		Washer, Thurst   (Replaces: 233520)			Immediately	$ 7.96
19	WP297092		Clip   (Replaces: 297092)			Immediately	$ 8.24
20	WPW10512946		Tri-ring   (Replaces: 690997)			Immediately	$ 8.80
21	W11175815		Hinge And Pin   (Replaces: 3389247)				$ 81.41
22	3392914		Frame, Window		Appelez-nous	-
23	3392915		Gasket, Window				$ 58.46
24	WPW10354249		Plate, Cover (bottom Exhaust)   (Replaces: 3394331)				$ 8.96
25	8564011		Bracket, Switch				$ 18.17
26	3389249		Nut, ``u``		Appelez-nous	-
27	W11234001		Motor Assembly 60 Hz.   (Replaces: W10139766)			Immediately	$ 413.21
28	W10167613		Wire, Belt Switch (to Protector)		Appelez-nous	-
29	WP8066184		Pulley 60 Hz   (Replaces: 3394341)			Immediately	$ 51.02
30	WPW10131172		Belt, Drive   (Replaces: W10131172)			Immediately	$ 44.00
31	WP3390902		Clip, Door Hinge   (Replaces: 3390902)				$ 11.11
32	W11676491		Bracket, Motor   (Replaces: W10135695)				$ 125.84
33	W11089212		Washer   (Replaces: 3392186)				$ 9.67
34	693152		Bumper				$ 10.96
35	279731		4``-90° Elbow		Appelez-nous	-
36	W10470674		Plug, Multivent   (Replaces: 697750)			Immediately	$ 76.65
37	WP488729		Screw   (Replaces: 488729)			Immediately	$ 7.79
38	8283298		Jumper, Door Switch				$ 83.73
39	WPW10344192		Bracket, Idler   (Replaces: W10141380)			Immediately	$ 90.07
40	279311		Ignitor   (Replaces: 686590)			Immediately	$ 78.90
41	WPW10237959		Door Switch Assembly   (Replaces: 3406109)			Immediately	$ 55.64
42	777849		Screw   (Replaces: W10002600)				$ 7.01
43	WPW10366705		Screw   (Replaces: 3393909)				$ 7.50
44	WP3387242		Seal, Front Panel   (Replaces: 3387242)			Immediately	$ 31.42
45	WP488627		Screw   (Replaces: 342055)				$ 7.57
46	WP3388229		Retainer   (Replaces: 3388229)			Immediately	$ 8.45
47	W10244331		Door, Rear   (Replaces: 3392905)		Appelez-nous	-
48	WP694091		Screw   (Replaces: 694091)				$ 7.19
49	W10322548		Door, Front   (Replaces: 3392880)		Appelez-nous	-
50	WP681414		Screw   (Replaces: 343641)			Immediately	$ 7.85
51	3393081		Upper Front Panel		Appelez-nous	-
52	279570		Strike, Door   (Replaces: 696144)			Immediately	$ 8.89
53	3393933		Fastener		Appelez-nous	-
54	718032		Screw		Appelez-nous	-
55	WP488729		Screw   (Replaces: 3390647)			Immediately	$ 7.79
56	W10169687		Harness (lower)		Appelez-nous	-
57	WP3390735		Seal, Door   (Replaces: 3390735)				$ 130.60
58	279570		Catch, Door Assembly   (Replaces: 3392538)			Immediately	$ 8.89
59	W11247665		Switch, Assembly   (Replaces: W10155571)				$ 26.40
60	WP3392906		Handle, Door   (Replaces: 3392906)				$ 82.96
61	WP3406797		Panel, Toe (includes Illus. 34)   (Replaces: 697215)				$ 238.33
62	3387561		Clamp, Pipe		Appelez-nous	-
63	W11676916		Burner Assembly 60 Hz. (refer To Pages 10 & 11 For Breakdown)   (Replaces: W10135231)				$ 251.18
64	697441		Valve, Gas (complete) 60 Hz.		Appelez-nous	-
65	WP693995		Screw   (Replaces: 3387057)			Immediately	$ 7.19
66	WP98997		Clip   (Replaces: 98997)				$ 11.09
67	WP3393657		Restrain, Belt   (Replaces: 3393657)			Immediately	$ 132.46
68	WP3405160		Belt, Poly V   (Replaces: 3405160)			Immediately	$ 35.23
69	W11113654		Sound Pad, Motor   (Replaces: W10212660)				$ 22.18
NI	3396122		Window Pack. (includes Illus. 15 & 23)		Appelez-nous	-
NI	W10470674		Dryer Exhaust Kit (for Side & Bottom Venting) (white)   (Replaces: 279818)			Immediately	$ 76.65
