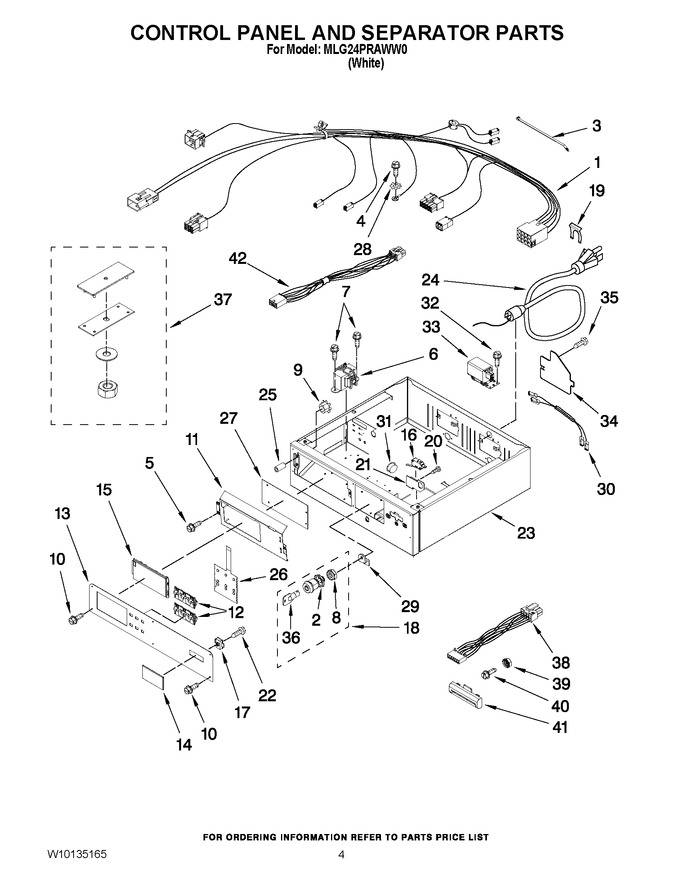

01 - Lower Cabinet And Front Panel Parts


02 - Control Panel And Separator Parts


03 - Upper Cabinet And Front Panel Parts


04 - Upper And Lower Bulkhead Parts


05 - Door Parts


06 - W10135231 Burner Assembly


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10167620		Harness, Collar		Appelez-nous	-
2	W11395752		Hex Nut, 3/4-27   (Replaces: W10139762)				$ 13.04
3	WPW10155270		Tie Cable   (Replaces: 8529895)				$ 6.17
4	W10850756		Screw   (Replaces: 697776)				$ 7.76
5	W10756178		Screw   (Replaces: W10140652)				$ 5.99
6	WPW10133285		Transformer 120vac To 22.5vac   (Replaces: W10133285)				$ 204.48
7	WP90767		Screw   (Replaces: 8533971)			Immediately	$ 7.82
8	WPW10133264		Hex-nut 9/32   (Replaces: W10177242)				$ 139.02
9	WPW10139046		Nut 6-32   (Replaces: W10139046)				$ 8.79
10	WPW10131119		Screw   (Replaces: W10131119)				$ 6.95
11	W10163677		Plate, Control Mounting		Appelez-nous	-
12	WPW10424308		Push Button   (Replaces: W10131113)			Immediately	$ 20.42
13	W10135186		Facia Console		Appelez-nous	-
14	W11164066		Cover, Card Reader   (Replaces: W10137769)		Appelez-nous	-
15	WPW10133268		Cover, Display   (Replaces: W10133268)				$ 70.41
16	WPW10447152		Switch, Service Access   (Replaces: W10133280)				$ 41.20
17	W10145157		Retainer, Facia Cover		Appelez-nous	-
18	WPW10133264		Lock Assembly   (Replaces: W10133264)				$ 139.02
19	W11712577		Strain-relief   (Replaces: 694415)			Immediately	$ 7.40
20	3400408		Screw		Appelez-nous	-
21	W10160652		Bracket-switch		Appelez-nous	-
22	3400618		Screw				$ 64.70
23	W10165714		Collar		Appelez-nous	-
24	694018		Cord, Power		Appelez-nous	-
25	W11117166		Standoff, Circuit Board   (Replaces: W10133514)		Appelez-nous	-
26	WPW10133278		Membrane Switch Assembly   (Replaces: W10133277)				$ 116.37
27	W11392903		Control Board   (Replaces: W10130700)				$ 683.59
28	3390443		Retainer, Terminal		Appelez-nous	-
29	W11165684		Locking Cam   (Replaces: W10133266)				$ 9.11
30	W10188051		Jumper, Line Filter		Appelez-nous	-
31	W10165297		Snap Bushing		Appelez-nous	-
32	WP90767		Screw   (Replaces: 8533971)			Immediately	$ 7.82
33	WPW10367632		Rfi-filter   (Replaces: 8540229)				$ 122.22
34	W11539855		Cover, Terminal Block   (Replaces: 3396795)			Immediately	$ 599.76
35	W11676450		Screw   (Replaces: 3400000)				$ 14.06
36	WPW10140858		Key, Access Door   (Replaces: W10140858)			Immediately	$ 22.10
37	W11416034		Kit-coin Box Security   (Replaces: W10169579)				$ 126.00
38	W10133305		Harness, Card Reader		Appelez-nous	-
39	WPW10139046		Nut 6-32   (Replaces: W10139046)				$ 8.79
40	WPW10143462		Screw   (Replaces: W10143462)				$ 6.00
41	W10163036		Bezel				$ 20.40
42	W10111027		Jumper, Transformer				$ 45.81
