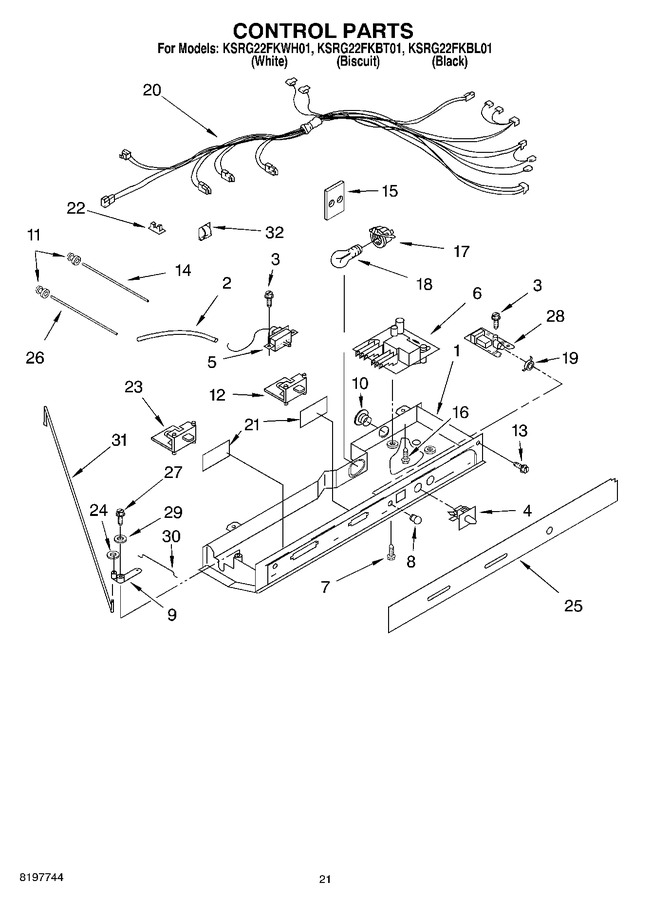

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2181738		Control Box		Appelez-nous	-
2	WP2196003		Tube Barrier, Thermostat   (Replaces: 2196001)				$ 7.95
3	2006254		Screw (3)   (Replaces: 489214)				$ 13.13
4	WP2149705		Light Switch   (Replaces: 2149705)			Immediately	$ 40.40
5	WP2315562		Thermostat   (Replaces: 2161282)			Immediately	$ 106.18
6	4388932		Adaptive Defrost Control   (Replaces: 2188159)			Immediately	$ 267.09
7	489392		Screw (2)   (Replaces: 489398)				$ 13.35
8	2200096		Cover, Light Lens				$ 64.10
9	2161306		Pivot Arm				$ 9.65
10	940014		Hole Plug				$ 18.33
11	2172906		Grommet, Light Bar		Appelez-nous	-
12	2161466		Slide, Thermostat				$ 21.22
13	WPW10141645		Screw (2)   (Replaces: 489084)				$ 7.67
14	2179920		Light, Bar				$ 37.08
15	2172931		Heat Shield				$ 70.38
16	WP488488		Screw (2)   (Replaces: 489290)				$ 7.68
17	4387478		Light Socket   (Replaces: 2162085)			Immediately	$ 110.16
18	8009		Light Bulb   (Replaces: 527949)			Immediately	$ 18.67
19	2200097		Retainer, Light Lens		Appelez-nous	-
20	2211318		Harness, Control Box		Appelez-nous	-
21	2175513		Window		Appelez-nous	-
22	1115375		Clip, Wiring				$ 11.15
23	2181741		Slide, Air Control				$ 90.49
24	489391		Fastner, Push-on				$ 7.52
25	2211959		Escutcheon, Control Box		Appelez-nous	-
26	2179921		Light Bar		Appelez-nous	-
27	627068		Screw				$ 12.12
28	2203384		P.c. Board Filter Indicator		Appelez-nous	-
29	489203		Washer, Spring		Appelez-nous	-
30	2161307		Connecting Rod (short)		Appelez-nous	-
31	2161308		Connecting Rod (long)				$ 172.11
32	4392900		Paint, Bulk (1 Qt.) (biscuit) (uncut)		Appelez-nous	-
32	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
32	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 12.18
32	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 117.94
32	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 173.95
32	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 231.56
32	876370		Kit, Insulation (14 Pcs. X 3`` X 24`` X 48``)   (Replaces: 876305)				$ 231.56
32	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
32	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 17.91
32	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
32	4392901		Paint, Pressurized Spray (12oz.) (biscuit)		Appelez-nous	-
32	350956		Enamel, Almond (13 Oz. Spray Can)				$ 51.44
32	833938		Kit, Terminal Connector				$ 8.07
32	WPW10312301		Ice Crusher Mechanism Assembly   (Replaces: 2152735)				$ 430.90
32	799340		Enamel, Black (1 Qt. Uncut)		Appelez-nous	-
32	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
32	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
32	1117510		Torx Key				$ 5.84
32	WP1115374		Clip, Wiring   (Replaces: 1115374)				$ 7.75
32	350942		Primer White (13 Oz. Spray Can)				$ 89.66
32	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939)				$ 57.04
32	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 38.21
32	4392899		Brush Touch-up Kit (biscuit			Immediately	$ 26.45
32	212643		Sealer, Gum (4 Feet)			Immediately	$ 82.13
32	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
32	876370		Kit, Insulation 2 Pcs. X 3`` X 24`` X 48``)				$ 231.56
32	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
32	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 49.29
32	606755		Bag, Insulation (36-5/8`` X 46``)				$ 78.45
32	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
