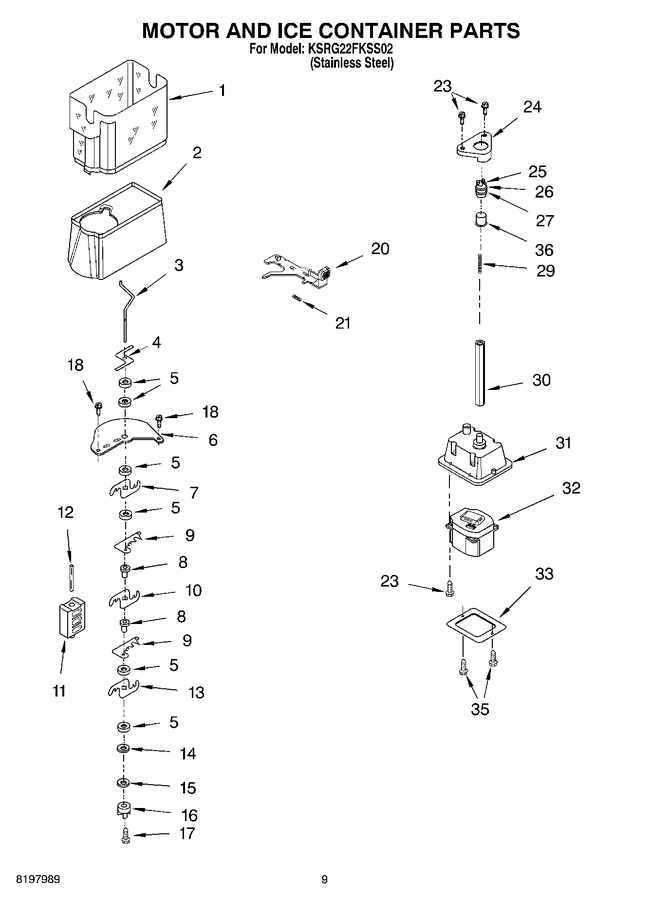

06 - Motor And Ice Container


07 - Refrigerator Door


08 - Freezer Door


09 - Dispenser Front


10 - Unit


11 - Ice Maker


12 - Control, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2212302		Ice Bin		Appelez-nous	-
2	2212301		Crusher Bin		Appelez-nous	-
3	2212342		Auger		Appelez-nous	-
4	2212382		Blade, Stirring		Appelez-nous	-
5	WP1119007		Spacer, Flat (6)   (Replaces: 1119007)				$ 14.77
6	2212307		Cover, Crusher		Appelez-nous	-
7	W10278733		Blade, Rotary   (Replaces: 1119013)				$ 91.00
8	WP1119005		Spacer, Step (2)   (Replaces: 1119005)				$ 11.74
9	2198601		Blade, Fixed		Appelez-nous	-
10	W10278732		Blade, Rotary   (Replaces: 1119012)				$ 91.00
11	2198602		Block, Blade		Appelez-nous	-
12	489229		Roll Pin				$ 48.47
13	W10278731		Blade, Rotary   (Replaces: 1119006)				$ 90.87
14	489235		Washer, Plain				$ 8.05
15	WP2198661		Washer, Coupling   (Replaces: 2198661)				$ 11.45
16	WP2220457		Coupling   (Replaces: 2198604)			Immediately	$ 35.92
17	WP8281164		Screw   (Replaces: 8281164)				$ 11.33
18	WP3400065		Screw   (Replaces: 3400065)			Immediately	$ 8.18
20	2212308		Latch, Bin		Appelez-nous	-
21	WP2198608		Spring, Latch   (Replaces: 2198608)				$ 7.55
23	WP8281163		Screw   (Replaces: 8281163)			Immediately	$ 10.70
24	2212369		Holder				$ 22.63
25	WP2220458		Coupling, Bottom   (Replaces: 2198627)			Immediately	$ 41.04
26	WP2198628		Seal   (Replaces: 2198628)			Immediately	$ 12.57
27	WP2212370		Washer   (Replaces: 2212370)				$ 25.35
29	WP2188917		Spring   (Replaces: 999536)				$ 105.19
30	2198624		Drive Shaft		Appelez-nous	-
31	2212304		Enclosure, Motor		Appelez-nous	-
32	2212363		Dispenser, Motor				$ 176.95
33	2212305		Cover		Appelez-nous	-
35	WP489478		Screw   (Replaces: 489478)				$ 8.18
36	WP2212365		Sleeve, Coupling   (Replaces: 2212365)				$ 31.51
