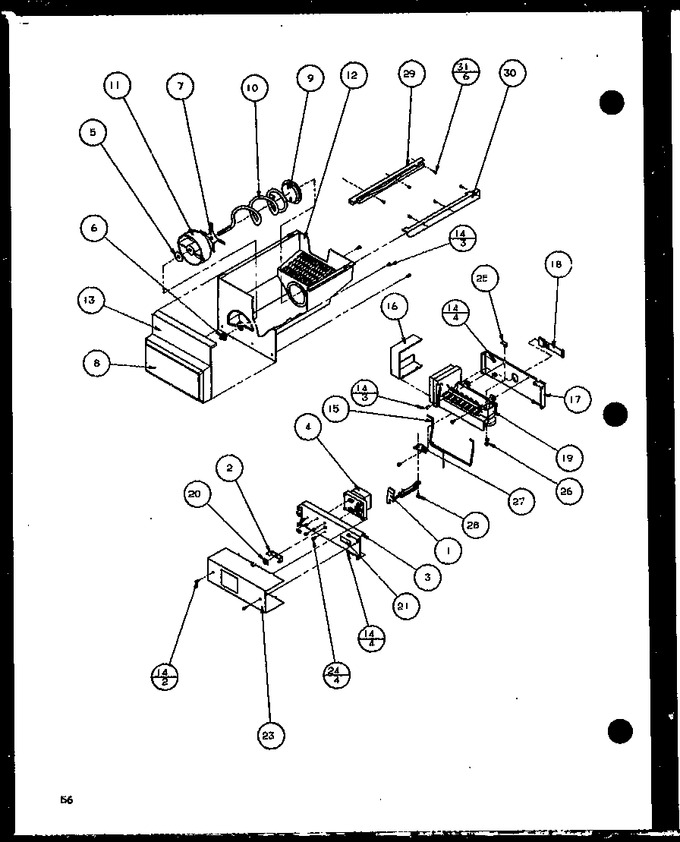

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	C8980402		I.m. Shut Off Assy		Appelez-nous	-
2	D7749501		Helix		Appelez-nous	-
3	D7749205		Support,auger Motor		Appelez-nous	-
4	D7749301		Motor-auger		Appelez-nous	-
5	A1061701		Washer		Appelez-nous	-
6	B8385101		Nut-helix		Appelez-nous	-
7	C8964101		Bar, Breaker		Appelez-nous	-
8	10099703		Insert Bkt Cfc 113		Appelez-nous	-
9	WPD7749401		Cap, Helix End   (Replaces: D7749401)				$ 27.63
10	D7749501		Helix		Appelez-nous	-
11	D7749601		Wheel Lift		Appelez-nous	-
12	D7749707		Bucket, Ice V		Appelez-nous	-
13	D7749802		Front, Bucket		Appelez-nous	-
14	67006425		Screw, Sm   (Replaces: M0209616)			Immediately	$ 6.95
15	D7877001		Arm,ice Maker Shut Off		Appelez-nous	-
16	D7820401		Cover Im		Appelez-nous	-
17	D7821003		Support-im		Appelez-nous	-
18	D7824601		Harness				$ 57.59
19	D7824706Q		Ice Maker   (Replaces: D7824701)			Immediately	$ 167.35
20	M0120501		Nut		Appelez-nous	-
21	A3030305		Gasket-per Ft		Appelez-nous	-
23	D7788811		Cover,auger Mtr-e Ct		Appelez-nous	-
24	WP489128		Screw   (Replaces: M0253516)				$ 10.88
25	B5720301		Clip		Appelez-nous	-
26	WP628379		Clip, Thermal Fuse   (Replaces: B8389801)				$ 10.57
27	B8391801		Bracket, I/m		Appelez-nous	-
28	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.00
29	67005375		Glide-l Fz   (Replaces: D7849903)				$ 297.92
30	D7849904		Glide, Freezer Rh		Appelez-nous	-
31	M0213529		Screw		Appelez-nous	-
