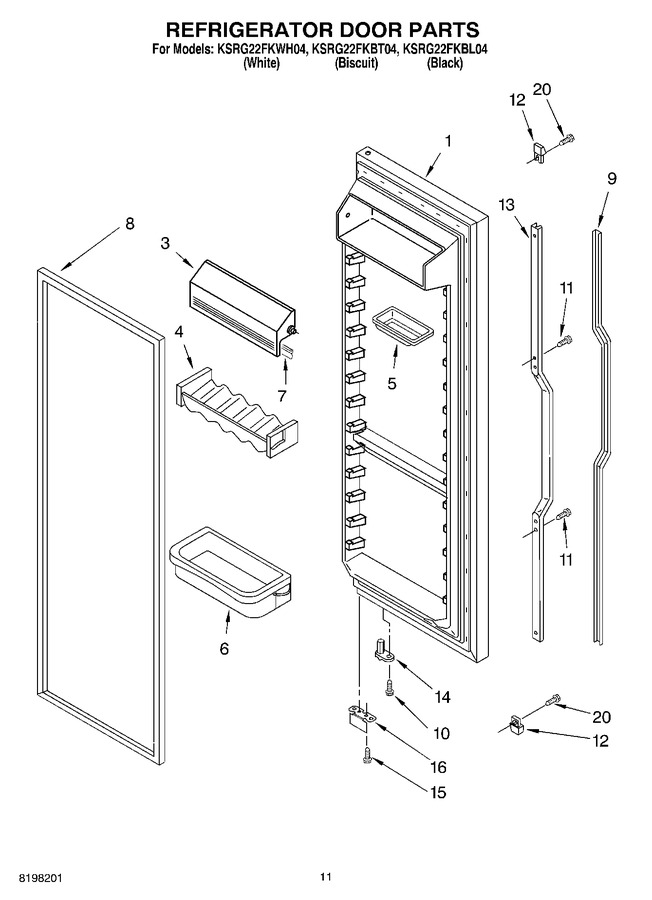

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2207330W		Refrigerator Door (includes Item No.8) (white)		Appelez-nous	-
1	2207330T		Refrigerator Door (includes Item No.8) (biscuit)		Appelez-nous	-
1	2207330B		Refrigerator Door (includes Item No.8) (black)		Appelez-nous	-
3	2182399		Door, Compartment		Appelez-nous	-
4	2193409		Beverage Holder				$ 48.13
5	2165792		Dish, Butter		Appelez-nous	-
6	2171063		Shelf Bin (3)		Appelez-nous	-
7	2159124		Gasket		Appelez-nous	-
8	2159081		Door Gasket, Magnetic (black)   (Replaces: 2221311)				$ 335.58
8	2159073		Door Gasket, Magnetic (mist Beige)   (Replaces: 2221300)				$ 333.19
9	2173832		Insert, Handle (black)		Appelez-nous	-
9	2173830		Insert, Handle (white)		Appelez-nous	-
9	2200434		Insert, Handle (biscuit)		Appelez-nous	-
10	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
11	WP489463		Screw   (Replaces: 489463)				$ 8.25
12	2194778W		End Cap (white)		Appelez-nous	-
12	2194778B		End Cap (black)		Appelez-nous	-
12	2194778T		End Cap (biscuit)		Appelez-nous	-
13	2194776W		Retainer, Handle (white)		Appelez-nous	-
13	2194776T		Retainer, Handle (biscuit)		Appelez-nous	-
13	2194776B		Retainer, Handle (black)		Appelez-nous	-
14	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 6.39
15	WP489483		Screw   (Replaces: 489420)				$ 11.41
16	WP2206629B		Bracket, Door Stop (black)   (Replaces: 2206629B)				$ 42.79
16	WP2206629B		Bracket, Door Stop (chrome)   (Replaces: 2206629)				$ 42.79
20	WP3400852		Screw   (Replaces: 3400852)				$ 10.33
