View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

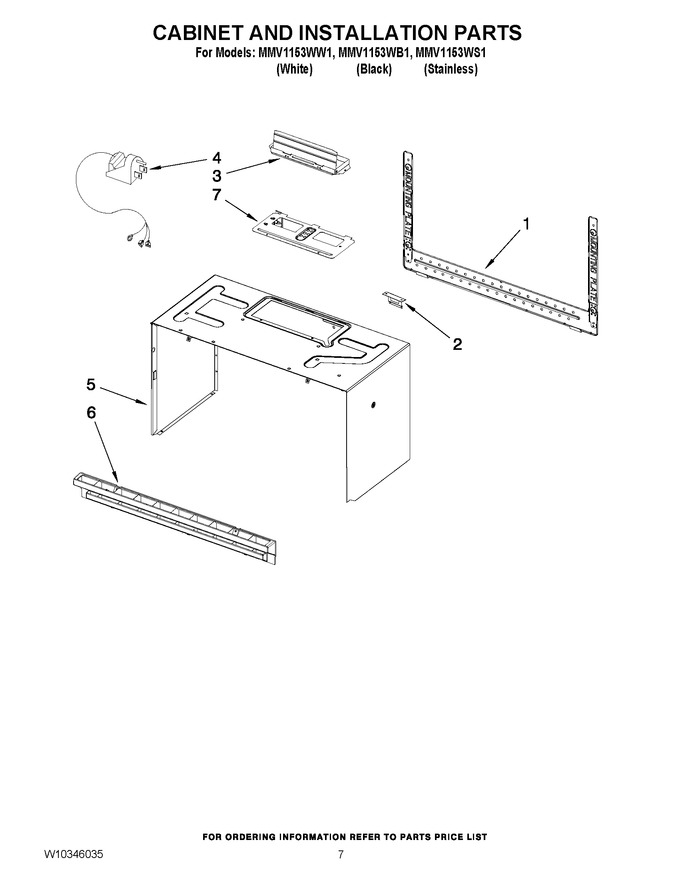

01 - Control Panel Parts
02 - Door Parts
03 - Interior And Ventilation Parts
04 - Air Flow Parts
05 - Turntable Parts
06 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10269225 | Plate, Mounting (Replaces: W10269225) |
|
$ 80.73 | |||||
| 2 | 8206385 | Support, Wire Clip |
|
$ 37.20 | |||||
| 3 | W10843943 | Damper Assembly (Replaces: 8206442) |
|
Immediately | $ 73.04 | ||||
| 4 | W10708076 | Cord, Power (Replaces: W10269470) |
|
$ 21.56 | |||||
| 5 | W10269453 | Case, Outer (white) |
|
$ 117.00 | |||||
| 5 | W10269454 | Case, Outer (black) |
|
$ 126.39 | |||||
| 6 | W10269471 | Grille, Vent (white) |
|
Immediately | $ 115.23 | ||||
| 6 | W10259625 | Grille, Vent (black) |
|
Immediately | $ 74.78 | ||||
| 7 | W10210832 | Plate, Damper |
|
$ 6.68 | |||||
| NI | W10821385 | Installation, Hardware (Replaces: 8206614) |
|
Immediately | $ 103.72 | ||||
| NI | 8205871 | Template, Upper |
|
$ 24.66 | |||||
| NI | WP8169704 | Screw, Top Mountng (Replaces: 8169704) |
|
Immediately | $ 13.35 | ||||
| NI | W10333875 | Main Harness |
|
- | |||||
| NI | W10163438 | Ground Wire Assy |
|
- | |||||
| NI | W10539841 | Hdlmp/tt Wire Assy (Replaces: W10269479) |
|
$ 20.98 | |||||
| NI | W10539842 | Hv Trnsfmr Wr Assy (Replaces: W10163436) |
|
$ 16.70 | |||||
| NI | W10470168 | Harness Wire, Ntc (Replaces: W10163439) |
|
$ 42.74 |
