SELECT A DIAGRAM

01 - Control Panel Parts


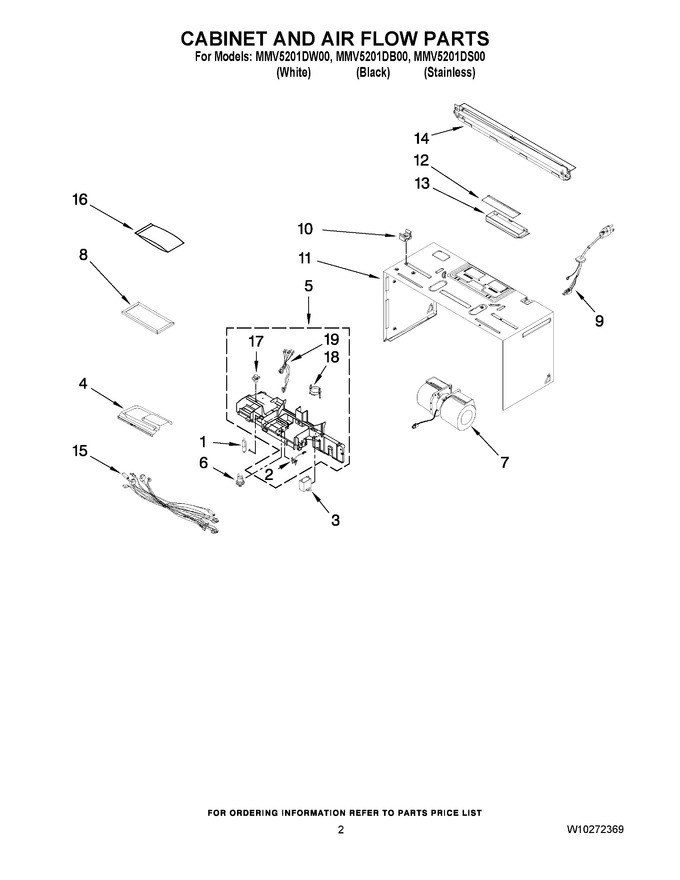

02 - Cabinet And Air Flow Parts


03 - Interior And Ventilation Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4713-001165		Lamp			Immediately	$ 37.00
2	DE47-00032B		Holder, Lamp				$ 38.34
3	DE59-50002A		Capacitor-motor			Immediately	$ 30.38
4	W10250842		Cover, Lamp		Appelez-nous	-
5	DE97-00635B		Assy, Duct Upper		Appelez-nous	-
6	555555		Thermostat   (Replaces: DE47-20059A)				$ 168.82
7	W10181452		Motor, Fan Assy				$ 189.00
8	555555		Filter-charcoal   (Replaces: DE63-00367D)				$ 168.82
9	DE96-00218A		Cord, Power				$ 87.50
10	DE92-90508A		Holder Nut, Assy			Immediately	$ 19.53
11	W10187744		Case, Outer (black)				$ 182.57
11	W10192096		Case, Outer (white)				$ 182.70
12	W10197773		Plate, Damper				$ 29.38
13	DE72-40022A		Damper, Assembly				$ 13.41
14	555555		Plate-mounting   (Replaces: DE70-00378A)				$ 168.82
15	W10258269		Main Harness		Appelez-nous	-
16	DE92-90505E		Install, Hardware				$ 46.00
17	DE32-60011A		Sensor-gas			Immediately	$ 95.86
18	DE61-00525A		Holder-sensor				$ 3.27
19	DE39-40678A		Harness, Sensor				$ 32.34
NI	W10188741		Template, Wall		Appelez-nous	-
NI	W10188240		Template, Upper				$ 5.01

    View Diagram in Separate Window       Print Part List
