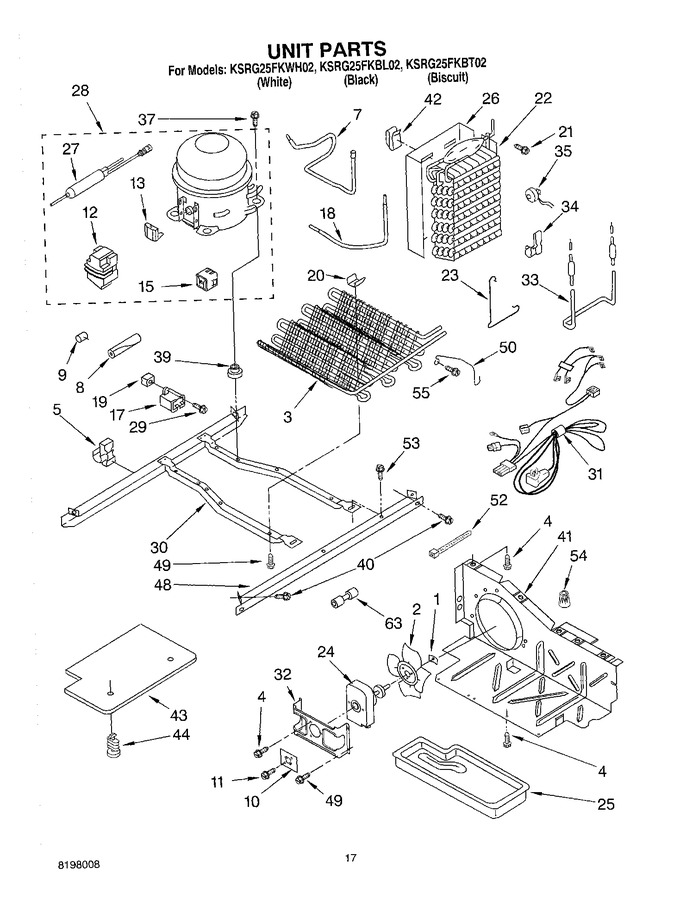

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP486692 | Speed Nut (Replaces: 486692) |
|
$ 7.59 | |||||
| 2 | 2190685 | Fan, Blade |
|
$ 52.00 | |||||
| 3 | 2204484 | Condenser Assembly |
|
- | |||||
| 4 | WP489464 | Screw (Replaces: 489464) |
|
Immediately | $ 7.54 | ||||
| 5 | 2208280 | Clip, Wire & Tube |
|
- | |||||
| 7 | 2204239 | Tube, Suction |
|
- | |||||
| 8 | W11751592 | Sleeve (Replaces: 2161302) |
|
Immediately | $ 19.19 | ||||
| 9 | WP2158826 | Dampener (Replaces: 2158826) |
|
$ 1.64 | |||||
| 10 | 2216997 | Bracket, Insert |
|
- | |||||
| 11 | 8281160 | Screw |
|
- | |||||
| 12 | WP2162358 | Cover (service Compressor Only) (Replaces: 4387731) |
|
$ 85.76 | |||||
| 13 | WP4387835 | Overload ((service, Includes Relay)) (Replaces: 4387835) |
|
$ 159.38 | |||||
| 15 | 2212194 | Start Device, Combination (start Relay And Overload) For Production Compressor |
|
- | |||||
| 17 | WP4387764 | Capacitor (service) (Replaces: 4387764) |
|
$ 167.30 | |||||
| 17 | WPW10662129 | Capacitor ((production) (Replaces: 999532) |
|
Immediately | $ 52.97 | ||||
| 18 | 2211760 | Tube, Condenser To Heat Loop |
|
- | |||||
| 19 | 509812 | Screw Grommet |
|
- | |||||
| 20 | W10683556 | Clip, Condenser (Replaces: 2216914) |
|
$ 17.44 | |||||
| 21 | WP489478 | Screw (Replaces: 489478) |
|
$ 7.36 | |||||
| 22 | WP2188823 | Evaporator (Replaces: 2209611) |
|
Immediately | $ 343.34 | ||||
| 23 | 2161324 | Clamp |
|
- | |||||
| 24 | W10124096 | Fan, Motor (Replaces: 2206005) |
|
Immediately | $ 146.83 | ||||
| 25 | WPW10614158 | Tray, Evaporator (Replaces: 1105523) |
|
Immediately | $ 142.34 | ||||
| 26 | 2149294 | Heat Shield |
|
- | |||||
| 27 | W10843121 | Drier (Replaces: 2199167) |
|
Immediately | $ 51.42 | ||||
| 28 | W10309994 | Compressor (includes Items 12, 13, 15, 17, 27 & 38) (also Order 876765 Tube Kit) (Replaces: 2212192) |
|
Immediately | $ 579.20 | ||||
| 29 | W11693756 | Screw (Replaces: 488687) |
|
Immediately | $ 13.28 | ||||
| 30 | 2304904 | Unit Mounting Frame (Replaces: 2157397) |
|
- | |||||
| 31 | 2187425 | Unit, Harness |
|
- | |||||
| 32 | WP2181929 | Fan, Motor Bracket (Replaces: 2181929) |
|
$ 11.64 | |||||
| 33 | WP2323198 | Heater, Defrost (Replaces: 2188175) |
|
Immediately | $ 81.63 | ||||
| 34 | 2161330 | Clip |
|
- | |||||
| 35 | WPW10225581 | Bi-metal, Defrost (Replaces: 2196155) |
|
Immediately | $ 45.69 | ||||
| 37 | W11661574 | Screw (Replaces: 489473) |
|
$ 12.86 | |||||
| 39 | W11661108 | Grommet (4) (production) (Replaces: 2183042) |
|
$ 13.69 | |||||
| 39 | WP4387558 | Grommet (4) (service) (Replaces: 4387558) |
|
$ 6.57 | |||||
| 40 | 489340 | Screw |
|
- | |||||
| 41 | W10896764 | Air Baffle (Replaces: 2196202) |
|
$ 91.08 | |||||
| 42 | 2155547 | Clip, Heat Shield |
|
- | |||||
| 43 | 2206281 | Unit Cover, Bottom |
|
- | |||||
| 44 | 489396 | Clip |
|
$ 10.13 | |||||
| 48 | 2305374 | Unit Mounting Rail (Replaces: 1127911) |
|
$ 76.20 | |||||
| 49 | W11544659 | Screw (Replaces: 8281232) |
|
$ 12.92 | |||||
| 50 | 2186495 | Guard, Fan |
|
- | |||||
| 52 | WPW10339879 | Strap (Replaces: 2172840) |
|
$ 7.47 | |||||
| 53 | WP489427 | Screw (Replaces: 489427) |
|
$ 7.06 | |||||
| 54 | 227991 | Wire Connector |
|
- | |||||
| 55 | WPW10141625 | Screw (Replaces: 488649) |
|
$ 20.00 | |||||
| 63 | 978030 | Valve, Access (3/4``) |
|
$ 123.53 | |||||
| 63 | 876764 | Valve, Access(3/16``) |
|
Immediately | $ 86.33 | ||||
| 63 | WP978025 | Valve, Access (1/4``) (Replaces: 978025) |
|
Immediately | $ 99.46 | ||||
| 63 | WP4373559 | Connector, Water Tube (Replaces: 2209709) |
|
$ 73.10 | |||||
| 63 | N/A | Following Parts Not Illustrated And Optional Parts Not Included |
|
- | |||||
| 63 | 978026 | Valve, Access (5/16``) |
|
Immediately | $ 121.04 | ||||
| 63 | SF5538 | Valve, Access (3/8``) (Replaces: 978027) |
|
$ 16.79 | |||||
| 63 | 978028 | Valve, Access (1/2) |
|
- | |||||
| 63 | 978029 | Valve Access (5/8``) |
|
$ 93.85 |
