Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 2219830S Refrigerator Door (includes No.7) (stainless Steel) Appelez-nous -
3 2182399 Door, Compartment Appelez-nous -
4 2193409 Beverage Holder Special Order $ 48.13

5 2165792 Butter, Dish Appelez-nous -
6 2204454S Handle (stainless Steel) Appelez-nous -
7 2159083 Door Gasket, Magnetic (black)   (Replaces: 2221313) Special Order $ 251.49

9 98654 Screw Appelez-nous -
10 2203690 Stud, Handle Appelez-nous -
11 WP489463 Screw   (Replaces: 489463) Special Order $ 8.25

12 WP2182179 Door Closer, Upper Cam   (Replaces: 2182178) In-Stock Immediately $ 6.39

13 2159124 Gasket Appelez-nous -
14 WP489483 Screw   (Replaces: 489420) Special Order $ 11.41

15 WP2206629B Bracket, Door Stop (black)   (Replaces: 2206629B) Special Order $ 42.79

16 2171063 Shelf Bin (4) Appelez-nous -
17 WP3400012 Screw   (Replaces: 3400012) Special Order $ 8.26

18 WP2182181 Thimble, Top   (Replaces: 2182180) Special Order $ 8.15


    View Diagram in Separate Window     Print Icon   Print Part List

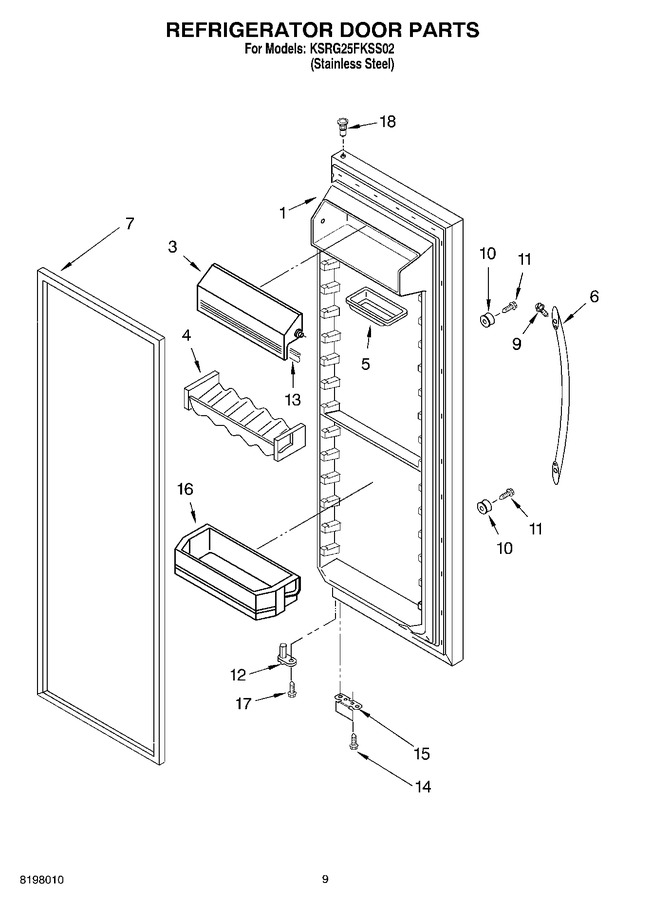

Diagram for KSRG25FKSS02
