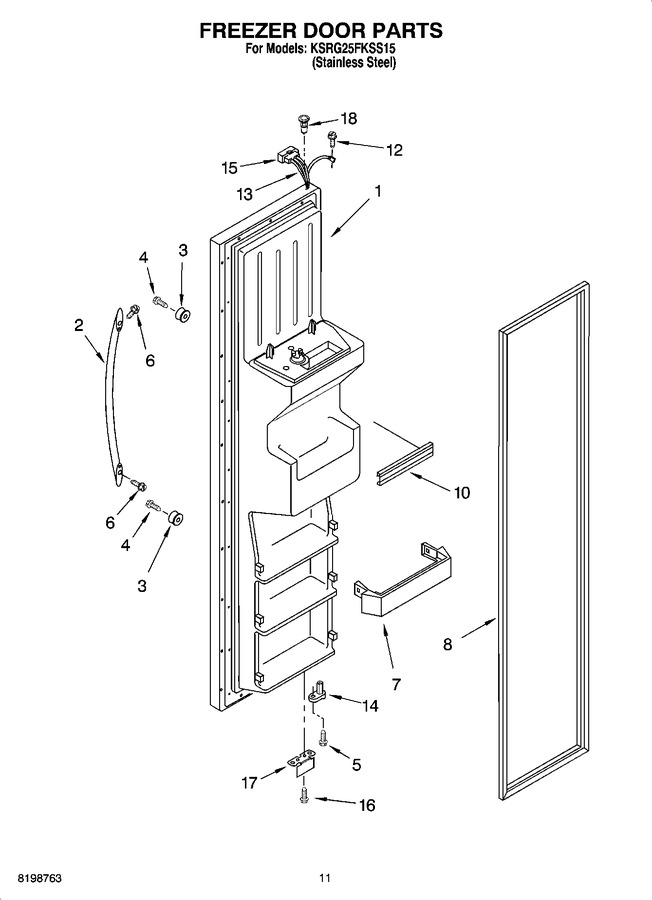

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2216569S		Freezer Door (includes 8 And Dispenser Front Parts) (stainless Steel)		Appelez-nous	-
2	2257001		Handle (stainless Steel)		Appelez-nous	-
3	2203690		Stud, Handle		Appelez-nous	-
4	WP488163		Screw   (Replaces: 488208)				$ 7.54
5	WP3400012		Screw   (Replaces: 3400012)				$ 7.82
6	98654		Screw		Appelez-nous	-
7	2171070		Shelf Bin (4)		Appelez-nous	-
8	2159082		Door Gasket, Magnetic (black)   (Replaces: 2221314)				$ 316.66
10	WPW10307490		Trim, Door Shelf   (Replaces: 2219982)			Immediately	$ 23.11
12	WP489128		Screw   (Replaces: 488500)				$ 10.88
13	2206178		Wire Harness				$ 36.28
14	WP2182179		Door Closer, Upper Cam   (Replaces: 2182179)			Immediately	$ 6.39
15	WP2154473		Connector   (Replaces: 2154473)				$ 23.65
16	WP489483		Screw   (Replaces: 489420)				$ 10.87
17	WP2206629B		Bracket, Door Stop (black)   (Replaces: 2206629B)				$ 40.03
18	WP2182181		Thimble, Top   (Replaces: 2182181)				$ 7.76
