Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 B8324801 Clip Ground Appelez-nous -
2 B8386602 Gasket Appelez-nous -
3 C8976102 Gasket, Air Block Appelez-nous -
4 D7786902 Cover, M.k. Air Appelez-nous -
5 D7865902 Cover Evap Appelez-nous -
6 D7821101 Back, Inner Frz Appelez-nous -
7 D7868302 Harness- Inner Liner Appelez-nous -
8 D7838301 Cover, Supply Air Appelez-nous -
9 WP489464 Screw   (Replaces: M0211217) In-Stock Immediately $ 7.83

10 WP489399 Screw   (Replaces: M0232903) Special Order $ 6.95

11 WPW10339879 Tie   (Replaces: M0321202) Special Order $ 7.90

12 M0322202 Tie Wire Appelez-nous -
13 67006425 Screw   (Replaces: M0230917) In-Stock Immediately $ 6.95

14 WP98165 Screw, Sm   (Replaces: M0211018) Special Order $ 8.00

15 A3127410 Ext, Fill Tube Appelez-nous -
16 10098801 Rivet Appelez-nous -
17 B5757707 Gasket, Foam Appelez-nous -
18 D7865802 Shield Appelez-nous -
19 D7850202 Drip Tray Pnt. Appelez-nous -
20 M0580003 Grommet Appelez-nous -
21 B8327901 Gasket, Evap. Appelez-nous -
22 B8385502 Block-lh Air Coil Appelez-nous -
23 B8385601 Block P M Air Coil Appelez-nous -
24 C8972007 Kit, Thermostat Appelez-nous -
25 C8983101 Clip, Evap. Heater Appelez-nous -
26 D7872801 Heater, Defrost Special Order $ 67.23

27 R0170031 Assy,low Side-thin Wall Evap Appelez-nous -
28 WP2264462 Grommet   (Replaces: A1017202) In-Stock Immediately $ 43.97

29 A1047901 Shim Appelez-nous -
30 C8795501 Fan-evap Appelez-nous -
31 C8881301 Brkt Evap Fan Appelez-nous -
32 WPC8891605 Motor, Evap Fan   (Replaces: C8891601) Special Order $ 328.40

33 D7767701 Bracket, Motor Shroud Appelez-nous -
34 WP12990527 Screw   (Replaces: M0219916) In-Stock Immediately $ 7.94

35 M0580002 Grommet A Appelez-nous -
36 C8983701 Thermistor Domestic Appelez-nous -
37 WP90767 Screw, Sm   (Replaces: M0211016) In-Stock Immediately $ 7.82


    View Diagram in Separate Window     Print Icon   Print Part List

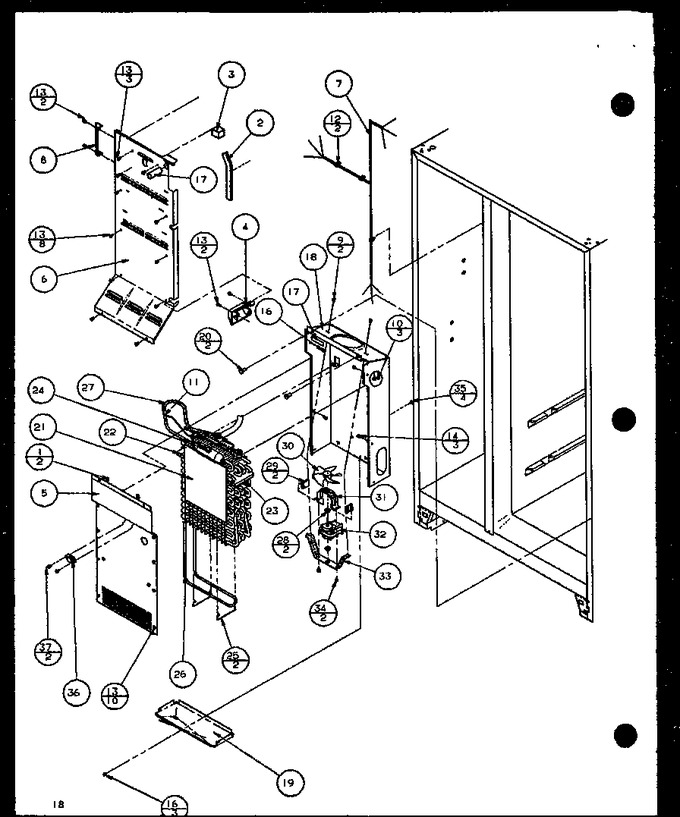

Diagram for 36588 (BOM: P1108402W)
