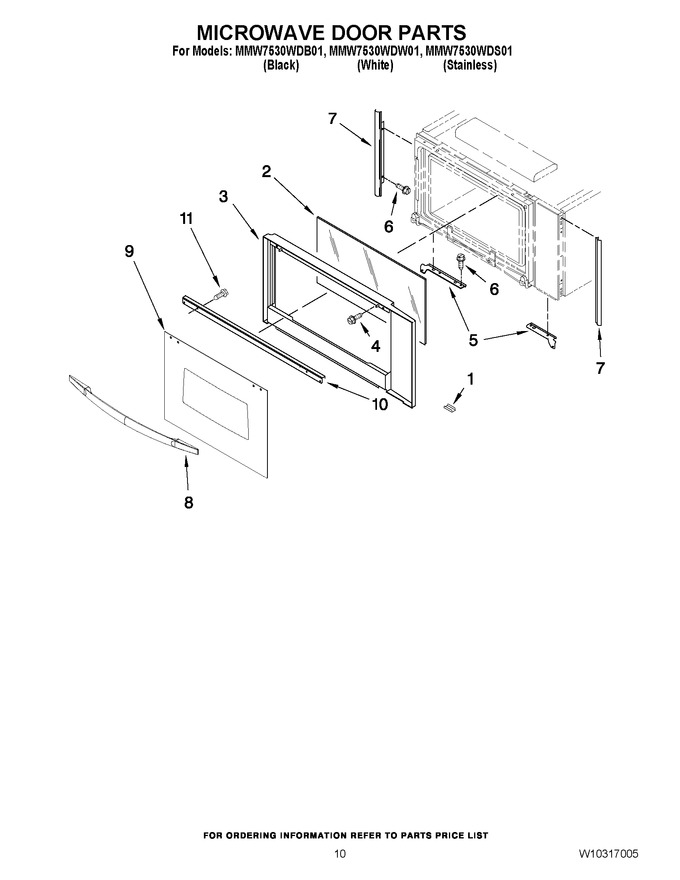

08 - Microwave Door Parts


09 - Top Venting Parts


10 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10318998		Retainer, Glass (black)		Appelez-nous	-
1	W10158497		Retainer, Glass (stainless)				$ 5.65
1	W10318997		Retainer, Glass (white)		Appelez-nous	-
2	4450834		Glass, Middle		Appelez-nous	-
3	WP8303556		Frame-door   (Replaces: 8303556)				$ 265.47
4	WP4450038		Screw   (Replaces: 4450038)				$ 7.60
5	4449141		Bracket, Mounting (right)				$ 31.33
5	4449142		Bracket, Mounting (left)				$ 52.12
6	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.82
7	4449086		Filler, Side (left)				$ 36.10
7	4449083		Filler, Side (right)				$ 36.44
8	W10269408		Handle, Door (white)				$ 125.94
8	WPW10161708		Handle, Door (stainless)   (Replaces: W10161708)				$ 355.25
8	W10269407		Handle, Door (black)		Appelez-nous	-
9	W10270576		Glass, Outer (stainless)		Appelez-nous	-
9	W10268205		Glass, Outer (black)		Appelez-nous	-
9	W10268206		Glass, Outer (white)		Appelez-nous	-
10	W10268913		Bracket, Handle				$ 10.84
11	WPW10132940		Screw, 8-18 X 1.25   (Replaces: 3196184)				$ 9.44
